Description
Product Name: 16% Ventilation Steel Air-flow Raised Floor System in Bangladesh
Manufacturer: Atflor
Product Overview

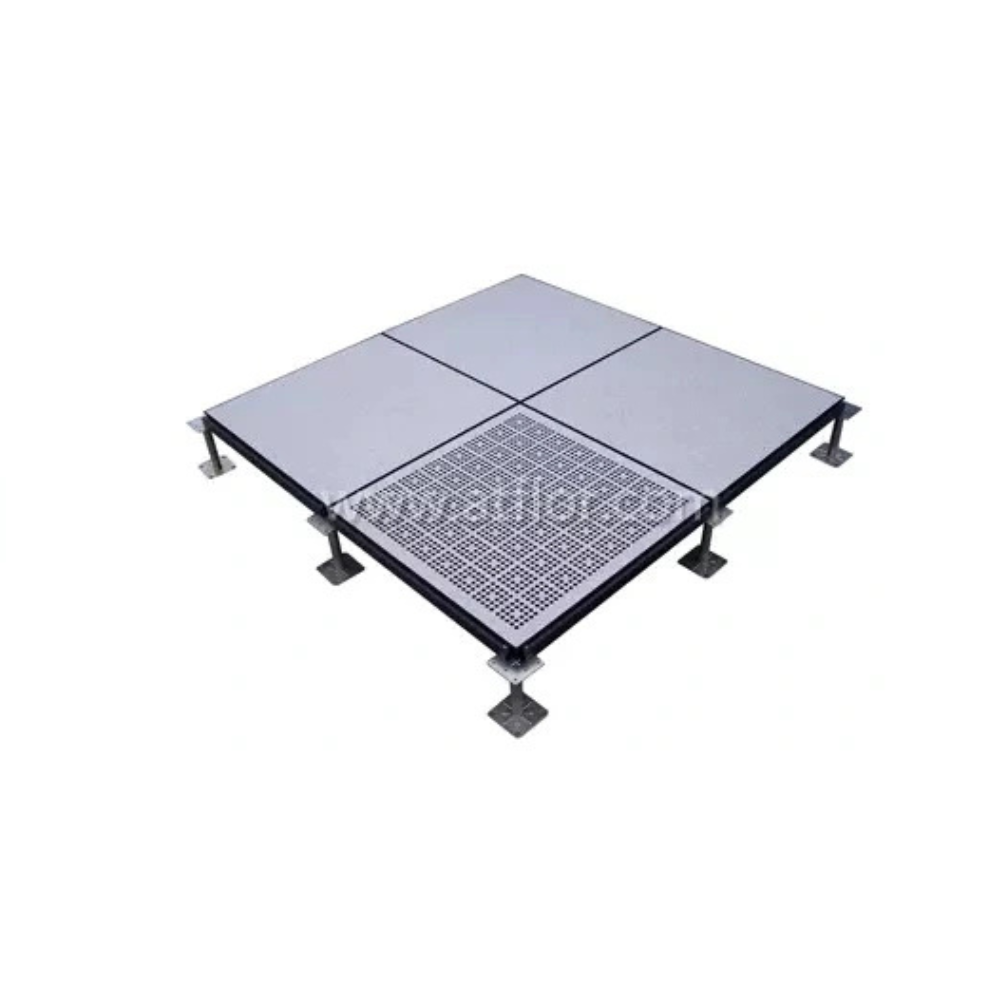

The 16% Ventilation Steel Air-flow Raised Floor System features full steel, HPL or PVC punched tiles with surface-punched panels made of SPCCID hard steel from Shanghai Bao steel. Furthermore, the system includes manual welding for the bottom square tube. Also called air-flow raised floor, ventilation raised floor, or perforated raised floor, it provides a ventilation rate ranging from 16% to 65% to satisfy different environmental requirements on purge. In addition, it delivers antistatic, fireproof, and dustproof performance.
Key Features
-
Panel Construction: Full steel, HPL or PVC punched tile and surface-punched panel constructed from SPCCID hard steel of Shanghai Bao steel. Additionally, it features manual welding for the bottom square tube, imported paint, and a conductive rim. Pedestals and stringers are pressure-formed with steel, utilizing a lead screw for height adjustment.
-
Alternative Nomenclature: Also called air-flow raised floor, ventilation raised floor, and perforated raised floor.
-
Functional Performance: Offers static prevention, fireproofing, and dustproofing.
-
Mechanical & Air-Flow Strength: Features manual welding for high mechanical strength, strong bearing capacity, and good shock-resistance. Moreover, it includes an integrated ventilation function with a 16% to 65% ventilation rate.
Characteristic Specifications
-
Preventative Performance: Prevent static; fireproof; dustproof.
-
Structural Integrity: Manual welding ensures high mechanical strength, strong bearing capacity, and good shock-resistance.
-
Ventilation Function: Possesses ventilation functionality with a 16% to 65% ventilation rate to satisfy different environmental requirements on purge.
-
Application Scope: Suited for computer rooms, network service rooms, monitor control centers, electronic workshops, clean rooms, dauntlessness chambers, and occasions requiring antistatic and air conditioning systems.
-
Dimensions & Materials: Size: 600 × 600 mm; Thickness: 35 mm; Material: all steel.
Technical Specification
| Component / Parameter | FS440 | FS662 | FS800 | FS1000 | FS1250 |
| Panel Size | $600 \times 600 \times 35 mm$ | $600 \times 600 \times 35 mm$ | $600 \times 600 \times 35 mm$ | $600 \times 600 \times 35 mm$ | $600 \times 600 \times 35 mm$ |
| Fire Performance | Class A | Class A | Class A | Class A | Class A |
| Concentrated Load | $\ge 440$ | $\ge 662$ | $\ge 800$ | $\ge 1000$ | $\ge 1250$ |
| Impact Load (N) | $\ge 1960$ | $\ge 2950$ | $\ge 3350$ | $\ge 4550$ | $\ge 5560$ |
| Ultimate Load (N) | $\ge 200$ | $\ge 301$ | $\ge 363$ | $\ge 450$ | $\ge 567$ |
| Uniform Load (N/m²) | $\ge 295$ | $\ge 445$ | $\ge 536$ | $\ge 670$ | $\ge 780$ |
| Rolling Load – 10 times (N) | $\ge 5880$ | $\ge 8850$ | $\ge 11250$ | $\ge 13350$ | $\ge 16680$ |
| Rolling Load – 100,000 times (N) | $\ge 9272$ | $\ge 1250$ | $\ge 16100$ | $\ge 23000$ | $\ge 33000$ |
| LBNKG (10 times / 100,000 times) | 1958 / 1566 | 2946 / 2356 | 3560 / 2670 | 4450 / 3560 | 5560 / 4450 |
Conclusion
The 16% Ventilation Steel Air-flow Raised Floor System combines full steel and SPCCID hard steel construction with HPL or PVC punched tiles. Additionally, it features a ventilation rate of 16% to 65%, antistatic capabilities, dustproof properties, and mechanical durability for computer rooms, clean rooms, control centers, and electronic workshops.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
