Product Name: 45% Ventilation Steel Air-flow Raised Floor System in Bangladesh
Manufacturer: Atflor
Product Overview

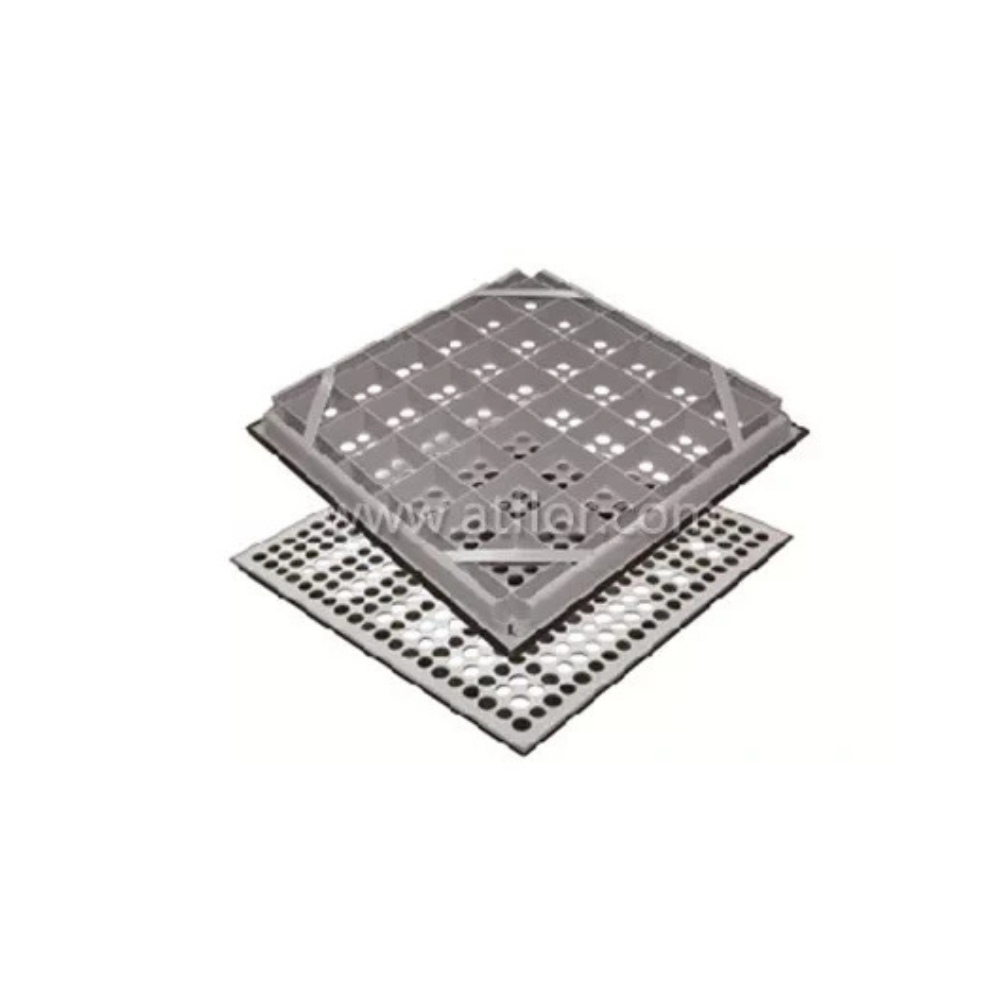

The 45% Ventilation Steel Air-flow Raised Floor System (Product Types: FS440, FS662, FS800, FS1000, and FS1250) features a full steel, surface-punched panel made of SPCCID hard steel from Shanghai Bao steel, with manual welding for the bottom square tube. Designed with a ventilation rate ranging from 16% to 65% to satisfy different environmental requirements on purge, it provides antistatic, fireproof, and dustproof performance for computer rooms, network service rooms, and monitor control centers.
Key Features
-
Panel Construction: Full steel, surface-punched panel constructed from SPCCID hard steel of Shanghai Bao steel, featuring manual welding for the bottom square tube, imported paint, and a conductive rim. Pedestals and stringers are pressure-formed with steel, utilizing a lead screw for height adjustment.
-
Surface Compatibility: Compatible with widely used brand top tiles such as PVC and HPL.
-
Functional Performance: Offers high recyclability, convenient removal, cost savings, static prevention, fireproofing, and dustproofing.
-
Mechanical & Air-Flow Strength: Features manual welding for high mechanical strength, strong bearing capacity, good shock-resistance, and an integrated ventilation function ranging from 16% to 65%.
Characteristic Specifications
-
Preventative Performance: Effectively prevents static, fireproof, and dustproof.
-
Structural Integrity: Manual welding, high mechanical strength, strong bearing capacity, and good shock-resistance.
-
Ventilation Function: Possesses ventilation functionality with a 16% to 65% ventilation rate to satisfy different environmental requirements on purge.
-
Application Scope: Suited for all manners of computer rooms, network service rooms, monitor control centers, electronic workshops, clean rooms, dauntlessness chambers, and occasions requiring antistatic and air conditioning systems.
-
Dimensions & Materials: Size: 600 × 600 mm; Thickness: 50 mm; Material: all steel. The technical specifications list a panel size of 600 × 600 × 45 mm. Suitable for 600 × 600 × 35 mm steel raised floor system.
Technical Specification
| Component / Parameter | FS440 | FS662 | FS800 | FS1000 | FS1250 |
| Panel Size | $600 \times 600 \times 45 mm$ | $600 \times 600 \times 45 mm$ | $600 \times 600 \times 45 mm$ | $600 \times 600 \times 45 mm$ | $600 \times 600 \times 45 mm$ |
| Fire Performance | Class A | Class A | Class A | Class A | Class A |
| Concentrated Load | $\ge 440$ | $\ge 662$ | $\ge 800$ | $\ge 1000$ | $\ge 1250$ |
| Impact Load (N) | $\ge 1960$ | $\ge 2950$ | $\ge 3350$ | $\ge 4550$ | $\ge 5560$ |
| Ultimate Load (N) | $\ge 200$ | $\ge 301$ | $\ge 363$ | $\ge 450$ | $\ge 567$ |
| Uniform Load (N/m²) | $\ge 295$ | $\ge 445$ | $\ge 536$ | $\ge 670$ | $\ge 780$ |
| Rolling Load – 10 times (N) | $\ge 5880$ | $\ge 8850$ | $\ge 11250$ | $\ge 13350$ | $\ge 16680$ |
| Rolling Load – 100,000 times (N) | $\ge 9272$ | $\ge 1250$ | $\ge 16100$ | $\ge 23000$ | $\ge 33000$ |
| LBNKG (10 times / 100,000 times) | 1958 / 1566 | 2946 / 2356 | 3560 / 2670 | 4450 / 3560 | 5560 / 4450 |
Conclusion
The 45% Ventilation Steel Air-flow Raised Floor System combines full steel SPCCID hard steel construction with a functional ventilation rate of 16% to 65%, Class A fire performance, and load parameters across the FS440 to FS1250 series. Featuring antistatic, dustproof, and mechanical properties, it provides a raised-floor infrastructure solution for computer rooms, clean rooms, control centers, and electronic workshops.
