ABB 3P MC AX80-30-10-80 Price in Bangladesh

Description

Product Name: ABB 3P MC AX80-30-10-80 Price in Bangladesh

Manufacturer: ABB

Product Overview

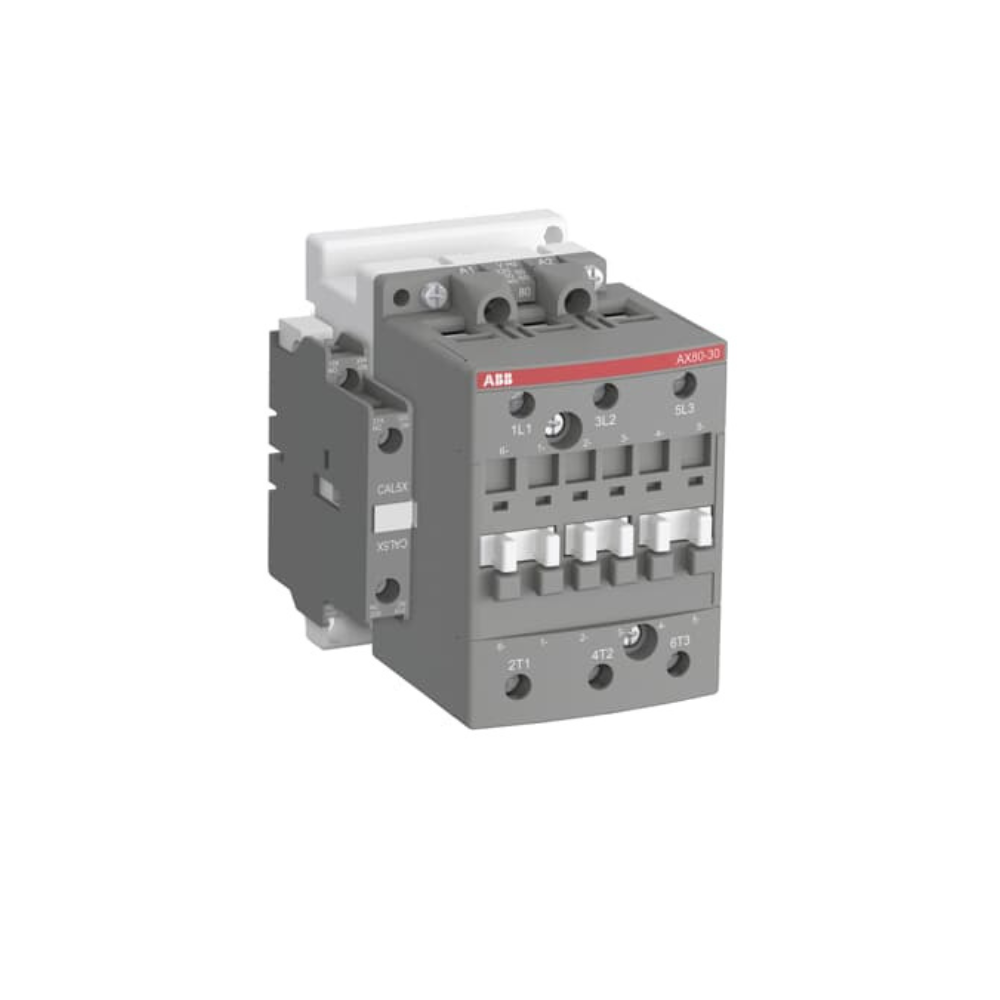

The ABB AX80-30-10-80 is a robust 3-pole block contactor from the ABB AX series, designed primarily for controlling 3-phase motors and power switching applications up to 690 V AC. Featuring an AC-operated coil with a control voltage of 220–230 V at 50 Hz and 230–240 V at 60 Hz, it is ideal for controlling motors up to 37 kW / 400 V AC (AC-3) and switching power circuits up to 125 A (AC-1 at 690 V, 40 °C).

Key Features and Benefits

• Reliable AC Control Operation: Built with a standard AC-operated coil interface (220–230 V at 50 Hz / 230–240 V at 60 Hz) for stable switching performance in standard industrial control panels.

• High Switching Capacity: Efficiently handles heavy-duty industrial loads, rated for up to 37 kW at 400 V for AC-3 motor applications and 125 A at 690 V, 40 °C for AC-1 operation.

• Built-in Auxiliary Contacts: Equipped with integrated auxiliary contacts for essential feedback integration and control circuit configuration.

• Compact and Durable Build: Engineered for high switching frequency (up to 600 cycles/hour for AC-3) to ensure dependable long-term performance in demanding environments.

Technical Specifications

• Product Line: ABB AX Series 3-Pole Contactors

• Model / Part Number: AX80-30-10-80 (1SBL411074R8011)

• Number of Poles: 3-Pole (3P)

• Main Contacts (NO / NC): 3 / 0

• Auxiliary Contacts (NO / NC): 1 / 1

• Rated Operational Voltage: Main Circuit 690 V

• Conventional Free-air Thermal Current (Ith): 125 A at 40 °C

• Rated Operational Current AC-1 (Ie): 125 A at 690 V, 40 °C

• Rated Operational Current AC-3 (Ie): 80 A at 380/400 V, 55 °C

• Rated Operational Power AC-3 (Pe): 37 kW at 380/400 V

• Rated Control Circuit Voltage (Uc): 220 … 230 V (50 Hz) / 230 … 240 V (60 Hz)

• Dimensions (H x W x D): 108 mm x 82 mm x 110 mm

• Product Net Weight: 1.05 kg

Ideal Applications

• Industrial Motor Control Centers (MCC) in Bangladesh

• Standard AC Motor Starters and Control Panels

• Factory Automation and Machinery Switchgear

• Commercial and Industrial Power Distribution Networks

Conclusion

Ultimately, the ABB 3P MC AX80-30-10-80 Magnetic Contactor offers reliable performance, dependable AC coil operation, and strong current-handling capabilities for industrial electrical systems in Bangladesh. It provides a cost-effective, high-quality solution for standard motor control and power management environments.

Contact Us

For pricing inquiries, stock availability, and bulk orders of industrial automation products in Bangladesh, get in touch with our team:

Phone: +8801737118246

Email: [email protected]
