ABB 4000A 75kA 4P ACB 690V Best Price in Bangladesh

Description

Product Name: ABB 4000A 75kA 4P ACB 690V Best Price in Bangladesh

Manufacturer: ABB

Product Overview

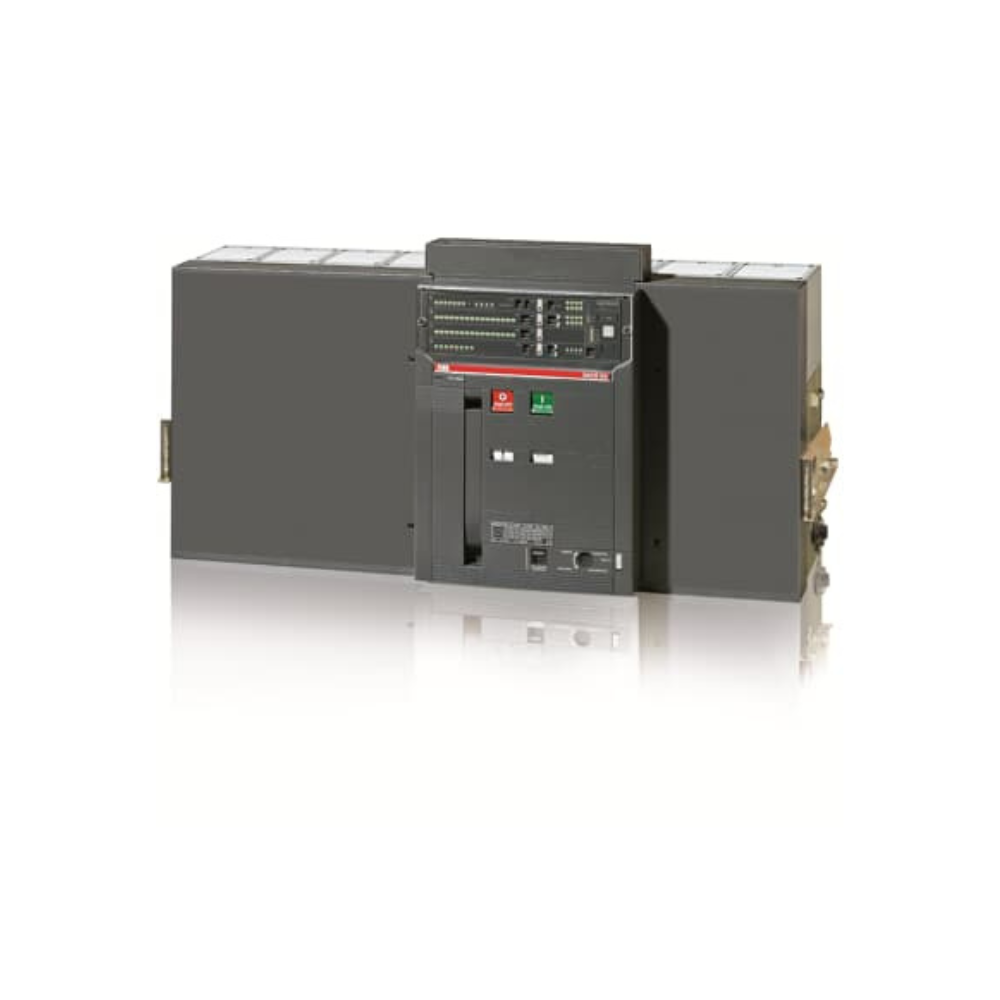

The ABB E4 4000 is a high-capacity 4-pole air circuit breaker designed for heavy-duty industrial power distribution systems and switchgear networks operating up to 690 V AC. Equipped with the PR121/P-LSIG electronic release unit, it is engineered for continuous uninterrupted currents up to 4000 A while providing reliable short-circuit protection and precise fault interruption according to IEC standards.

Key Features and Benefits

• High Continuous Current Capacity: Specifically built to handle massive continuous operational loads up to 4000 A for large-scale industrial and commercial power distribution infrastructures.

• Advanced Electronic Protection: Features the PR121/P-LSIG electronic release unit, ensuring reliable overcurrent coordination and protection.

• High Breaking Capacity: Certified under IEC standards with exceptional interrupting ratings up to 75 kA across all specified operational voltages up to 690 V AC.

• Robust Mechanical and Electrical Design: Engineered for high durability, supporting up to 5000 electrical cycles and 15000 mechanical cycles to ensure long-term reliability in continuous heavy-duty environments.

Technical Specifications

• Product Line: ABB SACE Emax Series Air Circuit Breakers (IEC Version)

• Product ID / Order Code: 1SDA056810R1

• Product Sub-type: E4

• Number of Poles: 4-Pole (4P)

• Release Type: Electronic (PR121/P-LSIG)

• Rated Operational Current ($I_e$): 4000 A

• Rated Uninterrupted Current ($I_u$): 4000 A

• Rated Voltage ($U_r$): 690 V AC (IEC)

• Short-Circuit Performance / Interrupting Ratings:

  • Rated Ultimate Short-Circuit Breaking Capacity ($I_{cu}$): 75 kA

  • Rated Service Short-Circuit Breaking Capacity ($I_{cs}$): 75 kA

  • Rated Short-Time Withstand Current ($I_{cw}$): 75 kA for 1 s / 3 s

• Voltage Breakdown ($I_{cu}$ / $I_{cs}$ up to 690 V AC):

  • 220 V AC → 75 kA

  • 230 V AC → 75 kA

  • 380 V AC → 75 kA

  • 400 V AC → 75 kA

  • 415 V AC → 75 kA

  • 440 V AC → 75 kA

  • 500 V AC → 75 kA

  • 660 V AC → 75 kA

  • 690 V AC → 75 kA

• Terminal Connection Type: Withdrawable Circuit-Breakers

• Dimensions (W x H x D): 684 mm x 461 mm x 396.5 mm

• Product Net Weight: 96 kg

Ideal Applications

• Main Low-Voltage (LV) Power Distribution Switchboards in Bangladesh

• Heavy Industrial Manufacturing Plants and Processing Units

• Large Commercial Complexes, High-Rises, and Infrastructure Substations

• Heavy-Duty Distribution Networks and Main Incoming Switchgear

Conclusion

Ultimately, the ABB 4000A 4-Pole Air Circuit Breaker delivers robust continuous current capability, advanced electronic trip unit protection, and high interrupting performance across its specified voltage ratings for demanding industrial power distribution networks.
