Product Name: ABB 3P MC AF750-30-11-70 Best Price in Bangladesh

Manufacturer: ABB

Product Overview

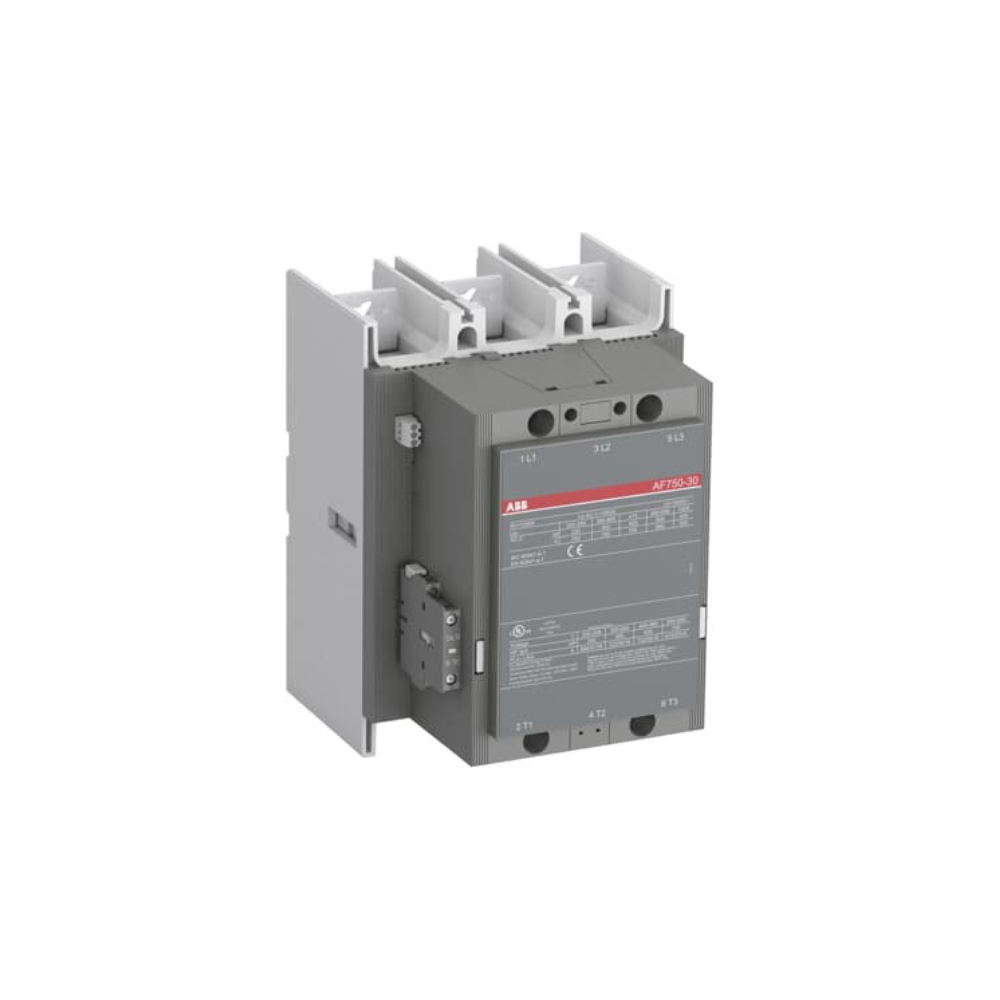

The ABB AF750-30-11-70 is a 3-pole block magnetic contactor engineered for demanding industrial power switching and motor control applications. Designed in accordance with IEC 60947-4-1 standards, this high-performance unit handles motor control up to 400 kW / 400 V AC (AC-3) or 600 hp / 480 V UL, and switches power circuits up to 1050 A (AC-1) general use. Equipped with advanced AF technology, it features a wide control voltage range to manage voltage variations and ensure reliable operation in unstable networks.

Key Features

• AF Technology: Features a wide control voltage range (100–250 V AC/DC) that dampens voltage fluctuations and reduces panel energy consumption.

• Pre-mounted Auxiliary Contacts: Comes equipped with factory-fitted auxiliary contacts (1 NO and 1 NC) and main circuit bars.

• Design Standard: Built in accordance with IEC 60947-4-1 standards for high reliability and safety.

Technical Specifications

• Manufacturer: ABB

• Series: AF Series (AF750)

• Product ID: 1SFL637001R7011

• Number of Poles: 3P (3 Main Contacts NO, 0 NC)

• Auxiliary Contacts: 1 NO / 1 NC

• Rated Operational Voltage ($U_e$): Main Circuit 1000 V

• Rated Operational Current AC-1 ($I_e$): 1050 A (at 40°C, 690 V) / 1000 A (at 40°C, 1000 V)

• Rated Operational Current AC-3 ($I_e$): 750 A (at 55°C, 380–500 V) / 650 A (at 55°C, 690 V) / 300 A (at 55°C, 1000 V)

• Rated Operational Power AC-3 ($P_e$): 400 kW at 400 V / 425 kW at 415 V / 600 kW at 690 V

• Conventional Free-Air Thermal Current ($I_{th}$): 1050 A (at 40°C)

• Rated Control Circuit Voltage ($U_c$): 100…250 V 50/60 Hz and DC

• Rated Insulation Voltage ($U_i$): 1000 V (acc. to IEC 60947-4-1) / 600 V (acc. to UL/CSA)

• Rated Impulse Withstand Voltage ($U_{imp}$): Main Circuit 8 kV

• Mechanical Durability: 3 million cycles

• Operating Temperature: -40°C to +70°C (Note: Range is -25°C to +50°C when close to a contactor fitted with a thermal overload relay)

Dimensions & Weight

• Product Net Width: 210 mm

• Product Net Depth / Length: 242 mm

• Product Net Height: 283 mm

• Product Net Weight: 13.6 kg

• Conclusion

The ABB AF750-30-11-70 3-pole magnetic contactor delivers robust, energy-efficient power switching and motor control for heavy-duty industrial environments, backed by advanced wide-range electronic coil technology.
