ABB E3N-A 2000 PR123/P-LSIG 2000A 3 Pole Air Circuit Breaker Supplier in Bangladesh

Description

Product Name: ABB E3N-A 2000 PR123/P-LSIG 2000A 3 Pole Air Circuit Breaker Supplier in Bangladesh

Manufacturer: ABB

Product Description

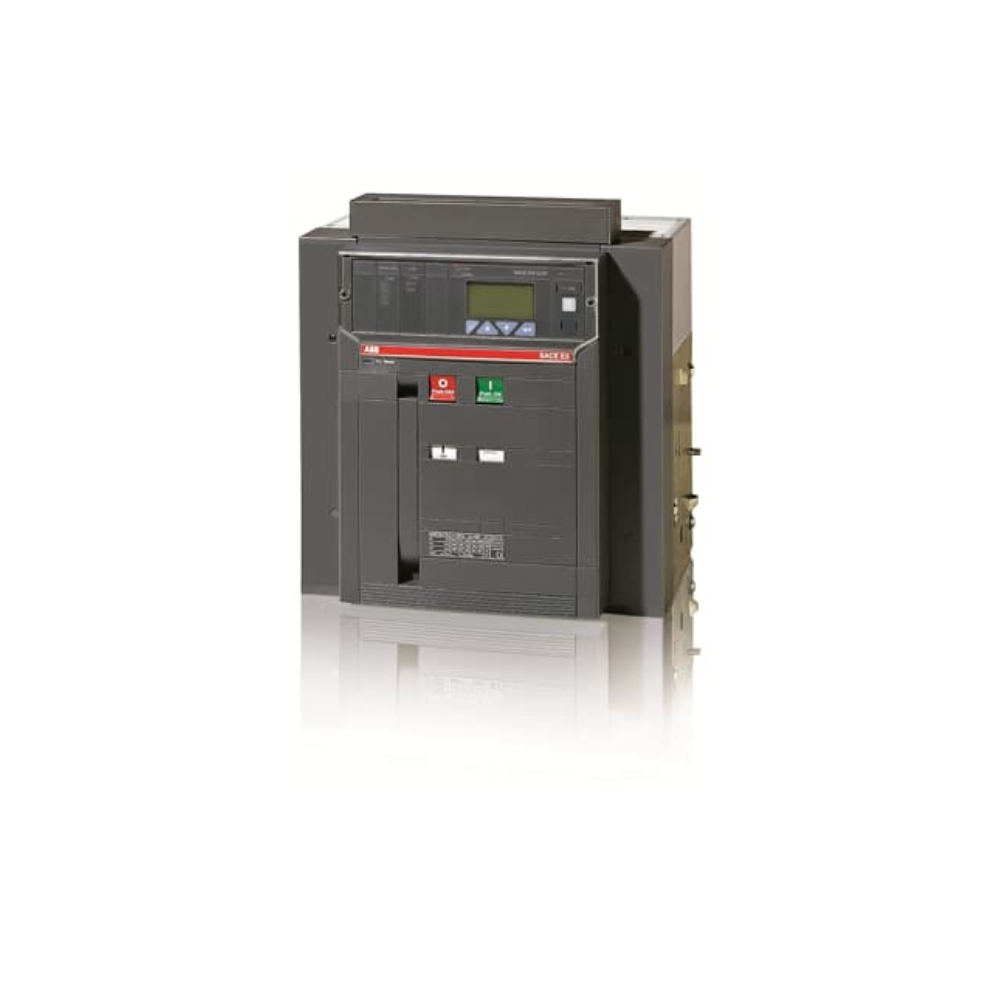

The ABB E3N-A 2000 PR123/P-LSIG 2000A 3 Pole Air Circuit Breaker (ACB) is engineered for high-capacity power distribution and critical circuit protection applications under UL 1066 standards. Part of the SACE Emax series, this fixed three-pole automatic circuit breaker features rear horizontal terminals, a 2000A rated current, an electronic PR123/P-LSIG solid-state release unit, and is factory-fitted with 4 auxiliary contacts and open-closed position signaling. It provides reliable overload, short-circuit, and ground-fault protection for heavy-duty industrial and commercial electrical networks across Bangladesh.

Key Features

• Solid-State Electronic Release (PR123/P-LSIG): Features a PR123/P-LSIG electronic trip unit providing long-time, short-time, instantaneous, and ground-fault protection (LSIG).

• 3-Pole Configuration: Designed for three-phase power distribution circuits.

• High Interruption Capacity: Provides interrupting ratings of up to 65 kA at 240 V AC and 50 kA at 480/600 V AC in accordance with UL 1066.

• Exceptional Durability: Built to withstand up to 15,000 mechanical cycles and 8,000 electrical cycles.

• SACE Emax Series: Part of ABB’s trusted air circuit breaker family designed for high-performance main distribution boards.

Technical Specifications

• Brand: ABB

• Series: SACE Emax

• Model: E3N-A 2000 PR123/P-LSIG In=2000A 3p F HR

• Product ID: 1SDA057395R1

• EAN: 8015644596583

• Product Type: Air Circuit Breaker (ACB)

• Rated Current (In): 2000 A

• Rated Operational Current (Ie): 2000 A

• Rated Uninterrupted Current (Iu): 2000 A

• Number of Poles: 3P

• Release: PR123/P-LSIG

• Release Type: Electronic (EL)

• Rated Voltage (Ur): 600 V

• Short-Circuit Performance Level: N

• Rated Service Short-Circuit Breaking Capacity (Ics): (240 V AC) 65 kA, (480 V AC) 50 kA, (600 V AC) 50 kA

• Interrupting Rating (UL 1066): (240 V AC) 65 kA, (480 V AC) 50 kA, (600 V AC) 50 kA

• Electrical Durability: 8,000 cycles

• Mechanical Durability: 15,000 cycles

• Terminal Connection Type: Fixed Circuit-Breakers, Rear Flat Horizontal Terminals

• Standards: UL 1066

• Dimensions (W x H x D): 404 mm x 418 mm x 302 mm

• Weight: 60 kg (Product Net Weight)

Conclusion

The ABB E3N-A 2000 PR123/P-LSIG 2000A 3 Pole Air Circuit Breaker is designed for heavy-duty power distribution systems requiring advanced electronic trip units under UL standards. Its robust three-pole layout, high interruption capacity, and comprehensive PR123/P-LSIG protection make it ideal for major industrial and commercial electrical installations in Bangladesh.
