ABB S202-K2 2A 2 Pole Miniature Circuit Breaker Best Price in Bangladesh

Description

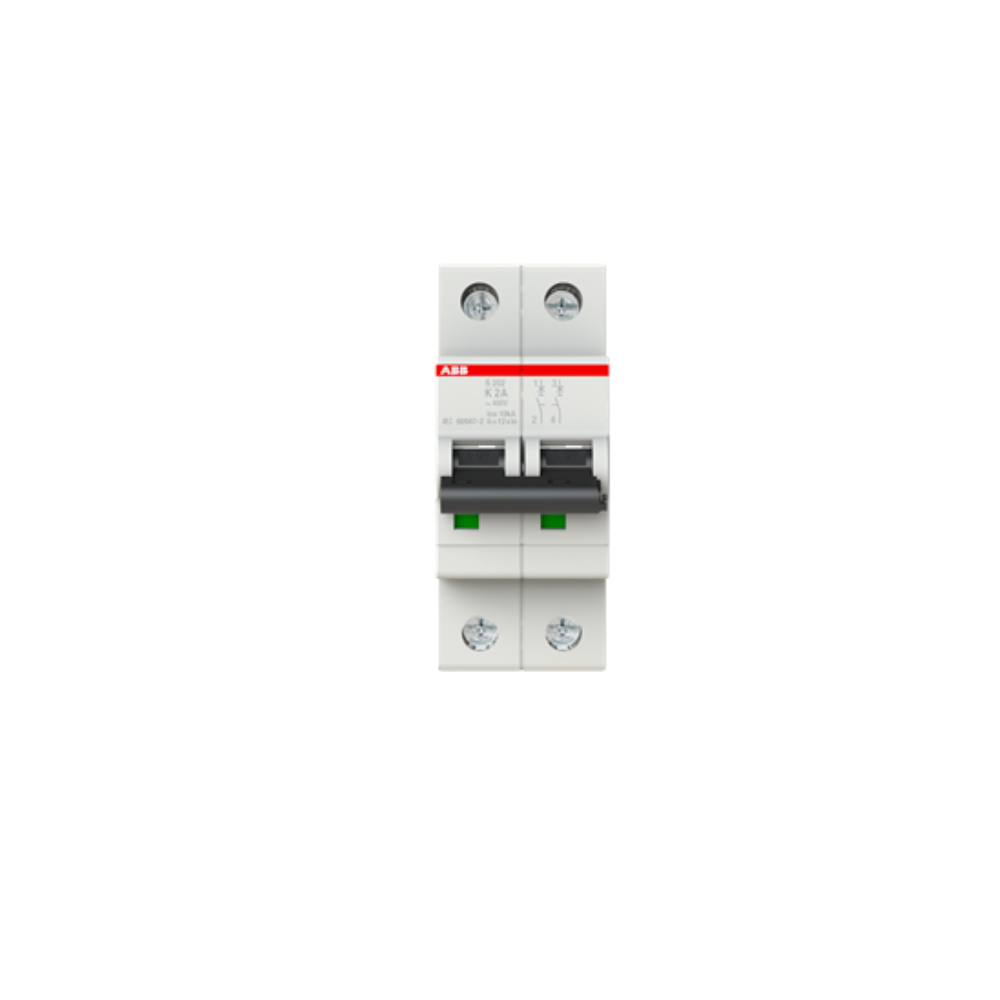

Product Name: ABB S202-K2 2A 2 Pole Miniature Circuit Breaker Best Price in Bangladesh

Manufacturer: ABB

Product Description

The ABB S202-K2 2A 2 Pole Miniature Circuit Breaker (MCB) is engineered for precision overload and short-circuit protection in residential, commercial, and industrial electrical installations. Part of the renowned System pro M compact S200 series, this current-limiting two-pole circuit breaker features a reliable K-trip characteristic, combining a delayed thermal tripping mechanism for overloads and an electromechanical tripping mechanism for short circuits. It provides robust performance across demanding power distribution networks in Bangladesh.

Key Features

• Dual Protection Mechanisms: Equipped with both a delayed thermal tripping mechanism for overload protection and an electromechanical mechanism for short-circuit protection.

• 2-Pole Configuration: Designed specifically for two-pole high-performance electrical distribution and control systems.

• 6 kA Rated Short-Circuit Capacity: Designed to provide reliable protection in accordance with IEC standards.

• Exceptional Durability: Built to withstand up to 20,000 electrical operating cycles and 20,000 mechanical operating cycles.

• System pro M Compact Series: A high-quality member of ABB’s globally trusted miniature circuit breaker family.

Technical Specifications

• Brand: ABB

• Series: System pro M compact S200

• Model: S202-K2

• Product ID: 2CDS252001R0277

• Product Type: Miniature Circuit Breaker (MCB)

• Rated Current (In): 2 A

• Number of Poles: 2P

• Tripping Characteristic: K

• Input Voltage Type: AC/DC

• Rated Operational Voltage: 440 V AC / 125 V DC

• Rated Insulation Voltage (Ui): 440 V

• Frequency: 50/60 Hz

• Rated Short-Circuit Capacity: (AC) 6 kA, (DC) 6 kA

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 20 kA, (400 V AC) 10 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA, (400 V AC) 7.5 kA

• Energy Limiting Class: 3

• Mounting Type: DIN Rail

• Degree of Protection: IP20 (IP40 in enclosure)

• Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal

• Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

• Dimensions (W x H x D): 35 mm x 88 mm x 69 mm

• Weight: 0.224 kg

Conclusion

The ABB S202-K2 2A 2 Pole Miniature Circuit Breaker is designed for precision circuit protection requiring reliable thermal and magnetic response under strict IEC and UL standards. Its compact two-pole layout, K-curve characteristics, and dependable short-circuit capacity make it ideal for advanced electrical switchboards and automation control panels in Bangladesh.
