Description
Product Name:
Product Description

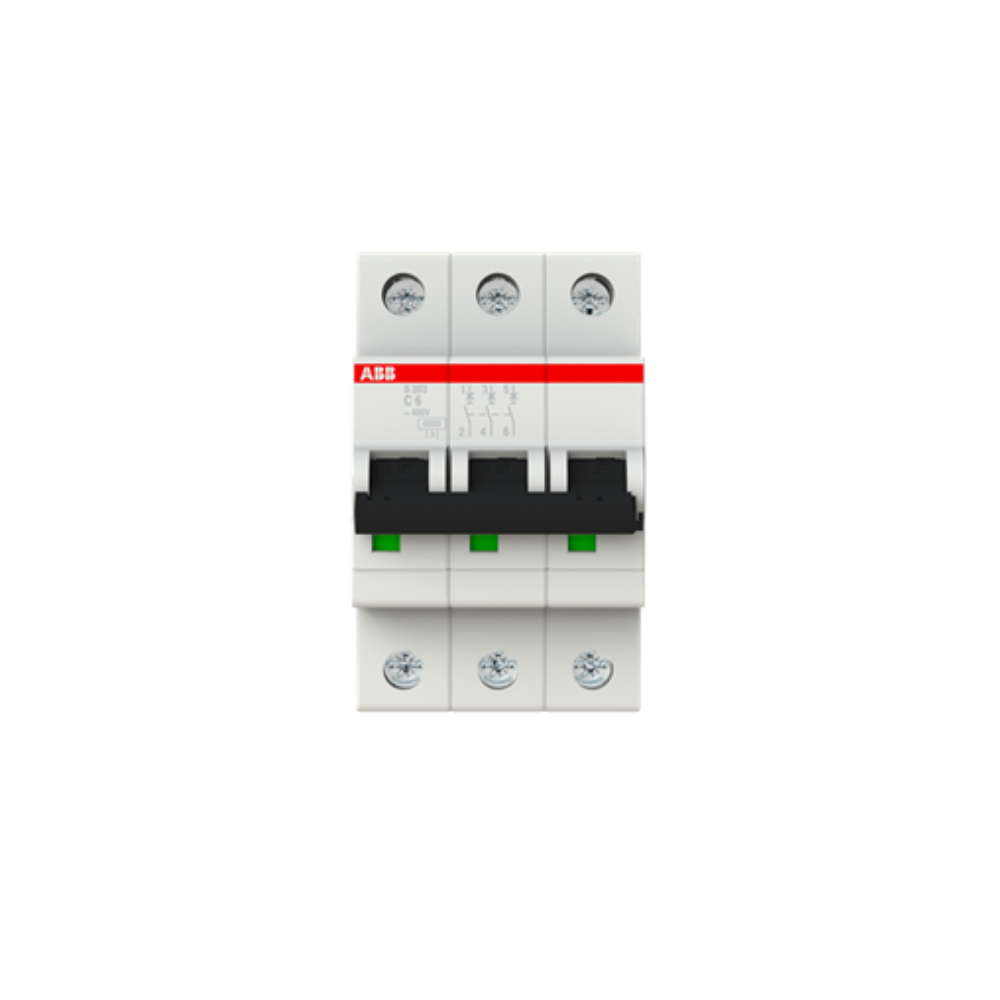

The ABB 6A 3 Miniature Circuit Breaker Pole S203-C6 is a current-limiting circuit protection device designed for low-voltage electrical distribution systems. As part of the System pro M compact S200 series, this unit incorporates two distinct tripping mechanisms: a delayed thermal release for overload protection and an electromechanical release for short-circuit protection. It is engineered for reliability in electrical distribution systems, ensuring performance compliance in residential, commercial, and industrial installations.
Key Features
-
3-Pole Configuration: Designed for three-phase distribution systems with a compact 3-module width.
-
Dual Tripping Mechanism: Features integrated thermal and electromechanical release systems for comprehensive circuit protection.
-
Current Limiting Technology: Designed to limit energy pass-through during short-circuit faults, protecting downstream equipment.
-
Reliable Indication: Includes a clear Red/Green contact position indicator for quick visual status confirmation.
-
Robust Durability: Engineered for high longevity, supporting up to 20,000 electrical and 20,000 mechanical operating cycles.
-
Versatile Connectivity: Compatible with both AC and DC input voltage types for diverse electrical applications.
Technical Specifications
-
Brand: ABB
-
Series: System pro M compact S200
-
Model: S203-C6
-
Product ID: 2CDS253001R0064
-
Product Type: Miniature Circuit Breaker (MCB)
-
Rated Current (In): 6 A
-
Number of Poles: 3P
-
Tripping Characteristic: C
-
Rated Operational Voltage: 400 V AC (IEC 60898-1) / 440 V AC (IEC 60947-2)
-
Rated Insulation Voltage (Ui): 440 V
-
Rated Impulse Withstand Voltage (Uimp): 4 kV
-
Rated Short-Circuit Capacity: 6 kA
-
Energy Limiting Class: 3
-
Frequency: 50/60 Hz
-
Input Voltage Type: AC/DC
-
Connection Capacity: 0.75 … 35 mm² (Rigid)
-
Terminal Type: Failsafe Bi-directional Cylinder-lift Screw Terminal
-
Mounting: DIN 43880 1 (Installation Size)
-
Degree of Protection: IP20
-
Dimensions (W x H x D): 52.5 mm x 88 mm x 69 mm
-
Weight: 0.336 kg
Conclusion
The ABB S203-C6 6A 3 Pole Miniature Circuit Breaker provides reliable overload and short-circuit protection for low-voltage electrical distribution systems. Its current-limiting design, C tripping characteristic, and compact construction make it suitable for residential, commercial, and industrial applications in Bangladesh.
