ABB SACE Tmax Pole MCCB Price in Bangladesh

Description

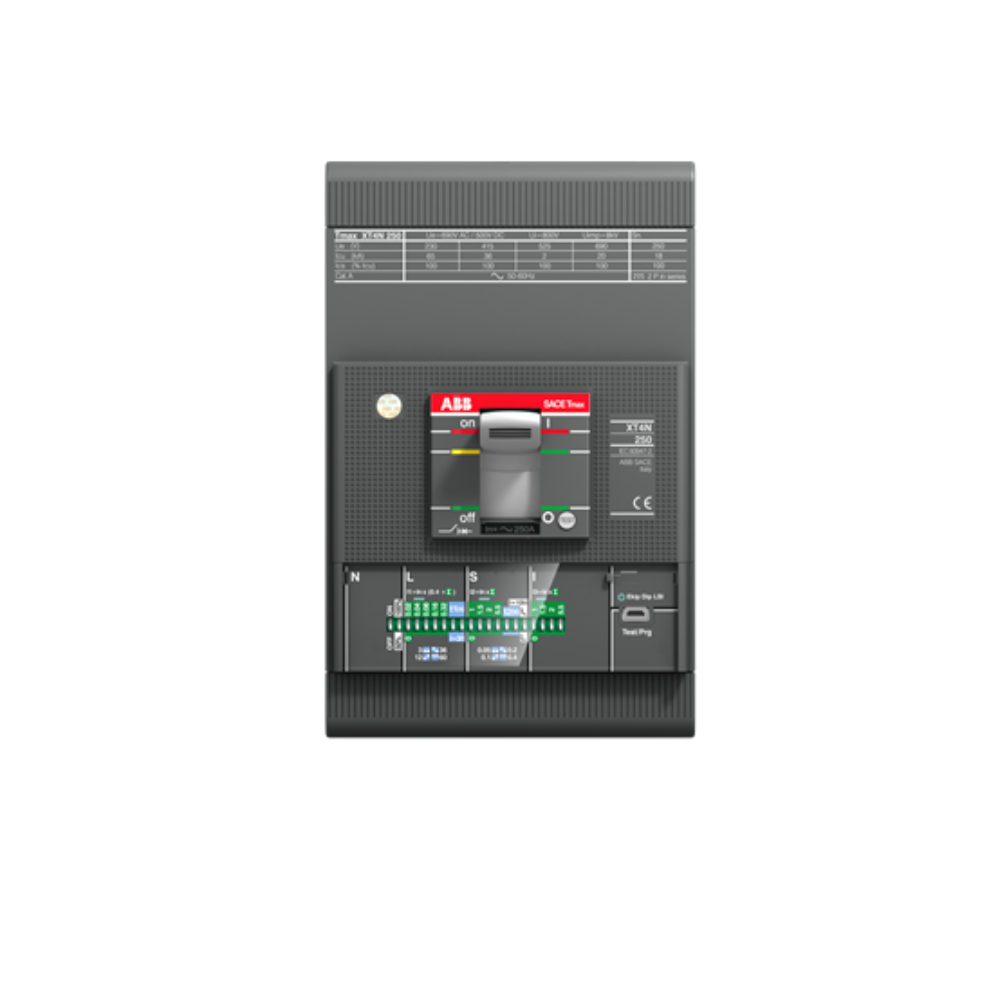

Product Name: ABB SACE Tmax XT4H 250 Ekip Dip LS/I 3-Pole MCCB Price in Bangladesh

Manufacturer: ABB

Product Description:

The ABB XT4H 250 Ekip Dip LS/I is a 3-pole molded case circuit breaker (MCCB) from the SACE Tmax XT series. It features an Ekip DIP LS/I solid-state electronic release and is designed for power distribution applications.

• Key Features:

  • Trip Unit: Ekip DIP LS/I solid-state electronic release.

  • Mounting: Fixed mounting with front terminals.

  • Configuration: 3-Pole, Fixed version.

• Technical Specifications:

  • Model: XT4H 250 Ekip Dip LS/I

  • Product ID: 1SDA068515R1

  • Rated Current (In): 250A

  • Number of Poles: 3

  • Rated Operational Voltage: 690V AC

  • Rated Insulation Voltage (Ui): 1000V

  • Dimensions (W x H x D): 105 mm x 160 mm x 82.5 mm

  • Weight: 2.321 kg

• Conclusion

• The ABB XT4H 250 Ekip Dip LS/I is a 3-pole molded case circuit breaker designed for power distribution applications. It features an Ekip DIP LS/I electronic release, fixed mounting configuration, and complies with IEC 60947-2 standards.
