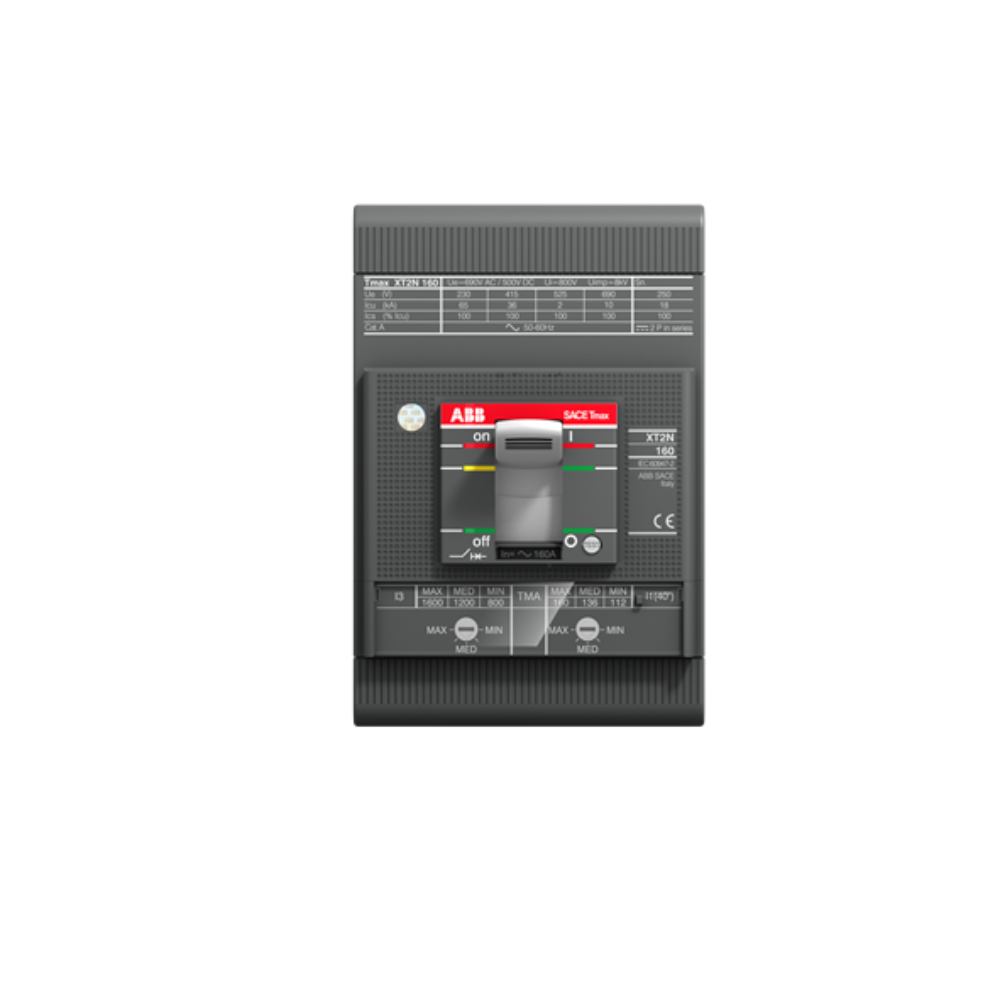

ABB SACE Tmax XT2S 160 MA 80A 3-Pole Motor Protection Circuit Breaker Supplier in Bangladesh

Description

Product Name: ABB SACE Tmax XT2S 160 MA 80A 3-Pole Motor Protection Circuit Breaker   Supplier in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT2S 160 MA 80 is a 3-pole, fixed, molded case circuit breaker (MCCB) from the SACE Tmax XT series. This unit features an MA magnetic release with an instantaneous current setting (Ii) of 480–1120 A and is designed for motor protection. It is compatible with both AC and DC electrical systems.

Key Features

• • Release: MA (Magnetic).

  • Mounting: Fixed mounting with front terminal connections.

  • Durability: Rated for 8000 electrical cycles and 25000 mechanical cycles.


    Technical Specifications

    • Catalog Number: 1SDA067768R1
    • Rated Current (In): 80A
    • Rated Uninterrupted Current (Iu): 160A
    • System Voltage: 690V AC / 500V DC
    • Number of Poles: 3
    • Release: MA
    • Release Type: M
    • Interrupting Rating (Icu): 50kA @ 415V AC
    • Frame Type: XT2
    • Connecting Capacity (Main Circuit): Busbar 32.5–100 mm²
    • Standards: IEC 60947-2

Conclusion

The ABB XT2S 160 MA 80 is a molded case circuit breaker designed for motor protection applications. It features a magnetic release (MA), a 3-pole fixed configuration, and complies with IEC 60947-2. This unit is available for industrial and commercial power distribution projects within Bangladesh.
