ABB ST202M-C20 20A 2 Pole Miniature Circuit Breaker Supplier in Bangladesh

Description

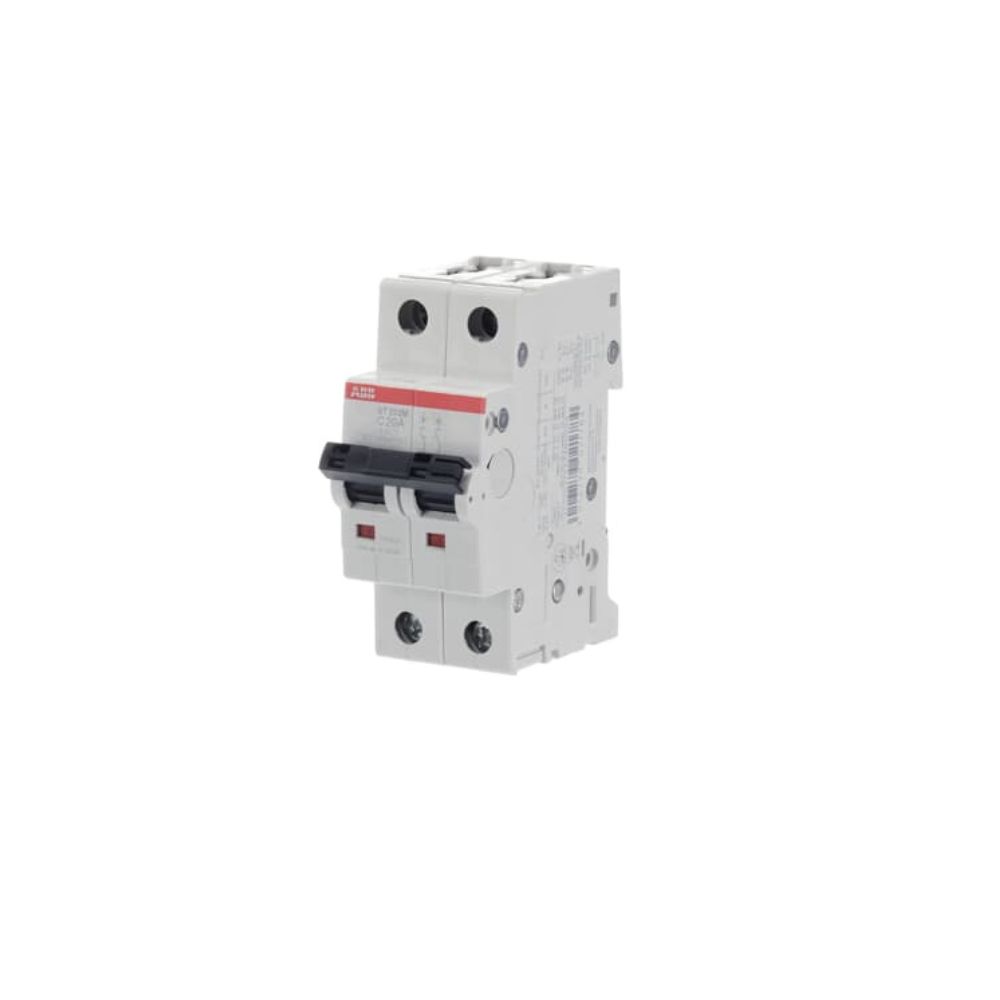

Product Name: ABB ST202M-C20 20A 2 Pole Miniature Circuit Breaker Supplier in Bangladesh

Manufacturer: ABB

Product Description

The ABB ST202M-C20 20A 2 Pole Miniature Circuit Breaker (MCB) is engineered for overload and short-circuit protection across electrical applications. Part of the ST200M series, this two-pole miniature circuit breaker features a C tripping characteristic with a 20A rated current. It provides performance for power distribution systems throughout Bangladesh.

Key Features

• 2-Pole Configuration: Designed for two-pole electrical distribution circuits.

• C Tripping Characteristic: Designed for dependable protection in low-voltage electrical circuits.

• 10kA Rated Short-Circuit Capacity: Provides dependable protection in accordance with IEC and UL standards.

• Energy Limiting Class 3: Ensures high energy limitation to minimize stress on electrical circuits during faults.

• Double Clamp Terminals: Features secure double clamp terminals for reliable and flexible wiring connections.

Technical Specifications

• Brand: ABB

• Series: ST200M

• Model: ST202M-C20

• Product ID: 2CDS272334R0204

• Product Type: Miniature Circuit Breaker (MCB)

• Rated Current (In): 20 A

• Number of Poles: 2P

• Tripping Characteristic: C

• Input Voltage Type: AC/DC

• Rated Operational Voltage: 400 V AC

• Rated Insulation Voltage (Ui): 400 V

• Frequency: 50/60 Hz

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 15 kA, (125 V DC) 15 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (400 V AC) 11.2 kA

• Energy Limiting Class: 3

• Terminal Type: Double Clamp

• Standards: IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235

• Dimensions (W x H x D): 35 mm x 88 mm x 69 mm

• Weight: 0.23 kg

Conclusion

The ABB ST202M-C20 20A 2 Pole Miniature Circuit Breaker is designed for electrical distribution systems requiring protection under strict IEC and UL standards. Its compact two-pole layout, C-curve characteristics, and breaking capacity make it suitable for electrical installations in Bangladesh.
