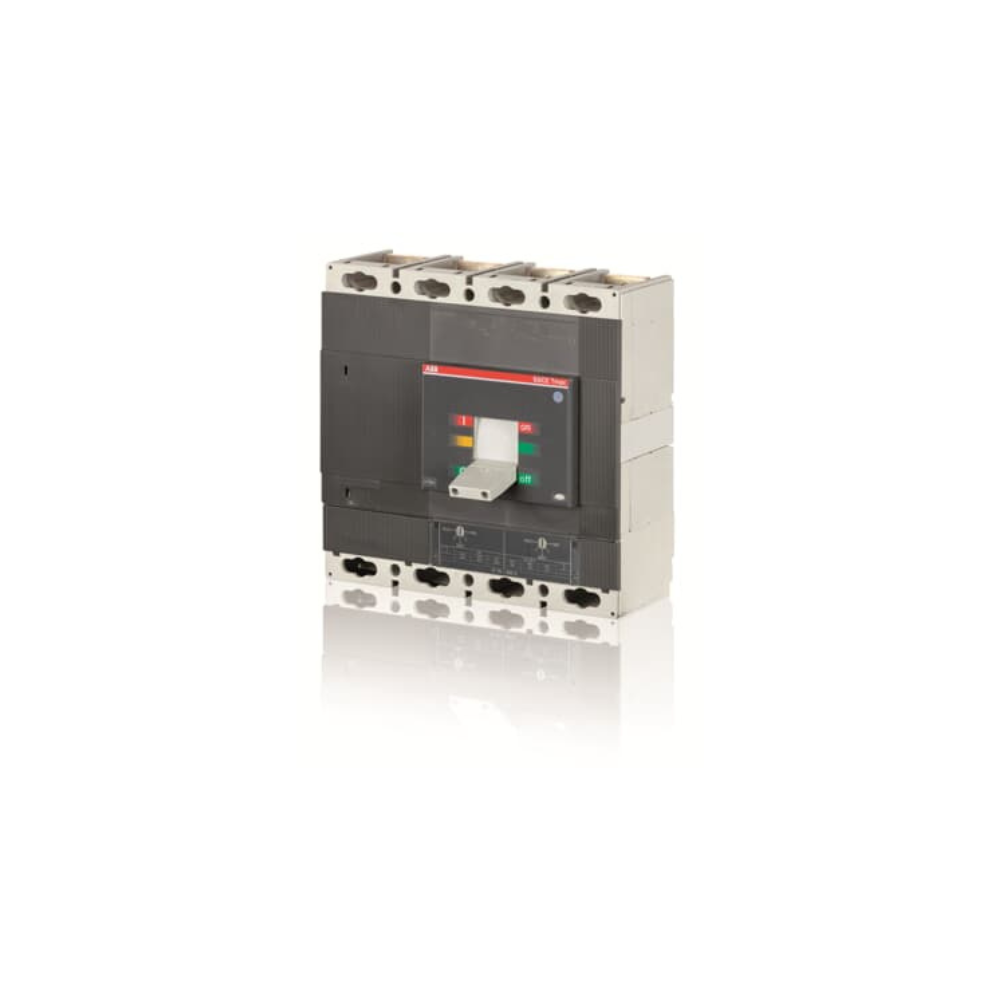

ABB T6L 800 TMA 800A 4 Pole Moulded Case Circuit Breaker Best Price in Bangladesh

Description

Product Name: ABB T6L 800 TMA 800A 4 Pole Moulded Case Circuit Breaker Best Price in Bangladesh

Manufacturer: ABB

Product Description

The ABB T6L 800 TMA 800A 4 Pole Moulded Case Circuit Breaker (MCCB) is designed for demanding industrial power distribution networks. Part of the SACE Tmax T series, this fixed four-pole circuit breaker features front terminals and a thermomagnetic release (TMA) unit with an 800A rated current and an instantaneous magnetic trip setting of 4000…8000 A. It provides reliable overload and short-circuit protection for commercial and industrial electrical installations across Bangladesh.

Key Features

• Thermomagnetic Release (TMA): Equipped with a TMA release unit featuring an 800A rated current and an instantaneous magnetic trip setting of 4000…8000 A.

• 4-Pole Configuration: Designed for four-pole high-capacity power distribution systems.

• High Breaking Capacity: Features an ultimate short-circuit breaking capacity (Icu) of up to 100 kA at 400 V AC.

• High Durability: Rated for up to 5,000 electrical operating cycles and 20,000 mechanical operating cycles.

• SACE Tmax T Series: Member of ABB’s high-performance moulded case circuit breaker family.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax T

• Model: T6L 800 TMA 800-8000 4p F F

• Product ID: 1SDA060221R1

• Product Type: Moulded Case Circuit Breaker (MCCB)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 4P

• Trip Unit Type: Thermomagnetic Release (TMA)

• Rated Operational Voltage: 690 V AC / 750 V DC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 100 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (400 V AC) 75 kA

• Version: Fixed (F)

• Terminal Connection Type: Front

• Standards: IEC

• Dimensions (W x H x D): 280 mm x 268 mm x 103.5 mm

• Weight: 12 kg

Conclusion

The ABB T6L 800 TMA 800A 4 Pole Moulded Case Circuit Breaker is designed for heavy-duty power distribution systems requiring robust thermomagnetic protection under IEC standards. Its TMA release, fixed four-pole configuration, and high breaking capacity make it suitable for industrial electrical panels and distribution networks in Bangladesh.
