ABB T6L 800A 4 Pole TMA IEC MCCB Distributor in Bangladesh

Description

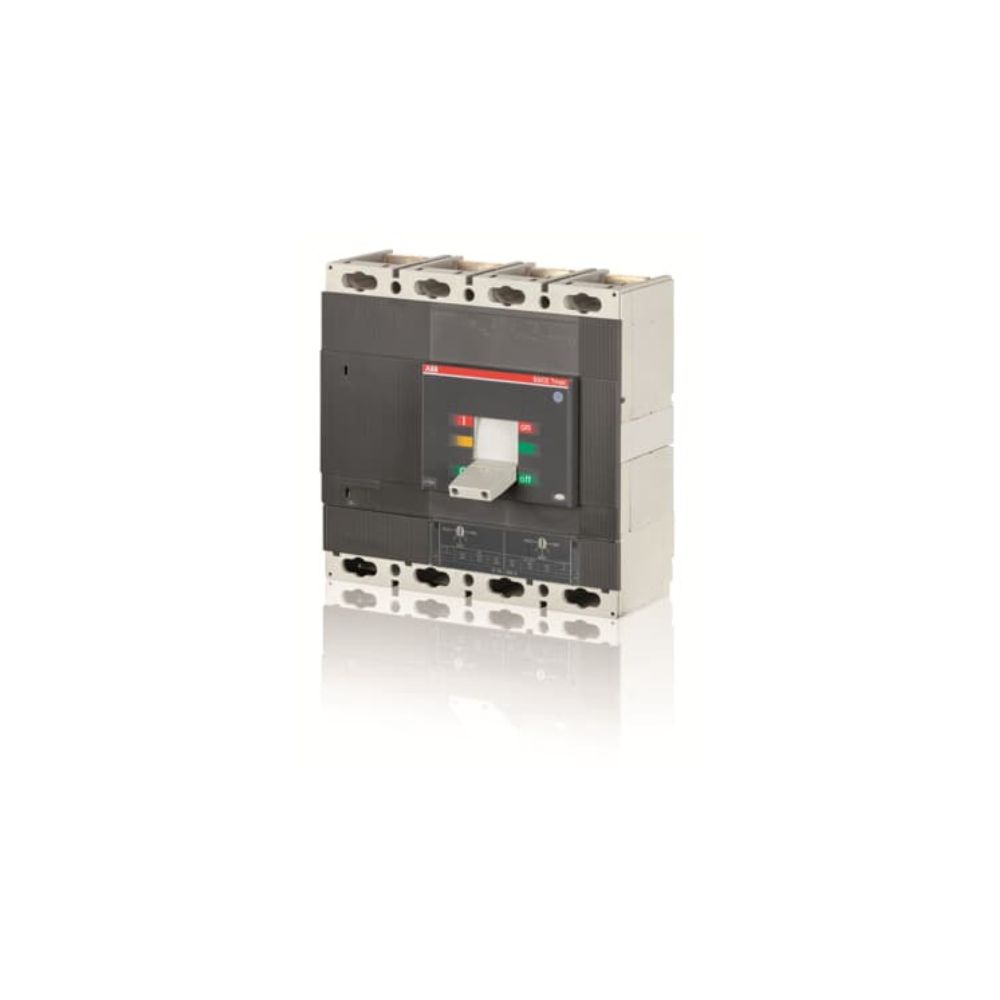

Product Name: ABB T6L 800A 4 Pole TMA IEC MCCB Distributor in Bangladesh

Manufacturer: ABB

Product Description

The ABB T6L 800A 4 Pole TMA IEC MCCB is engineered for high-capacity power distribution and circuit protection under IEC standards. Part of the legacy SACE Tmax T series, this fixed four-pole automatic circuit breaker features front terminals, an 800A rated current, and a reliable thermomagnetic release unit. It provides dependable overload and adjustable short-circuit protection for heavy-duty industrial and commercial four-wire electrical installations across Bangladesh.

Key Features

• Thermomagnetic Release (TMA): Features adjustable thermal thresholds and magnetic trip units for robust overcurrent and short-circuit protection.

• 4-Pole Configuration: Engineered specifically for four-wire three-phase power distribution networks requiring comprehensive neutral protection.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 200 kA at 220/230 V AC and 100 kA at 380/400/415 V AC.

• Exceptional Durability: Built to withstand up to 20,000 mechanical operating cycles and 5,000 electrical operating cycles.

• SACE Tmax T Series: Part of ABB’s trusted legacy moulded case circuit breaker family designed for high-performance industrial environments.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax T

• Model: T6L 800A TMA 4P

• Extended Product Type: T6L 800 TMA 800-8000 4p F F

• Product ID: 1SDA060221R1

• EAN: 8015644626815

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 4P

• Release: TMA

• Release Type: Thermomagnetic (TM)

• Current Type: AC / DC

• Rated Operational Voltage: 690 V AC, 750 V DC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Rated Short-Time Withstand Current (Icw): 10 kA (for 1 s)

• Short-Circuit Performance Level: L

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230 V AC) 200 kA, (380/400/415 V AC) 100 kA, (440 V AC) 80 kA, (500 V AC) 65 kA, (690 V AC) 30 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (220/230 V AC) 150 kA, (380/400/415 V AC) 75 kA, (440 V AC) 60 kA, (500 V AC) 49 kA, (690 V AC) 22.5 kA

• Mechanical Durability: 20,000 cycles

• Electrical Durability: 5,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC

• Dimensions (W x H x D): 280 mm x 268 mm x 103.5 mm

• Weight: 12 kg (Product Net Weight)

Conclusion

The ABB T6L 800A 4 Pole TMA IEC MCCB offers heavy-duty power distribution and robust short-circuit protection for demanding industrial grids. Featuring a four-pole layout and a dependable thermomagnetic trip mechanism, it ensures reliable fault interruption and operational safety.
