Description

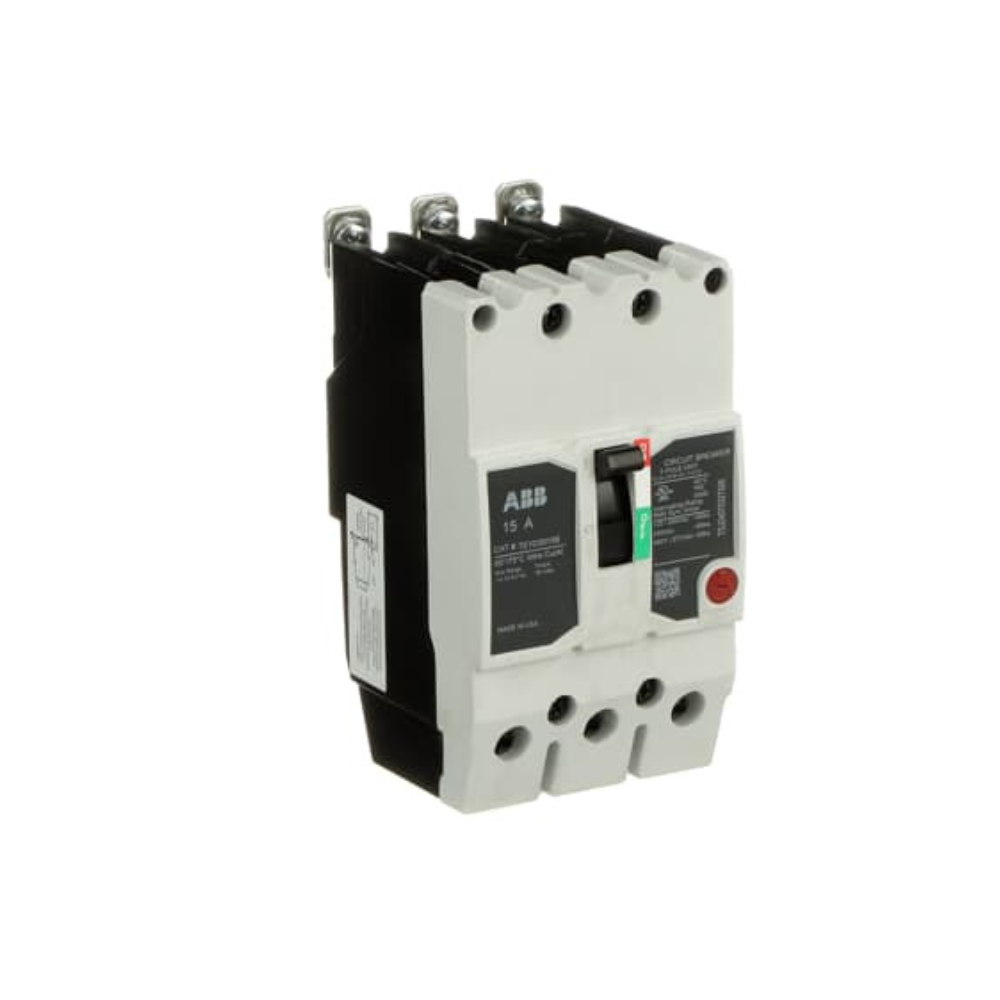

Product Name: ABB TEYD3015B 15A 3-Pole Bolt-On Circuit Breaker Price in Bangladesh
Manufacturer: ABB
Product Description
The ABB TEYD3015B is a 3-pole, bolt-on circuit breaker with a 1-inch-wide per-pole design. It is rated for use on grounded 480Y/277V AC systems. This unit features a quick-make/quick-break mechanism, common trip bars, and a visible trip indication system.
Key Features:
-
-
Mechanism: Quick-make/Quick-break operation.
-
Mounting: Bolt-on mounting configuration.
-
Interruption Rating: 25kAIC at 480Y/277V AC.
-
-
Technical Specifications
-
Catalog Number: TEYD3015B
-
Rated Current: 15A
-
System Voltage: 120/240VAC, 240VAC, 250VDC, 277VAC, 480Y/277VAC
-
Number of Poles: 3
-
Frame Type: TEYD
-
Trip Function: LI (Long-time & Instantaneous)
-
Interrupting Rating: 25kAIC @ 480Y/277VAC
-
Wire Range (Cu/Al): #14-#10 AWG
-
Certification: UL Listed (File E11592)
-
Conclusion
The ABB TEYD3015B is a 3-pole, bolt-on circuit breaker designed for lighting panel applications. It is UL listed for operation in 480Y/277VAC systems and is currently available for industrial and commercial power distribution projects within Bangladesh.
-
