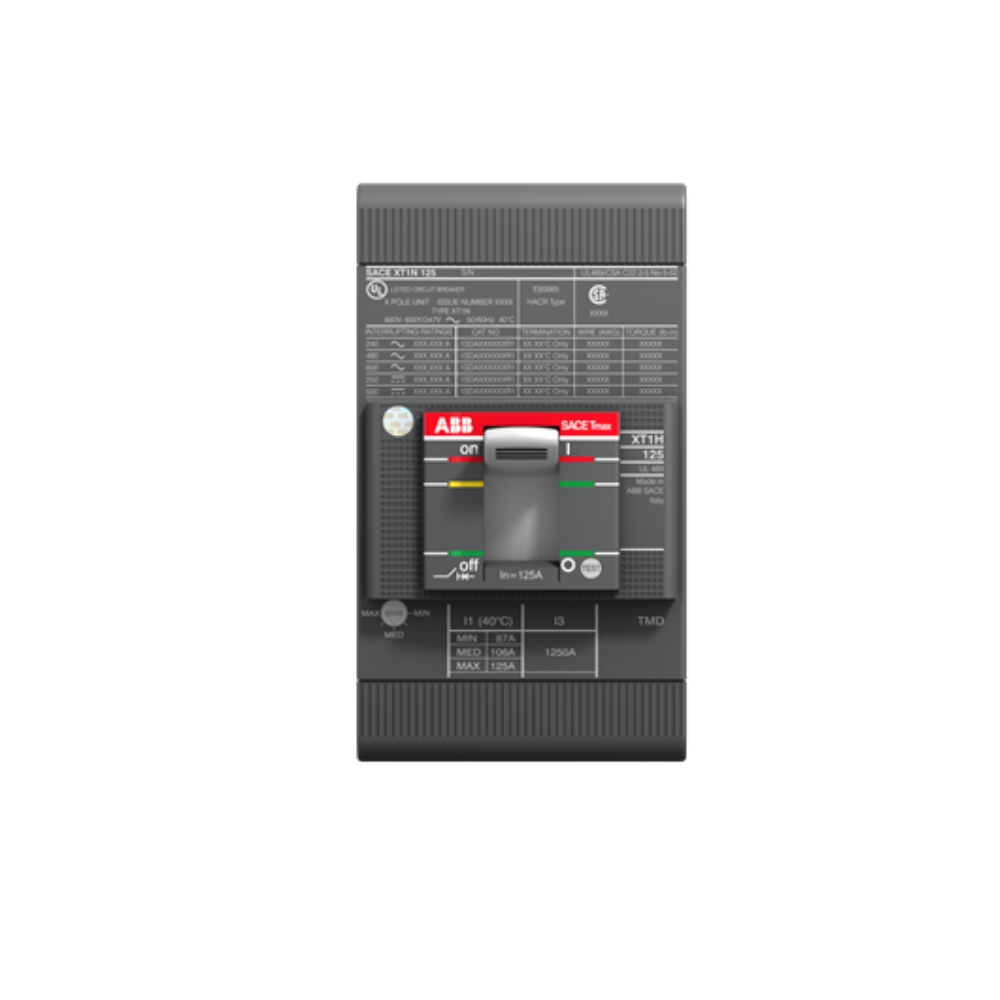

ABB XT1H 125 TMF 100-1000 3 Pole Moulded Case Circuit Breaker Price In Bangladesh

Description

Product Name:  ABB XT1H 125 TMF 100-1000 3 Pole  Moulded Case Circuit Breaker Price In Bangladesh

Manufacturer: ABB

Product Description

The ABB XT1H 125 TMF 100-1000 3 Pole Moulded Case Circuit Breaker is designed for low-voltage power distribution systems requiring reliable overload and short-circuit protection. As a member of the SACE Tmax XT series, this unit utilizes a thermomagnetic TMF release, providing dependable, self-contained protection for electrical circuits. Engineered with a fixed-design configuration and front-terminal connectivity, it ensures robust performance and efficient integration into industrial and commercial switchboards.

Key Features

• 3-Pole Fixed Configuration: Designed for three-phase power distribution with a compact, fixed-mounting architecture.

• Thermomagnetic Protection: Equipped with a TMF release for fixed thermal and adjustable magnetic protection, ideal for standard distribution applications.

• AC/DC Compatibility: Versatile design suitable for both AC and DC power distribution systems.

• Front Terminal Connectivity: Features standard front terminals, facilitating straightforward installation in diverse panel environments.

• Operational Reliability: Rated for an electrical durability of 8,000 cycles and a mechanical durability of 25,000 cycles, ensuring long-term service.

• Robust Standards: Manufactured in compliance with UL489 standards for safety and performance in demanding conditions.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT1H 125 TMF 100-1000 3p

• Product ID: 1SDA074706R1

• Product Type: Automatic Circuit Breaker

• Version: F

• Current Type: AC/DC

• Terminal Connection: Front

• Terminal Type: Bolt

• Mounting Type: Fixed

• Rated Current (In): 100 A

• Rated Uninterrupted Current (Iu): 125 A

• Number of Poles: 3P

• Release: TMF

• Release Type: TM

• Rated Instantaneous Short-Circuit Current Setting (Ii): 1000 A

• Rated Operational Voltage: 600Y/347 V AC / 500 V DC

• Rated Voltage (Ur): 600Y/347 V

• Short-Circuit Performance Level: H

• Dimensions (W x H x D): 76.2 mm x 130 mm x 70 mm

• Weight: 1.1 kg

Conclusion

The ABB XT1H 125 TMF 100-1000 3 Pole MCCB offers reliable and essential protection for power distribution systems. Its proven thermomagnetic release technology and durable mechanical construction make it a dependable choice for safeguarding industrial and commercial electrical infrastructures in Bangladesh.
