ABB XT1S125 TMF 80A 3 Pole Moulded Case Circuit Breaker Distributor in Bangladesh

Description

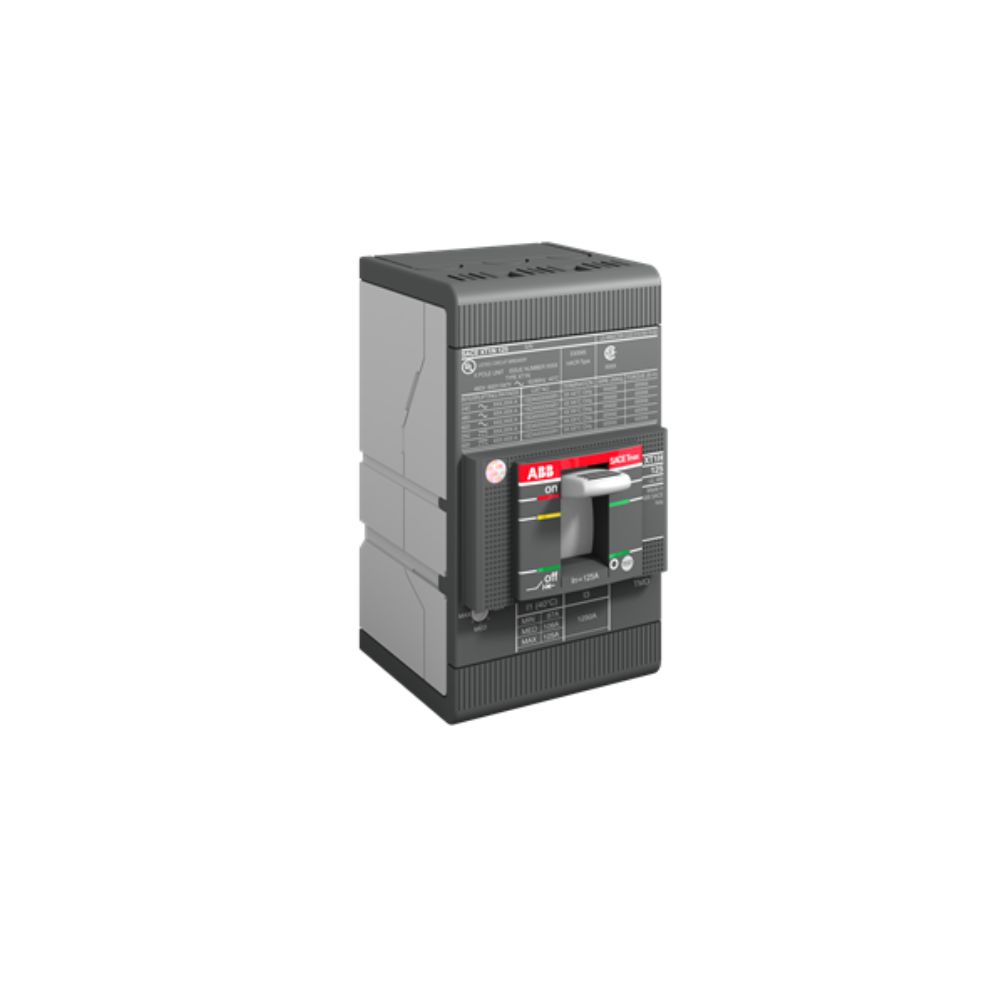

Product Name: ABB XT1S125 TMF 80A 3 Pole Moulded Case Circuit Breaker Distributor in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT1S125 TMF 80A 3 Pole Moulded Case Circuit Breaker (MCCB) is designed for reliable overload and short-circuit protection in commercial and industrial low-voltage power distribution systems. Part of the SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals and a Thermomagnetic (TMF) release with an 80A rated current housed in a 125A frame. It is built to meet UL489 standards, making it suitable for dependable circuit protection in electrical installations across Bangladesh.

Key Features

• Thermomagnetic (TMF) Release: Provides reliable overload and short-circuit protection with a fixed 80A setting.
• 3-Pole Configuration: Designed for three-phase power distribution applications.
• High Interrupting Capacity: Delivers interrupting ratings up to 65 kA at 240 V AC under UL489 standards.
• Front Terminal Design: Fixed front terminal configuration allows convenient installation and wiring.
• SACE Tmax XT Series: Part of ABB’s trusted low-voltage moulded case circuit breaker family.

Technical Specifications

• Brand: ABB
• Series: SACE Tmax XT
• Model: XT1S 125 TMF 80-800 3P F F UL/CSA
• Order Code (US & Canada): XT1SU3080AFF000XXX
• Product ID: 1SDA074674R1
• EAN: 8015644786519
• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)
• Rated Current (In): 80 A
• Rated Uninterrupted Current (Iu): 125 A
• Number of Poles: 3P
• Release: TMF
• Release Type: Thermomagnetic (TM)
• Setting Range: 80 A
• Rated Instantaneous Short-Circuit Current (Ii): 900 A
• Current Type: AC/DC
• Rated Operational Voltage: 600Y/347 V AC, 500 V DC
• Rated Voltage (Ur): 600Y/347 V
• Short-Circuit Performance Level: S
• Interrupting Rating (UL489):
  • 240 V AC: 65 kA
  • 480 V AC: 35 kA
  • 600Y/347 V AC: 22 kA
  • 250 V DC (2 Poles in Series): 42 kA
  • 500 V DC (4 Poles in Series): 50 kA
• Electrical Durability: 8,000 cycles
• Mechanical Durability: 25,000 cycles
• Terminal Connection Type: Front
• Terminal Type: Bolt
• Standards: UL489
• Dimensions (W × H × D): 76.2 × 130 × 70 mm
• Weight: 1.1 kg

Conclusion

The ABB XT1S125 TMF 80A 3 Pole Moulded Case Circuit Breaker is designed for low-voltage power distribution systems requiring dependable thermomagnetic protection under UL489 standards. Its 125A frame, 80A thermomagnetic release, high interrupting capacity, and compact front-terminal design make it suitable for commercial and industrial electrical installations in Bangladesh.
