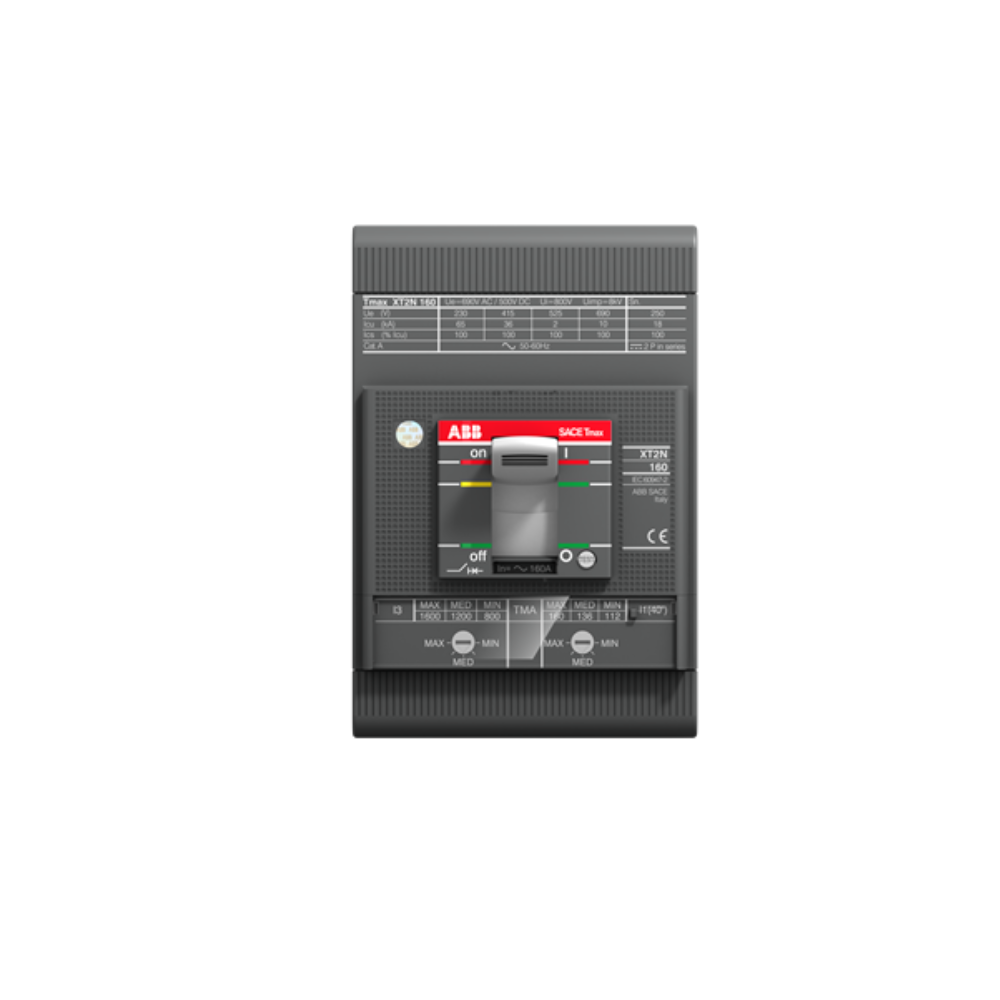

ABB XT2H 125 TMA 100A 3 Pole Moulded Case Circuit Breaker (MCCB) price in BD

Description

Product Name: ABB XT2H 125 TMA 100A 3 Pole Moulded Case Circuit Breaker (MCCB) price in BD

Manufacturer: ABB

Product Description

The ABB  XT2H 125 TMA 100A 3 Pole MCCB is a high-performance moulded case circuit breaker designed for low-voltage power distribution applications requiring reliable overload and short-circuit protection. As part of the SACE Tmax XT series, this unit features a thermomagnetic release (TMA) and is engineered to provide precise current protection in commercial and industrial electrical systems. With its fixed-design configuration and front-terminal connectivity, it ensures efficient integration into power distribution panels.

Key Features

• 3-Pole Fixed MCCB: Designed for three-pole distribution systems with a robust fixed mounting configuration.

• Front Terminal Connections: Features front bolt-type terminal connections for convenient and secure installation.

• Thermomagnetic Release: Equipped with a TMA release (100A, adjustable Ii 500-1000A) for reliable protection against thermal overloads and magnetic short circuits.

• Standards Compliance: Manufactured in compliance with UL489 standards.

• Versatile Application: Suitable for low-voltage commercial and industrial electrical distribution systems.

• High Durability:

  • Mechanical Durability: Up to 25,000 operating cycles.

  • Electrical Durability: Up to 8,000 operating cycles.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT2H 125 TMA 100-500..1000 3p

• Product ID: 1SDA074800R1

• Product Type: Automatic Circuit Breaker

• Rated Current (In): 100 A

• Rated Uninterrupted Current (Iu): 125 A

• Current Type: AC/DC

• Rated Voltage (Ur): 600 V

• Number of Poles: 3P

• Release: TMA

• Release Type: TM

• Rated Instantaneous Short-Circuit Current Setting (Ii): 500…1000 A

• Setting Range: 70…100 A

• Rated Operational Voltage: 600 V AC / 500 V DC

• Short-Circuit Performance Level: H

• Terminal Connection: Front

• Terminal Type: Bolt

• Standards: UL489

• Dimensions (W x H x D): 90 mm x 130 mm x 82.5 mm

• Weight: 1.1 kg

Conclusion

The ABB Tmax XT2H 125 TMA 100A 3 Pole MCCB stands out as a reliable and high-performance solution for power distribution in Bangladesh. Built with ABB’s commitment to quality and safety, this circuit breaker offers precise thermomagnetic protection to safeguard your critical electrical infrastructure. Its compliance with international standards and robust construction make it an ideal choice for demanding industrial and commercial environments.

Contact Us

For the best price in Bangladesh, technical documentation, or to purchase this product, contact our sales team.
