ABB XT4S 225A 3 Pole TMF UL/CSA MCCB Price in Bangladesh

Description

Product Name: ABB XT4S 225A 3 Pole TMF UL/CSA MCCB Price in Bangladesh

Manufacturer: ABB

Product Description

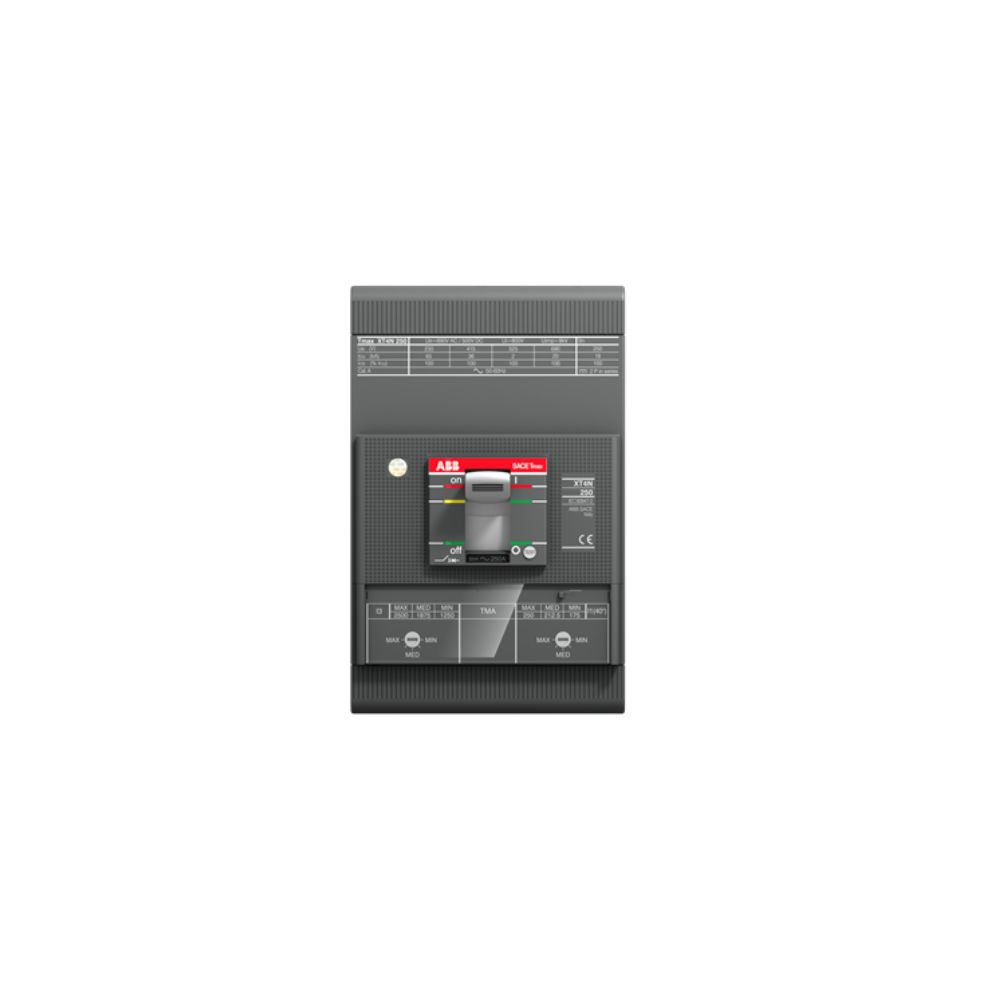

The ABB XT4S 225A 3 Pole TMF UL/CSA MCCB is engineered for high-performance power distribution and circuit protection under UL 489 standards. Part of the compact SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a 225A rated current, and a thermomagnetic TMF release unit. It provides reliable overload and short-circuit protection for demanding industrial and commercial electrical systems across Bangladesh at the best competitive market rate.

Key Features

• Thermomagnetic TMF Release: Equipped with a dependable thermomagnetic trip unit featuring fixed thermal and magnetic thresholds for straightforward, reliable fault interruption.

• 3-Pole Configuration: Engineered specifically for standard three-phase power distribution networks.

• High Interrupting Rating: Delivers UL489 short-circuit interrupting ratings up to 100 kA at 240 V AC, 35 kA at 480 V AC, and 22 kA at 600 V AC.

• Exceptional Durability: Built to withstand up to 25,000 mechanical operating cycles and 8,000 electrical operating cycles.

• ABB EcoSolutions: Designed with sustainable manufacturing principles, featuring a 56.3% recyclability rate according to EN45555 and UL 2799 Zero Waste to Landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT4S 225 TMF 3P

• Extended Product Type: XT4S 250 TMF 225-2250 3p F F UL/CSA

• Product ID: 1SDA080146R1

• Order Code / US & Canada Code: XT4SU3225AFF000XXX

• EAN: 8015644866754

• Product Name: Moulded Case Circuit Breaker (MCCB)

• Product Type: Automatic Circuit Breaker

• Rated Current (In): 225 A

• Rated Uninterrupted Current (Iu): 250 A

• Number of Poles: 3P

• Release: TMF

• Release Type: Thermomagnetic (TM)

• Current Type: AC/DC

• Rated Operational Voltage: 600 V AC / 600 V DC

• Rated Instantaneous Short-Circuit Current Setting (Ii): 2250 A

• Short-Circuit Performance Level: S

• Interrupting Rating acc. to UL489: (240 V AC) 100 kA, (480 V AC) 35 kA, (600 V AC) 22 kA, (250 V DC – 2P) 42 kA, (600 V DC – 3P) 50 kA

• Mechanical Durability: 25,000 cycles

• Electrical Durability: 8,000 cycles

• Terminal Connection Type: Front

• Standards: UL 489

• Dimensions (W x H x D): 105 mm x 160 mm x 82.5 mm

• Weight: 2.5 kg (Product Net Weight)

Conclusion

The ABB XT4S 225A 3 Pole TMF UL/CSA MCCB offers reliable power distribution and circuit protection for industrial and commercial electrical systems. Featuring a robust thermomagnetic release unit, strong interrupting ratings, and a compact three-pole structure, it ensures maximum safety, accuracy, and operational uptime at the best price in Bangladesh.
