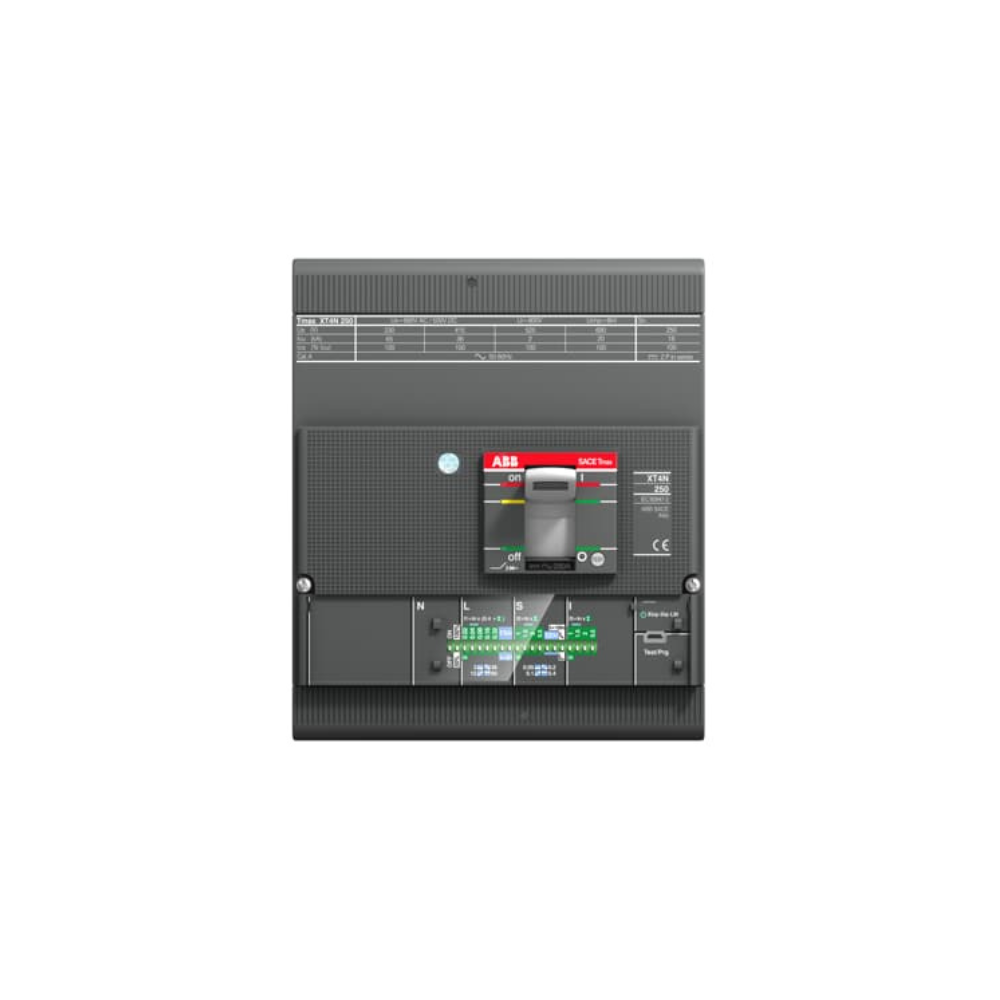

ABB XT4S 250 Ekip I 250A 4 Pole Power Distribution MCCB BD

Description

Product Name: ABB XT4S 250 Ekip I 250A 4 Pole Power Distribution MCCB BD

Manufacturer: ABB

Product Description

The ABB SACE Tmax XT4S 250 Ekip I 250A 4 Pole Moulded Case Circuit Breaker (MCCB) is designed for AC power distribution systems. Equipped with an Ekip I solid-state electronic release unit, this fixed four-pole circuit breaker features front terminals and is suitable for commercial and industrial electrical installations.

Key Features

• Ekip I Electronic Release: Equipped with an Ekip I solid-state electronic release unit for AC power distribution applications.

• 4-Pole Configuration: Designed for four-pole AC power distribution systems.

• Durability: Rated for 8,000 electrical operating cycles and 25,000 mechanical operating cycles.

• AC Compatibility: Supports alternating current operational requirements up to 690 V AC.

• SACE Tmax XT Series: Member of ABB’s SACE Tmax XT moulded case circuit breaker family.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT4S 250 Ekip I

• Product ID: 1SDA068500R1

• Order Code US and Canada: XT4SE4250JFF000XXX

• Product Type: Moulded Case Circuit Breaker (MCCB)

• Rated Current (In): 250 A

• Current Type: AC

• Number of Poles: 4P

• Trip Unit Type: Ekip I Electronic Release

• Rated Operational Voltage: 690 V AC

• Rated Frequency (f): 50 / 60 Hz

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Power Loss: 16.4 W per pole

• Version: Fixed (F)

• Terminal Type: Front Terminals

• Terminal Connection Type: Front

• Dimensions (W x H x D): 140 mm x 160 mm x 82.5 mm

• Weight: 3.5 kg

• Country of Origin: Italy

Conclusion

The ABB SACE Tmax XT4S 250 Ekip I 250A 4 Pole MCCB is designed for AC power distribution systems. Its Ekip I solid-state electronic release, fixed four-pole configuration, and front terminal design make it suitable for commercial and industrial electrical installations.
