ABB XT5HU340ADFF000XXX 400A 3 Pole Switch Disconnector Price in Bangladesh

Description

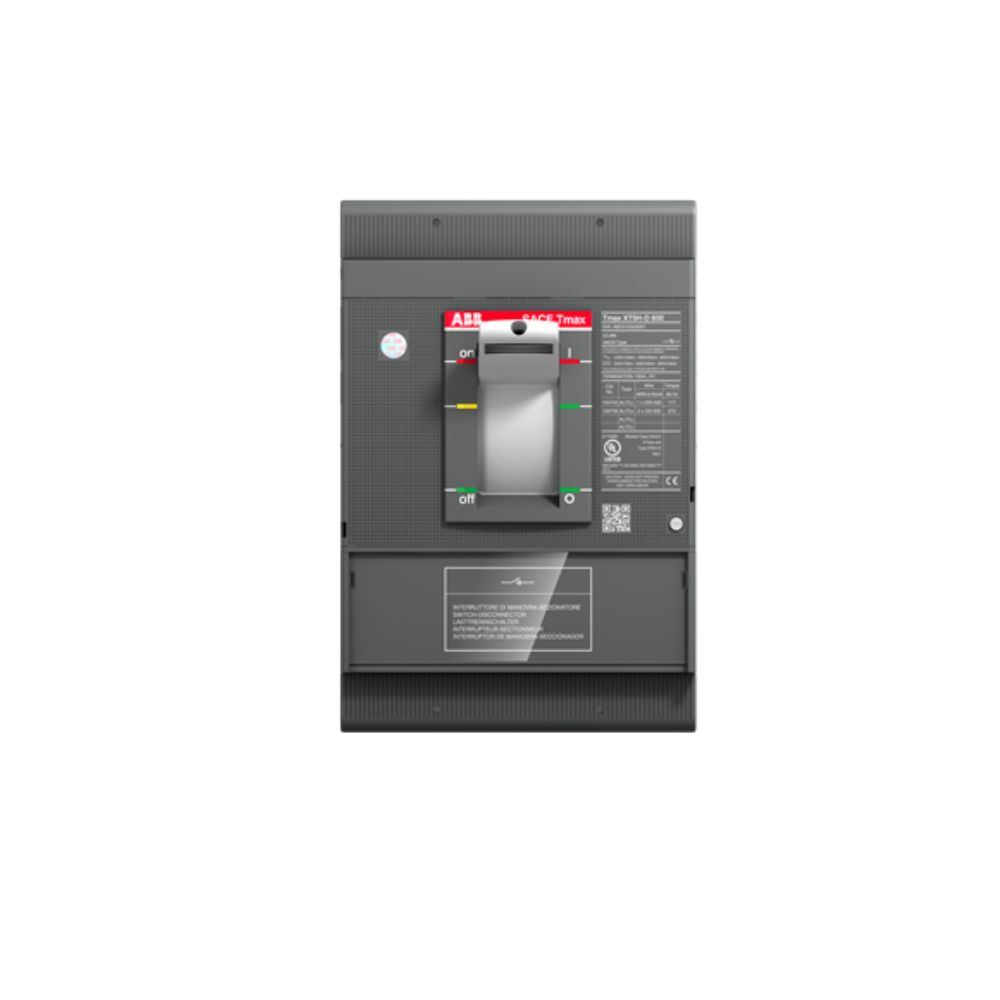

Product Name: ABB XT5HU340ADFF000XXX 400A 3 Pole Switch Disconnector Price in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT5HU340ADFF000XXX 400A 3 Pole Switch-Disconnector is engineered for power distribution and isolation applications. Part of the SACE Tmax XT series, this fixed three-pole UL certified switch-disconnector features front terminals, a 400A rated uninterrupted current, and a short-circuit performance level H. It provides switching and isolation capabilities for electrical installations across Bangladesh.

Key Features

• 3-Pole Configuration: Designed for three-pole electrical systems.

• Switch-Disconnector Functionality: Acts as a reliable switch-disconnector for safe circuit isolation under load.

• High Interruption Rating: Delivers superior interrupting ratings up to 150 kA at 240 V AC and 65 kA at 480 V AC under UL489 standards.

• Exceptional Durability: Built to withstand up to 20,000 mechanical operating cycles at 120 cycles per hour.

• SACE Tmax XT Series: Part of ABB’s SACE Tmax XT series.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT5H-D 400 MCS 3p F F UL/CSA

• Order Code (US and Canada): XT5HU340ADFF000XXX

• Product ID: 1SDA102663R1

• Product Type: Switch Disconnector

• Rated Current (In): 400 A

• Rated Uninterrupted Current (Iu): 400 A

• Number of Poles: 3P

• Current Type: AC/DC

• Rated Operational Voltage: 600 V

• Short-Circuit Performance Level: H

• Interrupting Rating (UL489): (240 V AC) 150 kA, (480 V AC) 65 kA, (600 V AC) 35 kA

• Version: Fixed (F)

• Terminal Connection Type: Front

• Standards: UL489

• Dimensions (W x H x D): 140 mm x 205 mm x 103.5 mm

• Weight: 4.304 kg

Conclusion

The ABB XT5HU340ADFF000XXX 400A 3 Pole Switch-Disconnector is designed for power distribution systems requiring switching and isolation under strict UL standards. Its three-pole layout, high interruption ratings, and front terminal configuration make it suitable for electrical installations in Bangladesh.
