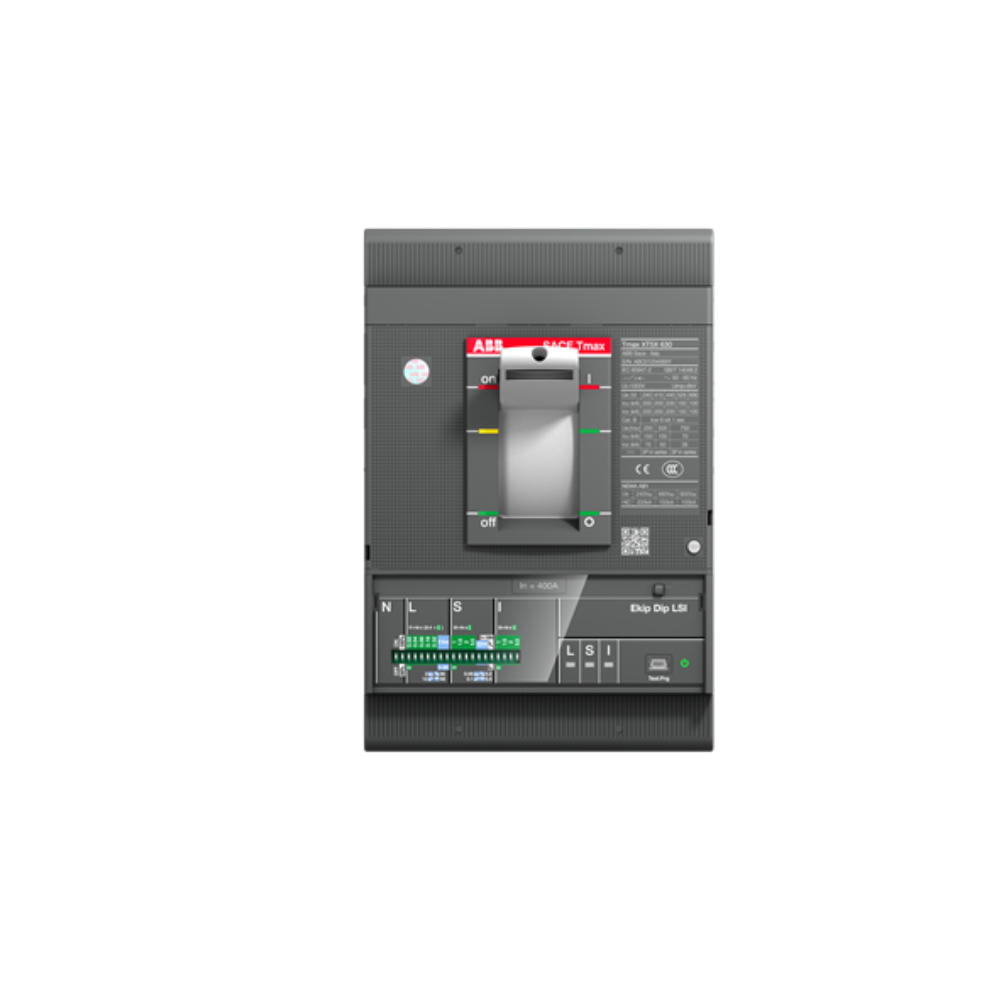

ABB XT6S 800 Ekip Dip LS/I 800A 3 Pole UL MCCB Buy in Bangladesh

Description

Product Name: ABB XT6S 800 Ekip Dip LS/I 800A 3 Pole UL MCCB Buy in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT6S 800 Ekip Dip LS/I 800A 3 Pole UL MCCB is engineered for high-capacity power distribution and circuit protection applications under UL 489 standards. Part of the SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, an 800A rated current, and an electronic Ekip Dip LS/I solid-state release unit. It provides reliable overload and short-circuit protection for heavy-duty commercial and industrial electrical installations across Bangladesh.

Key Features

• Solid-State Electronic Release (Ekip Dip LS/I): Features an Ekip Dip LS/I electronic trip unit providing long-time, short-time, and instantaneous protection (LSI).

• 3-Pole Configuration: Designed for three-phase power distribution circuits.

• High Breaking Capacity & Interruption Ratings: Delivers ultimate short-circuit breaking capacities up to 85 kA at 220/240 V AC and UL interrupting ratings up to 100 kA at 240 V AC, 50 kA at 480 V AC, and 25 kA at 600 V AC.

• Exceptional Durability: Built to withstand up to 20,000 mechanical operating cycles.

• SACE Tmax XT Series: Part of ABB’s trusted moulded case circuit breaker family designed for high-performance industrial environments.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT6S 800 Ekip Dip LS/I 800 3p F F UL/CSA

• Extended Product Type: XT6S 800 Ekip Dip LS/I 800 3p F F UL/CSA

• Product ID: 1SDA102847R1

• Order Code: XT6SU3800EFF000XXX

• EAN: 8015644033583

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 3P

• Release: Ekip Dip LS/I

• Release Type: Electronic (EL)

• Rated Operational Voltage: 600 V AC

• Short-Circuit Performance Level: S

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 85 kA, (380/415 V AC) 50 kA, (440 V AC) 45 kA, (500/525 V AC) 35 kA, (690 V AC) 22 kA

• Interrupting Rating (UL 489): (240 V AC) 100 kA, (480 V AC) 50 kA, (600 V AC) 25 kA

• Mechanical Durability: 20,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: UL 489

• Dimensions (W x H x D): 210 mm x 268 mm x 103.5 mm

• Weight: 9.5 kg (Product Net Weight)

Conclusion

The ABB XT6S 800 Ekip Dip LS/I 800A 3 Pole UL MCCB is designed for heavy-duty power distribution systems requiring advanced electronic trip units and robust short-circuit performance under UL standards. Its three-pole layout, high ampere rating, and Ekip Dip LS/I release make it ideal for major industrial and commercial electrical setups in Bangladesh.
