ABB XT6S 800A 4 Pole Ekip Dip LS/I IEC MCCB Supplier in Bangladesh

Description

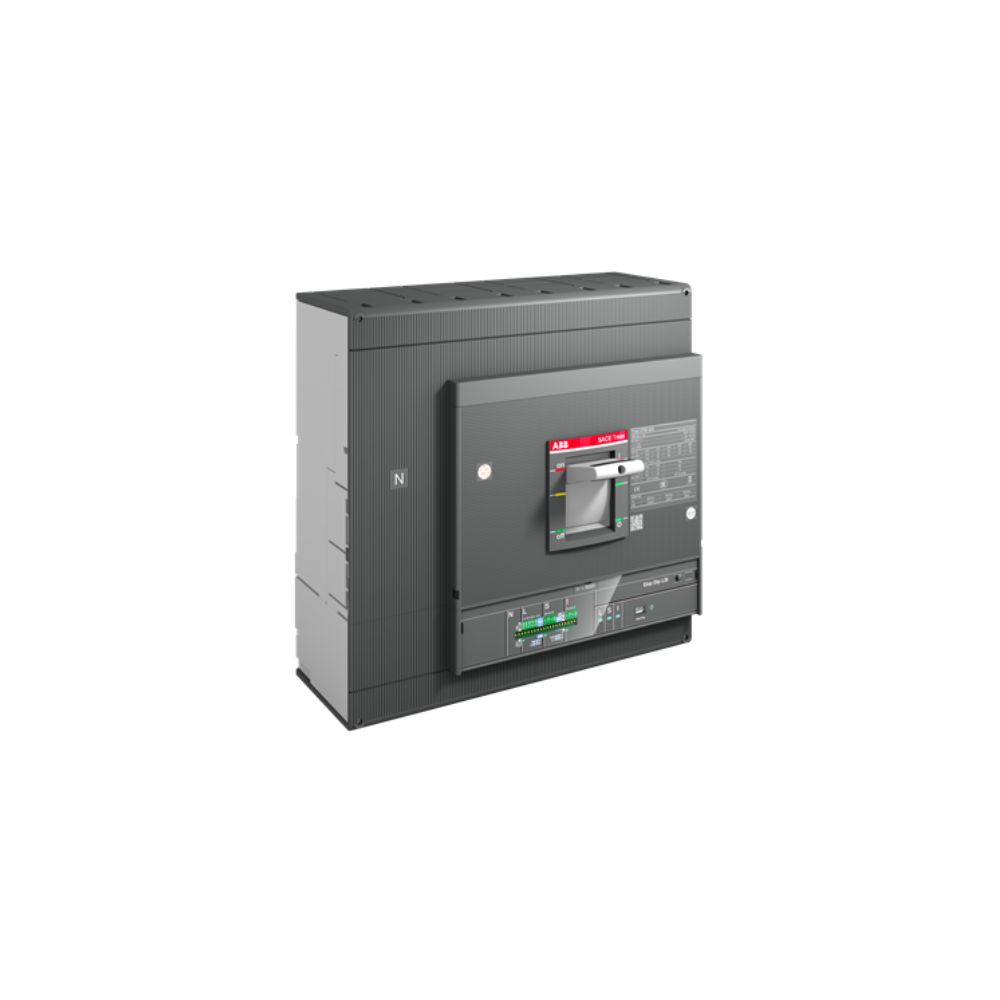

Product Name: ABB XT6S 800A 4 Pole Ekip Dip LS/I IEC MCCB Supplier in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT6S 800A 4 Pole Ekip Dip LS/I IEC MCCB is engineered for high-capacity power distribution and circuit protection under IEC 60947-2 standards. Part of the SACE Tmax XT series, this fixed four-pole automatic circuit breaker features front terminals, an 800A rated current, and an advanced electronic Ekip Dip LS/I solid-state release unit. It provides reliable long-time, short-time, and instantaneous protection (LSI) for heavy-duty industrial and commercial four-wire electrical installations.

Key Features

• Solid-State Electronic Release (Ekip Dip LS/I): Equipped with an Ekip Dip LS/I electronic trip unit delivering precise long-time, short-time, and instantaneous protection parameters.

• 4-Pole Configuration: Engineered specifically for four-wire three-phase power distribution networks requiring neutral protection.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 85 kA at 220/230/240 V AC and 50 kA at 380/415 V AC.

• Exceptional Durability: Built to withstand up to 20,000 mechanical operating cycles and 5,000 electrical operating cycles.

• ABB EcoSolutions: Designed with sustainable manufacturing practices, featuring a 60% recyclability rate according to EN45555 and zero waste to landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT6S 800A Ekip Dip LS/I 4P

• Extended Product Type: XT6S 800 Ekip Dip LS/I In=800 4p F F

• Product ID: 1SDA100754R1

• Order Code / US & Canada Code: XT6SE4800EFF000XXX

• EAN: 8056221008082

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 4P

• Release: Ekip Dip LS/I

• Release Type: Electronic (EL)

• Current Type: AC

• Rated Frequency: 50/60 Hz

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Rated Short-Time Withstand Current (Icw): 10 kA

• Short-Circuit Performance Level: S

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 85 kA, (380/415 V AC) 50 kA, (440 V AC) 45 kA, (500/525 V AC) 35 kA, (690 V AC) 22 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (220/230/240 V AC) 85 kA, (380/415 V AC) 50 kA, (440 V AC) 45 kA, (500/525 V AC) 35 kA, (690 V AC) 22 kA

• Mechanical Durability: 20,000 cycles

• Electrical Durability: 5,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC 60947-2

• Dimensions (W x H x D): 280 mm x 268 mm x 103.5 mm

• Weight: 12 kg (Product Net Weight)

Conclusion

The ABB XT6S 800A 4 Pole Ekip Dip LS/I IEC MCCB offers robust, high-performance circuit protection for demanding industrial and commercial power systems. Featuring a four-pole setup and an advanced electronic LSI trip unit, it ensures superior safety, operational continuity, and accurate fault management.
