ABB XT7H 1200 Ekip Dip LSIG 1200A 3 Pole MCCB BD Distributor

Description

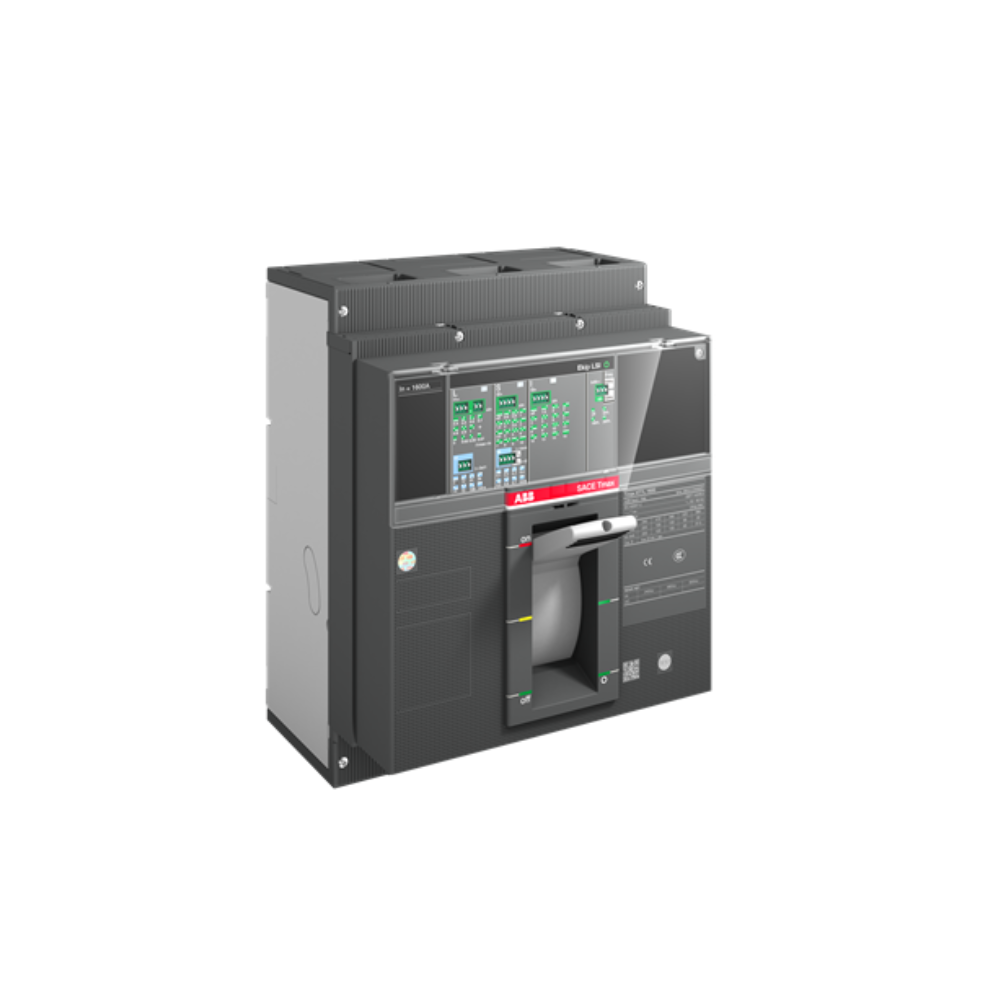

Product Name: ABB XT7H 1200 Ekip Dip LSIG 1200A 3 Pole MCCB BD Distributor

Manufacturer: ABB

Product Description

The ABB XT7H 1200 Ekip Dip LSIG 1200A 3 Pole Moulded Case Circuit Breaker is designed for high-capacity low-voltage power distribution systems requiring reliable overload, short-circuit, and ground fault protection. As a key component of the SACE Tmax XT series, this unit features an electronic Ekip Dip LSIG solid-state release for precise protection settings. Engineered with a fixed-design configuration and front-terminal connectivity, it ensures robust performance and seamless integration into heavy-duty industrial switchboards.

Key Features

• 3-Pole Fixed Configuration: Designed for three-phase power distribution with a durable fixed-mounting architecture.

• Electronic Protection: Equipped with an Ekip Dip LSIG solid-state release for precise settings of Long time delay, Short time delay, Instantaneous, and Ground fault protection.

• High Operational Reliability: Rated for a mechanical durability of 10,000 cycles, ensuring long-term service in critical infrastructure.

• Front Terminal Connectivity: Features standard front terminals, facilitating straightforward installation in diverse panel environments.

• Lever Operating Mechanism: Includes a reliable manual lever mechanism for secure operational control.

• Robust Standards: Manufactured in compliance with UL489 standards for global safety and performance.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT7H 1200 Ekip Dip LSIG 1200A 3p

• Product ID: 1SDA102955R1

• Product Type: Automatic Circuit Breaker

• Version: F

• Current Type: AC

• Short-Circuit Performance Level: H

• Standards: UL489

• Terminal Connection: Front

• Mounting Type: Fixed

• Rated Current (In): 1200 A

• Number of Poles: 3P

• Release: Ekip Dip LSIG

• Release Type: Electronic (EL)

• Rated Operational Voltage: 600 V AC

• Frequency: 50/60 Hz

• Power Loss: 53 W per pole

• Dimensions (W x H x D): 210 mm x 268 mm x 178 mm

• Weight: 9.7 kg

Conclusion

The ABB XT7H 1200 Ekip Dip LSIG 1200A 3 Pole MCCB offers exceptional precision and high-capacity protection for industrial electrical distribution systems. With its advanced electronic LSIG trip unit and durable mechanical design, it provides the safety and operational control required for critical industrial and commercial electrical environments in Bangladesh.
