ABB XT7H 800A 3 Pole Ekip Touch LSI IEC MCCB Buy Online BD

Description

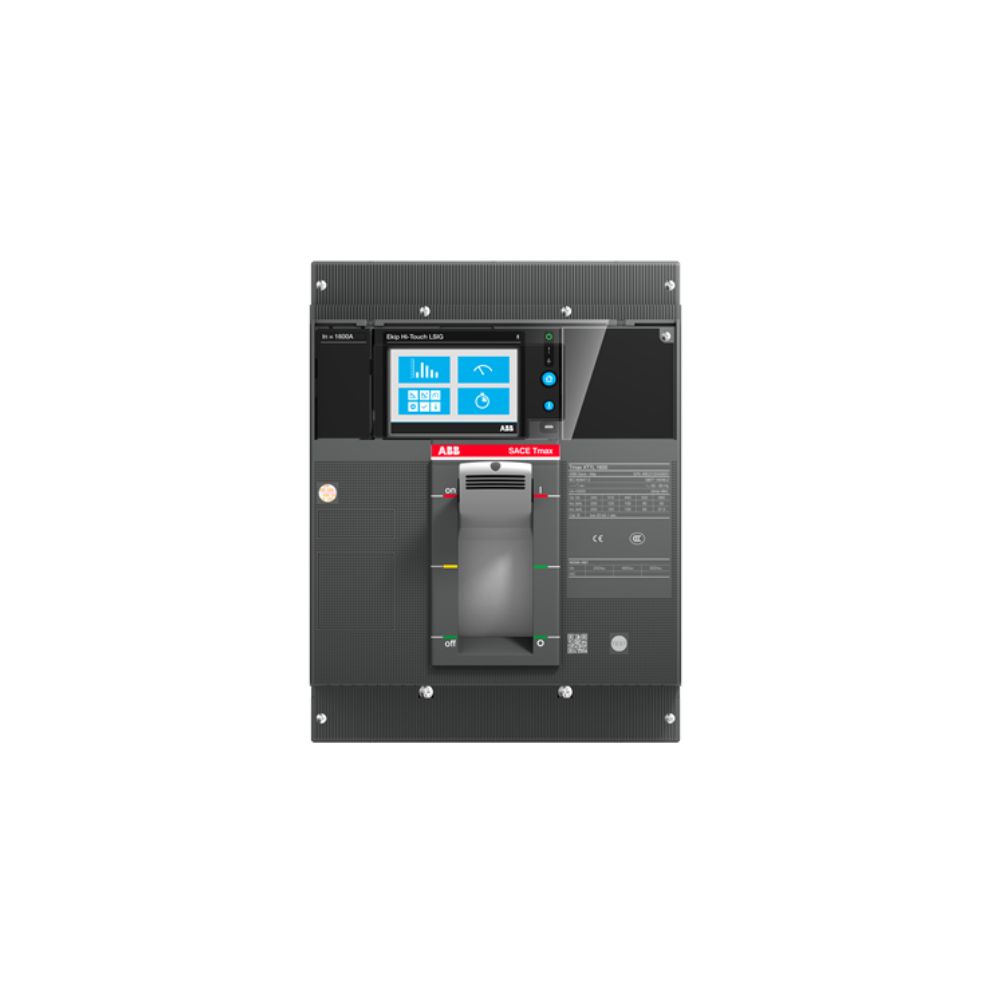

Product Name: ABB XT7H 800A 3 Pole Ekip Touch LSI IEC MCCB Buy Online BD

Manufacturer: ABB

Product Description

The ABB XT7H 800A 3 Pole Ekip Touch LSI IEC MCCB is engineered for high-capacity power distribution and circuit protection under IEC 60947-2 standards. Part of the advanced SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a lever operating mechanism, an 800A rated current, and an advanced electronic Ekip Touch LSI solid-state release unit. It provides high-precision long-time, short-time, and instantaneous protection for heavy-duty industrial and commercial electrical installations across Bangladesh.

Key Features

• Ekip Touch LSI Electronic Release: Equipped with an advanced Ekip Touch LSI electronic trip unit for precise protection, measurement, and parameter configuration.

• 3-Pole Configuration: Engineered specifically for three-phase power distribution networks.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 100 kA at 220/230/240 V AC and 70 kA at 380/415 V AC.

• Exceptional Durability: Built to withstand up to 10,000 mechanical operating cycles and 3,000 electrical operating cycles.

• ABB EcoSolutions: Designed with sustainable manufacturing practices, featuring a 64.1% recyclability rate according to EN45555 and zero waste to landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT7H 800A Ekip Touch LSI 3P

• Extended Product Type: XT7H 800 Ekip Touch LSI In=800A 3p F F

• Product ID: 1SDA100902R1

• Order Code / US & Canada Code: XT7HE380CPFF000XXX

• EAN: 8056221009560

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 3P

• Release: Ekip Touch LSI

• Release Type: Electronic (EL)

• Current Type: AC

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Rated Short-Time Withstand Current (Icw): 20 kA

• Short-Circuit Performance Level: H

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 100 kA, (380/415 V AC) 70 kA, (440 V AC) 65 kA, (500/525 V AC) 50 kA, (690 V AC) 42 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (220/230/240 V AC) 100 kA, (380/415 V AC) 70 kA, (440 V AC) 65 kA, (500/525 V AC) 50 kA, (690 V AC) 42 kA

• Mechanical Durability: 10,000 cycles

• Electrical Durability: 3,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC 60947-2

• Dimensions (W x H x D): 210 mm x 268 mm x 166 mm

• Weight: 9.7 kg (Product Net Weight)

Conclusion

The ABB XT7H 800A 3 Pole Ekip Touch LSI IEC MCCB offers advanced power distribution control and high-performance circuit protection for demanding industrial grids. Featuring a state-of-the-art Ekip Touch LSI release unit, high breaking capacities, and a robust three-pole structure, it guarantees maximum accuracy, safety, and operational continuity.
