ABB XT7S M 800A 3 Pole Ekip Dip LSI IEC MCCB Buy Online in Bangladesh

Description

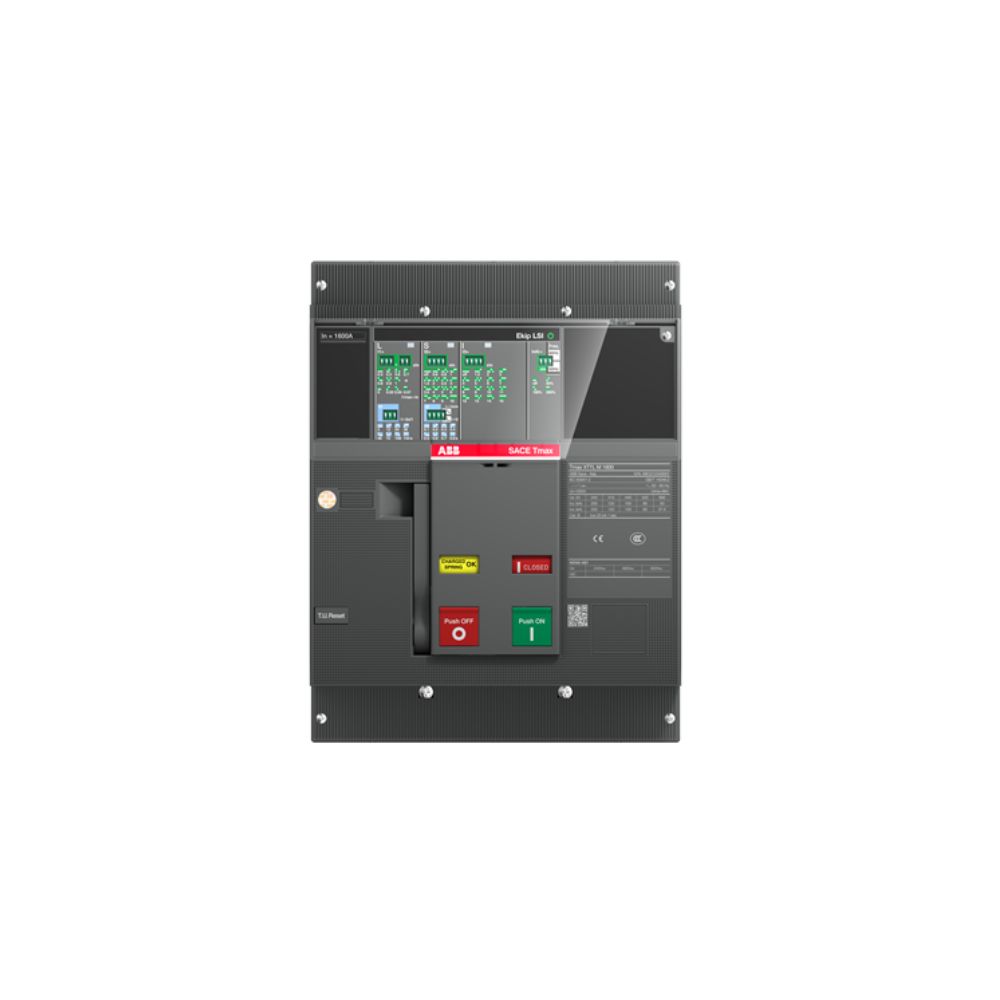

Product Name: ABB XT7S M 800A 3 Pole Ekip Dip LSI IEC MCCB Buy Online in Bangladesh

Manufacturer: ABB

Product Description

The ABB XT7M S 800A 3 Pole Ekip Dip LSI IEC MCCB is engineered for high-capacity power distribution and circuit protection under IEC 60947-2 standards. Part of the advanced SACE Tmax XT series, this fixed three-pole automatic circuit breaker features front terminals, a stored energy operating mechanism, an 800A rated current, and an electronic Ekip Dip LSI solid-state release unit. It provides reliable long-time, short-time, and instantaneous protection for heavy-duty industrial and commercial electrical installations across Bangladesh.

Key Features

• Solid-State Electronic Release (Ekip Dip LSI): Equipped with an Ekip Dip LSI electronic trip unit providing precise long-time, short-time, and instantaneous protection parameters.

• Stored Energy Operating Mechanism: Features a spring-charged stored energy mechanism for fast, reliable opening and closing operations.

• 3-Pole Configuration: Engineered specifically for three-phase power distribution networks.

• High Breaking Capacity: Delivers ultimate short-circuit breaking capacities up to 85 kA at 220/230/240 V AC and 50 kA at 380/415/440 V AC.

• Exceptional Durability: Built to withstand up to 20,000 mechanical operating cycles and 3,000 electrical operating cycles.

• ABB EcoSolutions: Designed with sustainable manufacturing practices, featuring a 64.1% recyclability rate according to EN45555 and zero waste to landfill validation.

Technical Specifications

• Brand: ABB

• Series: SACE Tmax XT

• Model: XT7S M 800A Ekip Dip LSI 3P

• Extended Product Type: XT7S M 800 Ekip Dip LSI In=800A 3p F F

• Product ID: 1SDA101370R1

• Order Code / US & Canada Code: XSECCFAZZAAAA00000

• EAN: 8056221011884

• Product Type: Automatic Circuit Breaker (Moulded Case Circuit Breaker)

• Rated Current (In): 800 A

• Rated Uninterrupted Current (Iu): 800 A

• Number of Poles: 3P

• Release: Ekip Dip LSI

• Release Type: Electronic (EL)

• Current Type: AC

• Rated Operational Voltage: 690 V AC

• Rated Insulation Voltage (Ui): 1000 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Rated Short-Time Withstand Current (Icw): 20 kA

• Short-Circuit Performance Level: S

• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220/230/240 V AC) 85 kA, (380/415/440 V AC) 50 kA, (500/525 V AC) 45 kA, (690 V AC) 30 kA

• Rated Service Short-Circuit Breaking Capacity (Ics): (220/230/240 V AC) 85 kA, (380/415/440 V AC) 50 kA, (500/525 V AC) 45 kA, (690 V AC) 30 kA

• Mechanical Durability: 20,000 cycles

• Electrical Durability: 3,000 cycles

• Terminal Connection Type: Front Terminals (Fixed Version)

• Standards: IEC 60947-2

• Dimensions (W x H x D): 210 mm x 268 mm x 178 mm

• Weight: 11 kg (Product Net Weight)

Conclusion

The ABB XT7M S 800A 3 Pole Ekip Dip LSI IEC MCCB offers heavy-duty power distribution and high-performance circuit protection for demanding industrial grids. Featuring a stored energy mechanism, an advanced electronic trip unit, and robust breaking capacities, it guarantees maximum safety, precision, and operational continuity.
