APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8681)

Description

Product Name: APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8681)

Manufacturer: APC (Schneider Electric)

Product Overview

The APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 11.0kW, 230V, 21 C13 and 3 C19 outlet (Model: AP8681) is an enterprise-class, intelligent power distribution unit engineered for high-density IT environments. It provides advanced, user-customizable power control alongside individual outlet-level power metering. Delivering an 11,000 VA (11.0 kW rated capacity) load capacity with a 3-phase 400V input and 230V output, this 0U vertical rack PDU features 21 × IEC C13 and 3 × IEC C19 outlets. It supports remote power recycling, power sequencing, and real-time remote monitoring via secure Web, SNMP, or Telnet interfaces.

Key Features and Benefits

• Metered-by-Outlet with Switching: Offers individual outlet power metering and remote on/off switching capabilities to reboot locked-up equipment and prevent unauthorized use of specific outlets.

• Active Power Monitoring: Delivers real-time monitoring of volts, amps, real power (kW), and energy (kWh) with ±3% metering accuracy to optimize energy consumption and capacity planning.

• Power Sequencing Delays: Allows administrators to define precise power-up and power-down sequences for connected devices to prevent inrush current overloads and prioritize load shedding during recovery.

• Secure Network Management: Integrates easily with EcoStruxure IT and centralized management platforms via secure Web, SNMP, or Telnet interfaces.

• Locking Receptacles: Compatible with locking power cords to reduce the risk of accidental cord disconnections and dropped loads.

• 0U Vertical Rack Integration: Designed for space-saving, tool-less vertical mounting on the side of standard server enclosures.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8681 (NetShelter Switched & Metered-by-Outlet PDU 2G)

• Product Type: Switched Metered Outlet Rack PDU

• Rack Units: 0U Vertical (Side Mount, Tool-less)

• Main Input Voltage: 400V 3-phase

• Main Output Voltage: 230V

• Input Frequency: 50/60 Hz

• Input Current Limits / Line Rated Current: 16A per phase

• Load Capacity: 11000 VA (11.0 kW)

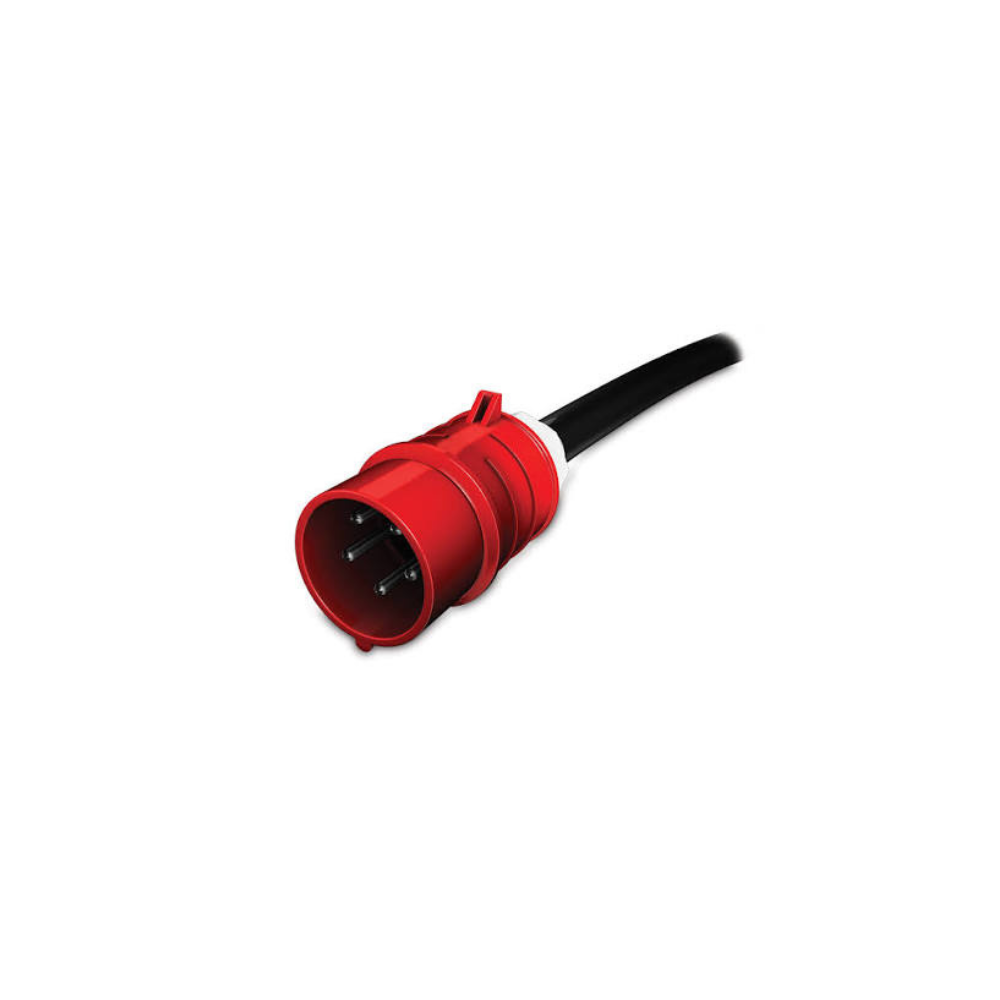

• Input Connection Type: IEC 60309 16A / 20A, 3P+N+PE (with 5.9 ft / 1.8 m cable)

• Output Outlets: 21 × IEC 60320 C13 and 3 × IEC 60320 C19

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 1829 mm × 56 mm × 51 mm (72.01 in × 2.20 in × 2.01 in)

• Net Weight: 8.23 kg (18.14 lb)

• Standards & Certifications: cUL Listed, UL Listed, VDE, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003

• Compliance: RoHS, REACh

Ideal Applications

• High-Density Data Centers and Colocation Facilities

• Enterprise Server Rooms Requiring Individual Outlet Control and Metering

• Mission-Critical IT Racks Requiring Automated Power Sequencing and Load Shedding

• Remote Edge IT Closets Managed via Web or SNMP Infrastructure

Conclusion

The APC NetShelter Metered-by-Outlet with Switching Rack PDU AP8681 combines an 11.0 kW 3-phase load capacity with a space-saving 0U vertical form factor, 24 outlets (21 × C13 and 3 × C19), and granular outlet-level switching, making it an advanced power distribution solution for high-performance data centers.
