APC NetShelter Metered Rack PDU Price in Bangladesh (AP8888)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8888)

Manufacturer: APC (Schneider Electric)

Product Overview

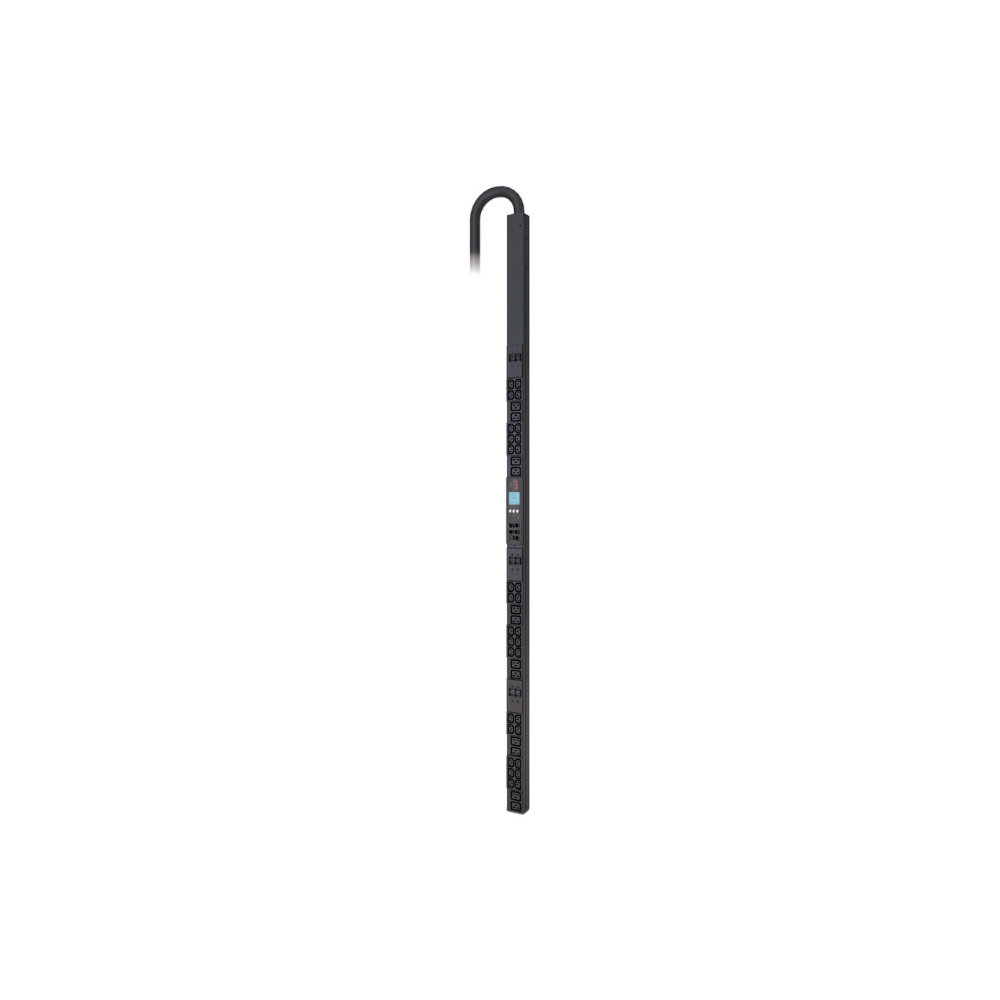

The APC NetShelter Metered Rack PDU 2G (Model: AP8888), manufactured by Schneider Electric, is designed to deliver high-capacity power distribution, active electrical metering, and robust circuit protection for high-density enterprise environments. Featuring a space-saving 0U vertical form factor, a 23000 VA (23.0 kVA) load capacity operating on a 3-phase 400V input, and 42 total outlets (30 x IEC C13 and 12 x IEC C19), this metered PDU supplies real-time power utilization data and user-defined overload alarms to help data center managers optimize energy performance across Bangladesh.

Key Features and Benefits

• High-Capacity 3-Phase Power Distribution: Configured with a 23000 VA load capacity and a 3-phase 400V input to handle power-hungry enterprise data center architectures.

• Extensive Outlet Configuration: Equipped with 42 total power socket outlets, comprising 30 IEC C13 ports and 12 IEC C19 ports, to support diverse server and networking hardware setups.

• Active Metering & Monitoring: Provides real-time tracking of connected loads and power utilization to assist administrators with energy optimization and right-sizing IT environments.

• User-Defined Alarm Thresholds: Features customizable alerts to warn of potential circuit overloads before critical IT failures occur.

• Environmental & Security Integration: Includes a dedicated temperature/humidity sensor port, locking IEC receptacles, and ultra-low-profile circuit breakers for enhanced infrastructure safety.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving valuable horizontal rack space and keeping airflow unobstructed.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8888 (2G Series)

• Product Type: Metered Rack PDU

• GTIN: 731304289944

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 400 V (3 Phase)

• Output Voltage: 240 V

• Load Capacity: 23000 VA (23.0 kVA)

• Input Current Limits: 40 A

• Line Rated Current: 32 A

• Maximum Total Current Draw per Phase: 32 A

• Input Connection Type: IEC 60309 60 A 3P+N+E

• Number of Outlets: 42 Total (30 x IEC C13, 12 x IEC C19)

• Protection Type: Circuit Breaker

• Cable Length: 5.97 ft (1.82 m)

• Dimensions (H x W x D): 72.0 in x 2.2 in x 2.0 in (1829 mm x 56 mm x 51 mm)

• Net Weight: 22.3 lb (10.1 kg)

• Warranty: 24 Months

Ideal Applications

• Enterprise Data Centers and Large-Scale Server Rooms

• High-Density Core Networking Switch, Router, and Blade Server Racks

• Mission-Critical Telecom Distribution Hubs

• Large Cloud Infrastructure and Modular Data Center Cabinets

Conclusion

Ultimately, the APC NetShelter Metered Rack PDU AP8888 delivers high-capacity 23000 VA (23.0 kVA) power distribution, active electrical metering, and space-saving 0U vertical integration for demanding network installations across Bangladesh, keeping critical data center hardware properly monitored and efficiently managed.
