Description

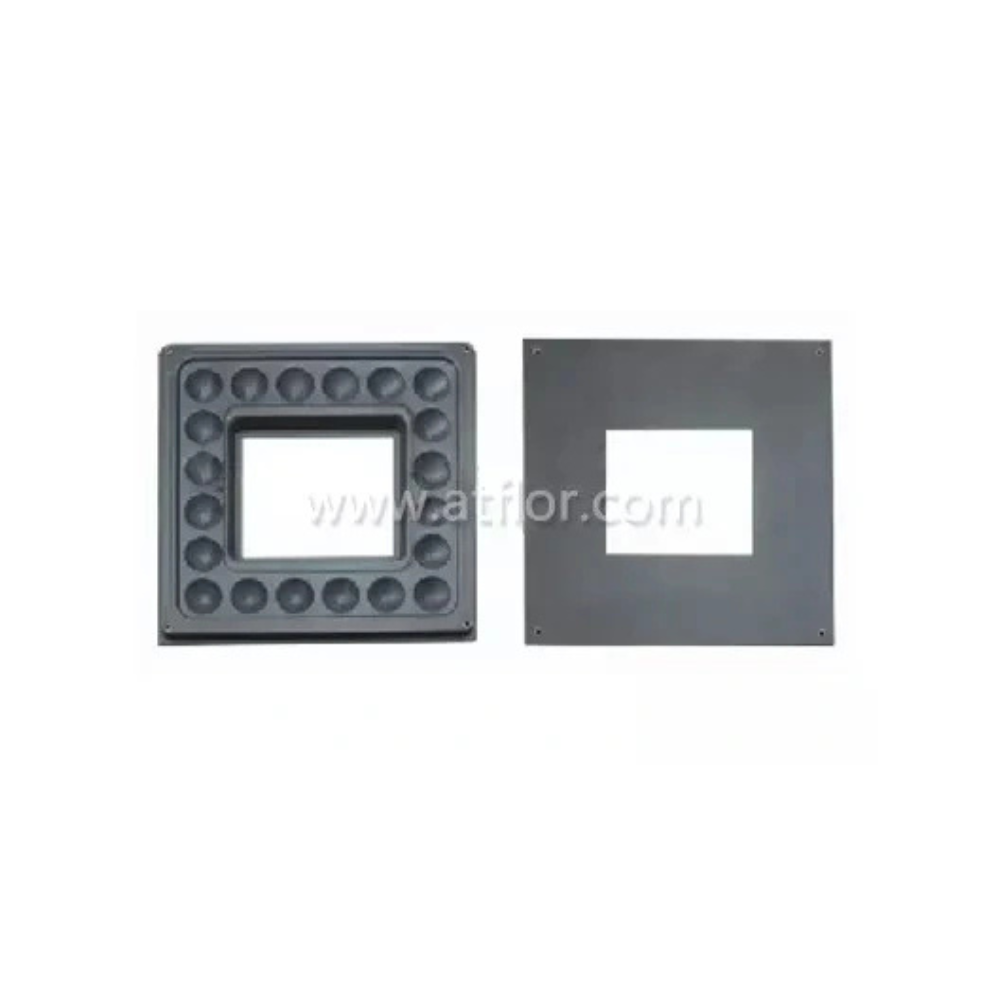

Product Name: ATFLOR Bare Steel Raised Access Floor with Grommet Hole Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The ATFLOR Bare Steel Raised Access Floor with Grommet Hole is specially designed for 5A office buildings and intelligent office rooms, offering flexible installation as required. Designed with sound-proof characteristics and compatible with antistatic PVC or carpet finishing tiles, it provides a comfortable walking surface.
This system delivers sealing properties optimized for under-floor air-conditioning systems and features optional corner lock holes to accommodate various covering options such as carpet, PVC, and wood floor. The product series ranges from FS440 to FS1000 with panel sizes available in 500 × 500 × 28 mm or 600 × 600 × 34 mm.
Key Features
-
Grommet Hole Configuration: Available with a grommet-hole configuration for practical floor-level cable access.
-
Intelligent Office Design: Custom-tailored for 5A office buildings and smart office rooms requiring flexible raised-floor installations.
-
Acoustic & Comfort Properties: Designed with sound-proof characteristics and compatible with antistatic PVC or carpet finishing tiles for a comfortable walking surface.
-
HVAC Sealing Properties: Delivers sealing performance designed to support under-floor air-conditioning systems.
-
Dual Panel Size Options: Available in size configurations of 500 × 500 × 28 mm or 600 × 600 × 34 mm.
Characteristic Specifications
-
Application Scope: Suitable for 5A office buildings and intelligent office rooms requiring flexible raised-floor installation and cabling management.
-
Finishing Compatibility: Available with antistatic PVC, carpet, or wood floor options via optional corner lock hole configurations.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 100,000 Times |
| FS440 | 500×500×28 / 600×600×34 | A | $\ge 440$ | $\ge 1,960$ | $\ge 200$ | $\ge 295$ | $\ge 5,880$ | $\ge 9,272$ | 1,958 | 1,566 |
| FS662 | 500×500×28 / 600×600×34 | A | $\ge 662$ | $\ge 2,950$ | $\ge 301$ | $\ge 445$ | $\ge 8,850$ | $\ge 12,500$ | 2,946 | 2,356 |
| FS800 | 500×500×28 / 600×600×34 | A | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 500×500×28 / 600×600×34 | A | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
Conclusion
The ATFLOR Bare Steel Raised Access Floor with Grommet Hole combines Class A fire performance, HVAC sealing capability, and flexible panel sizing for 5A office buildings and intelligent office environments. By integrating structural load performance from FS440 to FS1000 with grommet hole configurations and tile compatibility, it provides an adaptable foundation for modern corporate workplaces.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
