Description
Product Name: ATFLOR Bolted Stringer Steel Raised Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

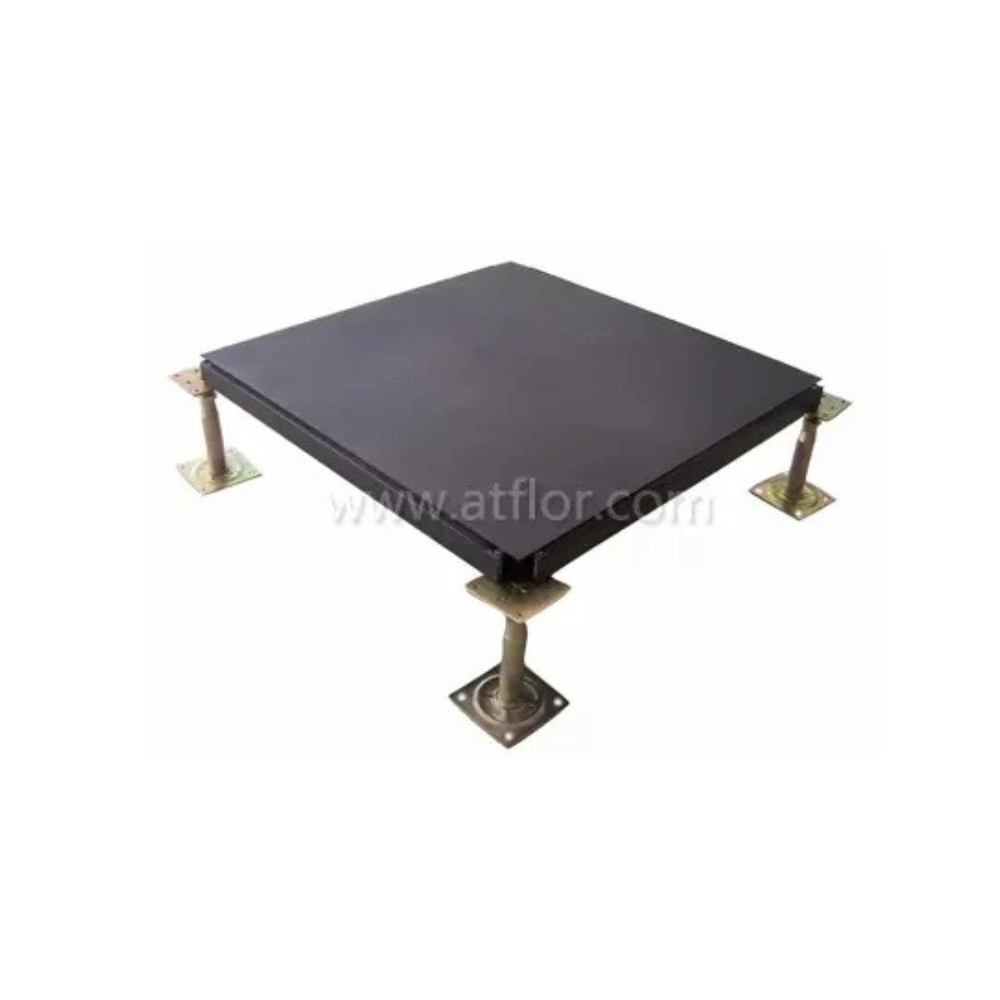

The Bolted Stringer Steel Raised Floor System features a bare finish steel design with stringers to provide a stable, safe foundation. This system is primarily recommended for installations where the finished floor height exceeds 30 cm. Designed to support effective cable management and under-floor air-conditioning, the system offers sealing properties suitable for data centers and commercial environments. Corner lock holes are optional, allowing the panels to accommodate various surface coverings such as carpet, PVC, and solid wood.
The product series (FS440 to FS2000) consists of cementitious infill welded die-casting steel panels, supported by flat-top steel pedestals adjustable from 80 mm to 1500 mm.
Key Features
-
Structural Stability: Features a bolted stringer design for increased system stability and safety.
-
Under-Floor HVAC Support: Provides sealing properties designed to facilitate under-floor air-conditioning efficiency.
-
Modular Versatility: Compatible with various covering tiles including carpet, PVC, and solid wood through optional corner lock hole configurations.
-
Adjustable Pedestal Height: Pedestals are adjustable to support heights ranging from 80 mm to 1500 mm.
-
Infrastructure Utility: Designed to manage large volumes of wiring, reducing issues related to traditional embedded wiring methods.
Characteristic Specifications
-
Panel Construction: Cementitious infill welded die-casting steel shell.
-
Application Scope: Suitable for class 5 office buildings, Security Union Plazas, Futures Trading Buildings, and general cabling or wiring projects.
-
Adaptability: Provides modular components to support the renovation of aging building floors.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS440 | 600×600×34 | A | ≥440 | ≥1,960 | ≥200 | ≥295 | ≥5,880 | ≥9,272 | 1,958 | 1,566 |
| FS662 | 600×600×34 | A | ≥662 | ≥2,950 | ≥301 | ≥445 | ≥8,850 | ≥1,250 N/m² | 2,946 | 2,356 |
| FS800 | 600×600×34 | A | ≥800 | ≥3,350 | ≥363 | ≥536 | ≥11,250 | ≥16,100 | 3,560 | 2,670 |
| FS1000 | 600×600×34 | A | ≥1,000 | ≥4,550 | ≥450 | ≥670 | ≥13,350 | ≥23,000 | 4,450 | 3,560 |
| FS1250 | 600×600×34 | A | ≥1,250 | ≥5,560 | ≥567 | ≥780 | ≥16,680 | ≥33,000 | 5,560 | 4,450 |
| FS1500 | 600×600×34 | A | ≥1,500 | ≥6,675 | ≥670 | ≥1,005 | ≥19,892 | ≥34,500 | 6,675 | 5,340 |
| FS2000 | 600×600×34 | A | ≥2,000 | ≥8,900 | ≥906 | ≥1,340 | ≥26,700 | ≥46,000 | 8,900 | 8,000 |
Pedestal & Stringer Specifications
-
Standard Pedestal Specifications:
-
FFH ≤ 600 mm: Tube Diameter 25 mm, Adjustment ±25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment ±25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 45 mm, Adjustment ±25 mm
-
Conclusion
The ATFLOR Bolted Stringer Steel Raised Floor System utilizes cementitious infill steel panels and adjustable pedestals to provide a structured approach to cable management and floor elevation. This system is engineered for use in class 5 office buildings and technical environments requiring wiring integration.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
