Description

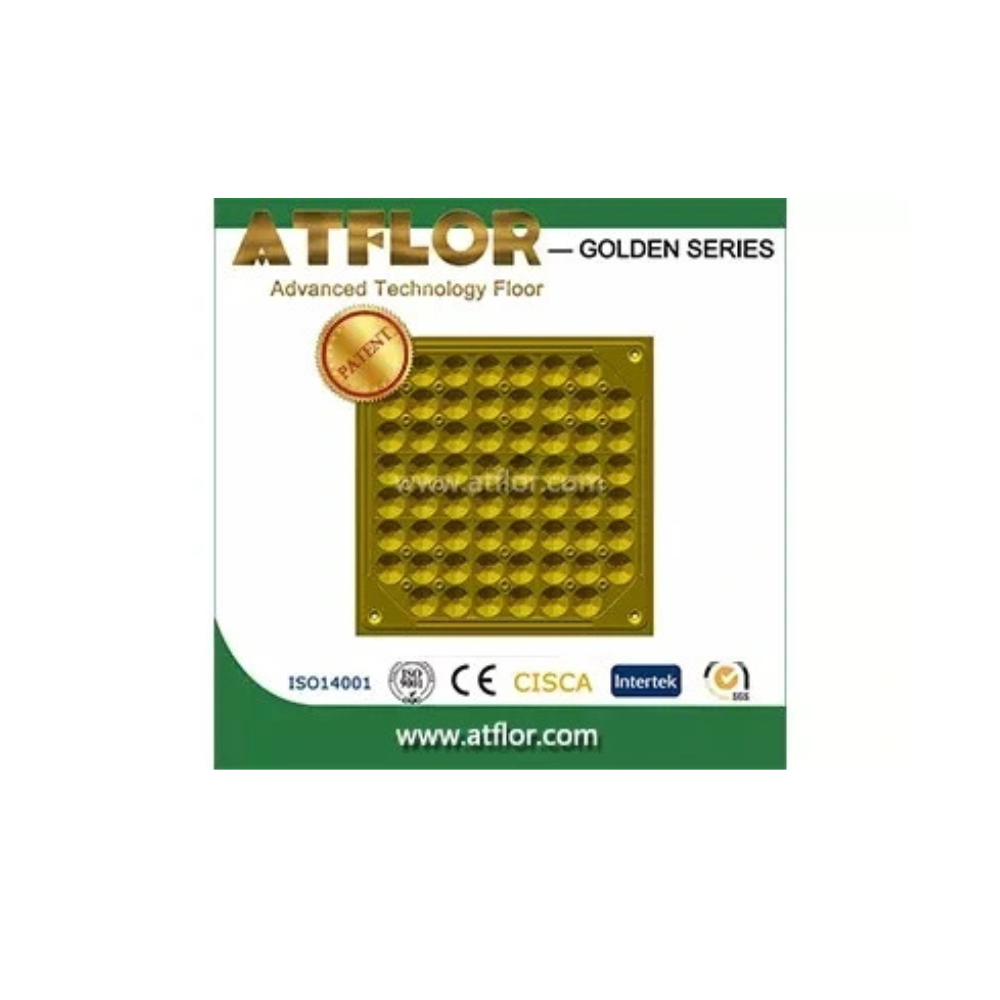

Product Name: ATFLOR Golden New Bare Finished Steel Raised Access Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The ATFLOR Golden New Bare Finished Steel Raised Access Floor System incorporates patented design features focused on simplified installation and flexible system configuration across models ranging from FS800 to FS2000. ATFLOR’s Golden New Bare Finished Steel Raised Access Floor System incorporates patented design features focused on simplified installation and flexible system configuration.
Designed for modern infrastructure, it offers a simplified system design, friendly pedestals and stringers, higher load capacity via strengthening ribs on the center and four back edges, an appealing diamond outline, and great flexibility and exchangeability. Available panel size is 600 × 600 × 35 mm.
Key Features
-
Patented Simpler System Design: Does not require a change in pedestal type, while suitable stringers can be added where required for anti-static systems.
-
Friendly Pedestal and Stringer: Features a well-designed corner lock that allows safe panel installation without tedious screw turning.
-
Higher Structural Strength: Equipped with extra strengthening ribs on the panel back and edges, plus a corner lock nearer to the center for superior stability.
-
Appealing Diamond Outline: Features a distinctive diamond-shaped underside designed to contribute to the panel’s structural strength.
Characteristic Specifications
-
Panel: Steel shell with cementitious infill featuring a distinctive diamond-shaped underside designed to contribute to the panel’s structural strength, strengthening ribs, and corner lock capabilities.
-
Pedestal & Stringer: Optimized pedestal and stringer configuration designed to render the system stable and efficient.
Technical Data Specification Table
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (Kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load – 10 Times | Rolling Load – 10,000 Times |
| FS800 | 600x600x35 | A | $\ge 800$ | $\ge 3350$ | $\ge 363$ | $\ge 536$ | $\ge 11250$ | $\ge 16100$ | 3560 | 2670 |
| FS1000 | 600x600x35 | A | $\ge 1000$ | $\ge 4550$ | $\ge 450$ | $\ge 670$ | $\ge 13350$ | $\ge 23000$ | 4450 | 3560 |
| FS1250 | 600x600x35 | A | $\ge 1250$ | $\ge 5560$ | $\ge 567$ | $\ge 780$ | $\ge 16680$ | $\ge 33000$ | 5560 | 4450 |
| FS1500 | 600x600x35 | A | $\ge 1500$ | $\ge 6675$ | $\ge 670$ | $\ge 1005$ | $\ge 19892$ | $\ge 34500$ | 6675 | 5340 |
| FS2000 | 600x600x35 | A | $\ge 2000$ | $\ge 8900$ | $\ge 906$ | $\ge 1340$ | $\ge 26700$ | $\ge 46000$ | 8900 | 7120 |
Ideal Applications
-
Class 5 Offices
-
Security Union Plazas
-
Futures Trading Buildings
-
Environments demanding heavy cabling and wiring
-
Flooring renovation projects in aging buildings
Conclusion
Ultimately, the ATFLOR Golden New Bare Finished Steel Raised Access Floor System delivers advanced load-bearing performance, Class A fire safety, and simplified installation and flexible system configuration for corporate offices, trading floors, and modern data centers. By combining reinforced diamond-pattern panels with innovative corner-locking mechanisms, this system establishes a reliable, flexible foundation for environments requiring extensive wiring infrastructure.
