Description
Product Name: ATFLOR HPL Coated Calcium Sulphate Raised Access Floor Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

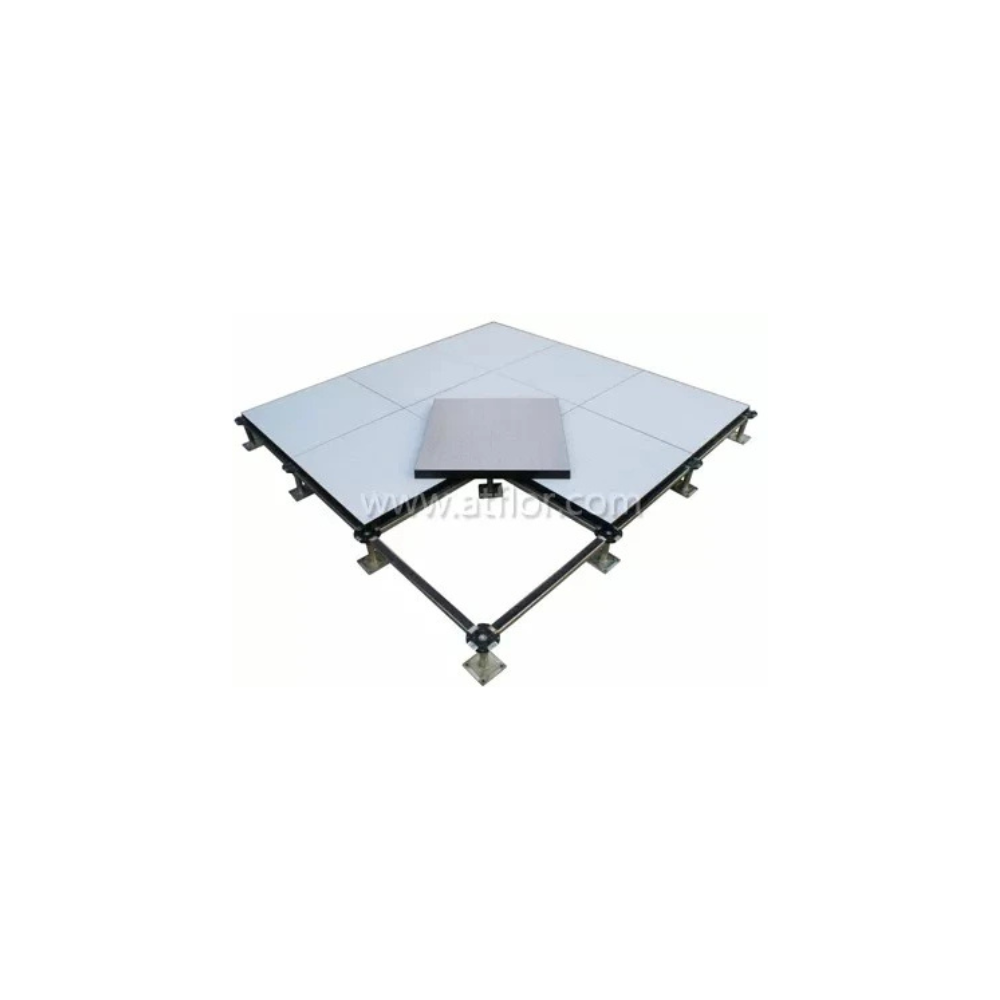

The ATFLOR HPL Coated Calcium Sulphate Raised Access Floor system features antistatic properties, fire resistance, soundproofing, dustproofing, and electromagnetic shielding. Engineered for high durability, wearability, and dimensional precision, this system provides a stable support frame with stringer connections, making it compatible with various top tiles such as HPL, PVC, ceramic, marble, granite, and wood flooring.
The product is specified for the FS800 to FS1500 product range, while the technical data provided covers models from FS662 to FS2000, utilizing 600 × 600 × 35 mm panels with Class A fire performance.
Key Features
-
Antistatic & Protective Performance: Prevents static effectively while offering fireproof, antiskid, soundproof, dustproof, and electromagnetic shielding properties.
-
Surface Tile Versatility: Provides an elegant appearance compatible with diverse top finishes including HPL, PVC, ceramic, marble, granite, and wood floors.
-
HVAC & Cabling Integration: Provides a suitable flooring solution for ground air-conditioning systems and environments requiring cabling and wiring.
-
Adjustable Support Framework: Features stringer connections and adjustable pedestals for flexible assembly and height configuration.
Characteristic Specifications
-
Panel Construction: High dimensional precision panels featuring high load capacity, flatness, and shockproof characteristics.
-
Application Scope: Ideal for computer rooms, network service rooms, monitoring centers, electronic workshops, clean rooms, dustless chambers etc., and occasions demanding antistatic, air conditioning, 5A class office buildings, security union plazas, futures trading buildings, places demanding cabling and wiring, and aging building floor renovations.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS662 | 600×600×35 | A | $\ge 662$ | $\ge 2,950$ | $\ge 301$ | $\ge 445$ | $\ge 8,850$ | $\ge 12,500$ | 2,946 | 2,356 |
| FS800 | 600×600×35 | A | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 600×600×35 | A | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 600×600×35 | A | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
| FS1500 | 600×600×35 | A | $\ge 1,500$ | $\ge 6,675$ | $\ge 670$ | $\ge 1,005$ | $\ge 19,892$ | $\ge 34,500$ | 6,675 | 5,340 |
| FS2000 | 600×600×35 | A | $\ge 2,000$ | $\ge 8,900$ | $\ge 906$ | $\ge 1,340$ | $\ge 26,700$ | $\ge 46,000$ | 8,900 | 7,120 |
Standard Pedestal and Stringer Specifications
-
Finished Floor Height (FFH) $\le$ 600 mm: Tube Diameter 25 mm, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 45 mm, Adjustment +25 / -25 mm
-
Note: Other heights can be customized.
-
Standard Stringer Size: 21 × 32 × 570 mm
Conclusion
The ATFLOR HPL Coated Calcium Sulphate Raised Access Floor combines Class A fire performance, antistatic protection, and robust structural load capacity for high-tech server rooms and commercial offices. By offering customizable surface tile finishes and reliable pedestal-stringer support, it ensures a secure, long-lasting foundation for environments requiring organized cabling and wiring infrastructure.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
