Description
Product Name: ATFLOR Press Corner Lock Steel Raised Access Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The ATFLOR Press Corner Lock Steel Raised Access Floor System features a Class A fireproof classification, moisture-proof build, dust-proof properties, and corrosion prevention across product types FS440 to FS1250. Designed with a unique mechanism where all four corners are locked using just one screw to save time and manpower during installation, it also accommodates panel side openings for wiring and cabling.
This flooring system delivers high dimensional precision, strong loadability, and a shockproof design with an elegant appearance suitable for paving various brand-name top tiles. It solves traditional wiring problems such as aging wires and short circuits, offering high recyclability, convenient removal, cost efficiency, a long performance life, adjustable pedestal heights, assembly agility, ample underfloor space for cabling, and good interchangeability. Available panel size is 500 × 500 × 28 mm.
Key Features
-

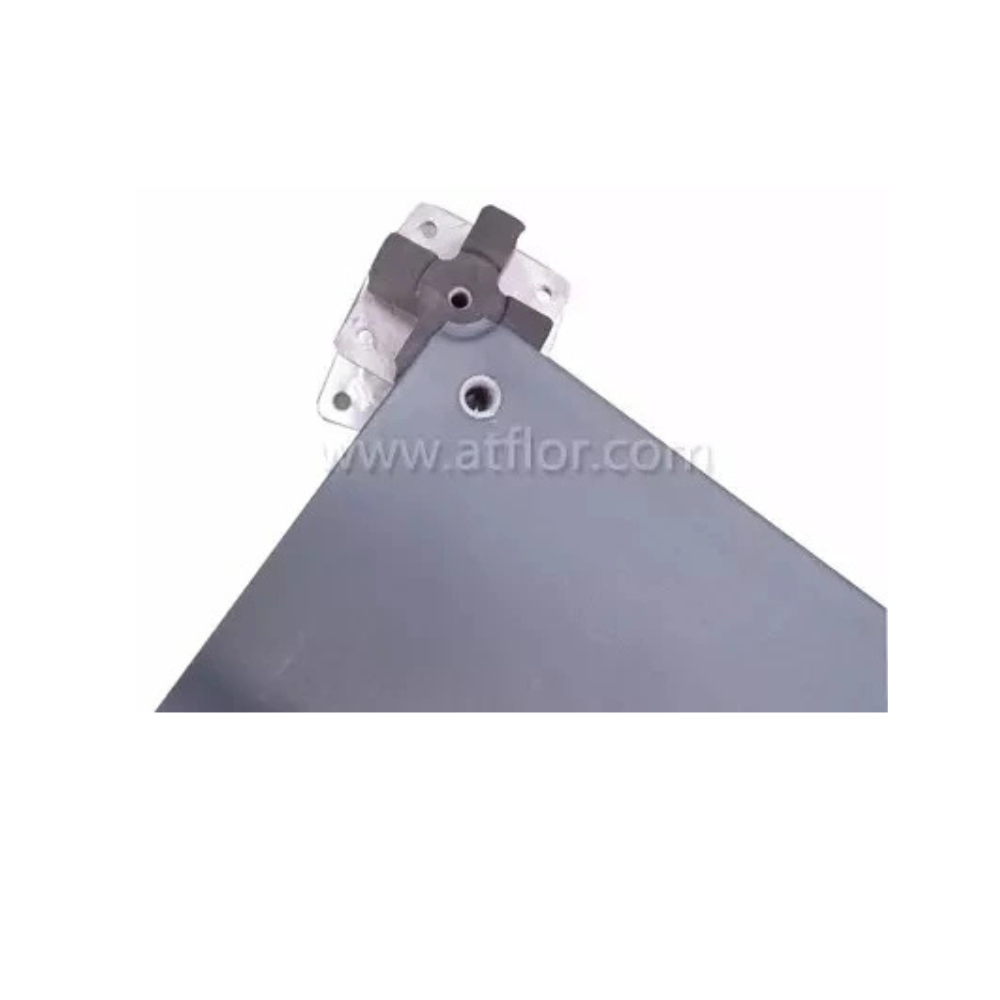

Efficient Corner Lock Mechanism: Four corners are locked under just one screw, saving significant time and labor during installation.
-
Fireproof & Protective: Class A fireproof rating along with moisture-proof, dust-proof, and corrosion-prevention qualities.
-
High Structural Integrity: Delivers high dimensional precision, strong loadability, and a shockproof build.
-
Advanced Cable Management: Supports panel side openings for wiring and cabling, helping address traditional wiring issues such as wire aging and short circuits.
Characteristic Specifications
-
Panel: Cementitious infill welded die-casting steel sheet, with or without corner lock holes in all four corners, compatible with carpet, PVC tiles, or other desired finishes.
-
Pedestal: Flat-top steel structure pedestal with installation heights ranging from 80 mm to 1500 mm. Standard pedestal specification: $\phi 16$, with +20 mm / −10 mm adjustment.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (Kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load – 10 Times | Rolling Load – 100,000 Times |
| FS440 | 500 × 500 × 28 | A | $\ge 440$ | $\ge 1960$ | $\ge 200$ | $\ge 295$ | $\ge 5880$ | $\ge 9272$ | 1958 | 1566 |
| FS662 | 500 × 500 × 28 | A | $\ge 662$ | $\ge 2950$ | $\ge 301$ | $\ge 445$ | $\ge 8850$ | $\ge 1250$ | 2946 | 2356 |
| FS800 | 500 × 500 × 28 | A | $\ge 800$ | $\ge 3350$ | $\ge 363$ | $\ge 536$ | $\ge 11250$ | $\ge 16100$ | 3560 | 2670 |
| FS1000 | 500 × 500 × 28 | A | $\ge 1000$ | $\ge 4550$ | $\ge 450$ | $\ge 670$ | $\ge 13350$ | $\ge 23000$ | 4450 | 3560 |
| FS1250 | 500 × 500 × 28 | A | $\ge 1250$ | $\ge 5560$ | $\ge 567$ | $\ge 780$ | $\ge 16680$ | $\ge 33000$ | 5560 | 4450 |
Ideal Applications
-
5A class offices
-
Security Union Plazas
-
Futures Trading Buildings
-
Environments demanding heavy cabling and wiring
-
Flooring renovation projects in aging buildings
Conclusion
Ultimately, the ATFLOR Press Corner Lock Steel Raised Access Floor System delivers robust structural load-bearing performance, Class A fire safety, and streamlined installation for professional corporate environments. By combining single-screw corner locking mechanisms, customizable side openings for cabling, and adjustable pedestal heights up to 1500 mm, this system establishes a reliable, long-lasting foundation for modern infrastructural requirements.
