Bosch CCSD-DL CCS 1000 D Discussion Device (Long Mic) Price in Bangladesh

Description

Product Name: Bosch CCSD-DL CCS 1000 D Discussion Device (Long Mic) Price in Bangladesh

Manufacturer: Bosch

Product Overview

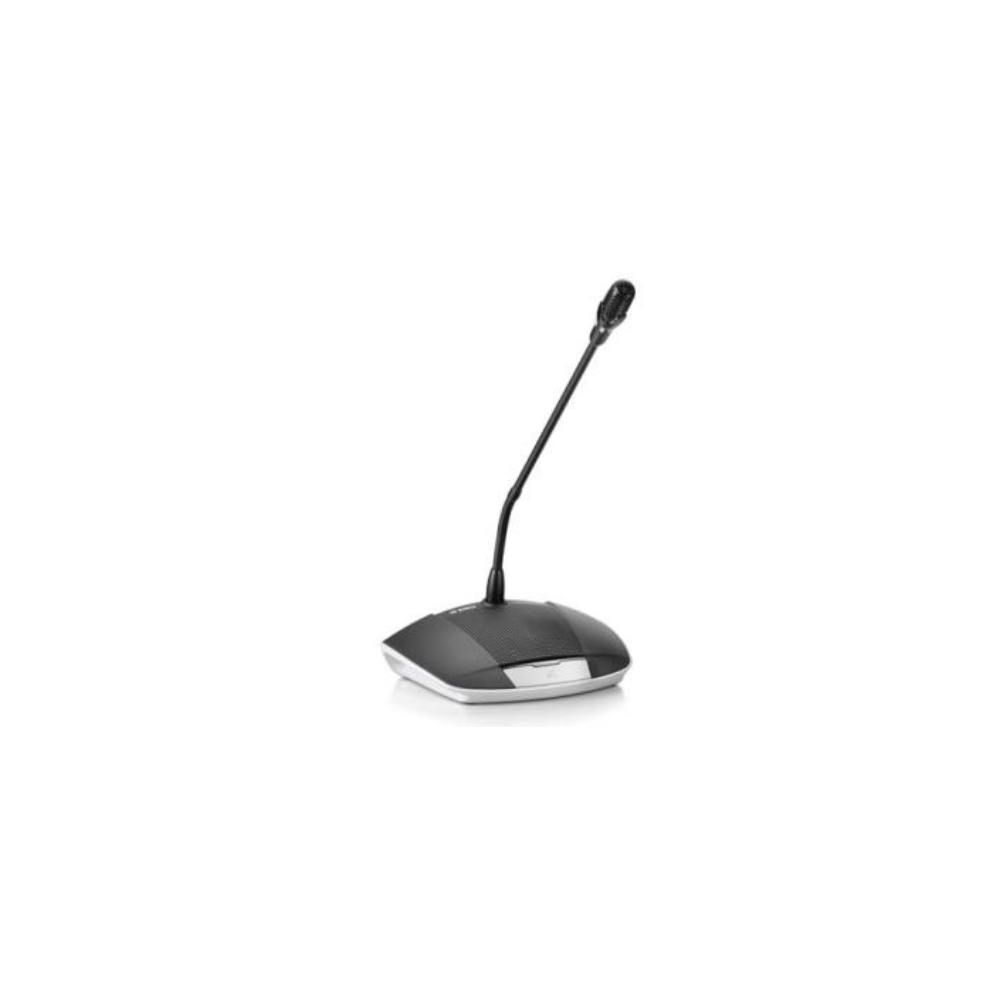

The Bosch CCSD-DL CCS 1000 D Discussion Device with a long microphone connects in a daisy-chain configuration to the Control Unit (CCSD-CU or CCSD-CURD) of a CCS 1000 D Digital Discussion System. Featuring plug-and-play functionality, devices connect or remove conveniently without system restarts, ensuring fast installation and reconfiguration times. Participants take part in discussions by speaking into the microphone and listening to proceedings through the built-in loudspeaker or optional headphones.

Key Features and Benefits

• Intuitive Status Indicators: Equipped with a white possible-to-speak indicator and green request-to-speak indicators above the microphone button and in the microphone head to clearly display waiting list status.

• Extended Flexible Gooseneck Microphone: Features a long 480 mm (18.9 in) flexible microphone stem that provides extended reach and can be easily adjusted to suit user preference.

• Face-to-Face Meeting Feeling: Allows the built-in loudspeaker and microphone to operate simultaneously, creating an authentic face-to-face meeting experience.

• Dual-Role Configurability: Quickly configures as either a participant or a chairperson’s device using a concealed slide-switch and interchangeable button sets, allowing the chairperson to use a priority button and announcement chime.

• GSM & Mobile Phone Immunity: Immunity to mobile phone interference helps ensure clear, uninterrupted discussions.

Technical Specifications

• Product Line: Bosch CCS 1000 D Digital Discussion System

• Model / Order Name: CCSD-DL (Long Microphone Variant)

• Power Consumption: 1.3 W

• System Electrical Frequency Response: 30 Hz to 20 kHz

• Participants Microphone Frequency Response: 125 Hz to 15 kHz

• Participants Loudspeaker Frequency Response: 200 Hz to 16 kHz (acoustical)

• Total Harmonic Distortion: < 0.5%

• Signal-to-Noise Ratio: > 93 dBA

• Sampling Rate: 44.1 kHz

• Microphone Polar Pattern: Cardioid

• Microphone Nominal Input: 85 dB SPL

• Headphones Load Impedance: > 32 ohms to < 1k ohm

• Loudspeaker Max Peak Output Power: 4 W

• Loudspeaker Nominal Output: 72 dB SPL

• Dimensions without Microphone (H x W x D): 64 x 203 x 146 mm (2.5 x 8.0 x 5.7 in)

• Height with Microphone in Horizontal Position: 130 mm (5.1 in)

• Length of Microphone Stem: 480 mm (18.9 in) from mounting surface

• Weight: Approx. 1 kg (2.2 lb)

• Mounting Type: Tabletop (portable or fixed)

• Material (Top / Base): Plastic ABS+PC top / Metal ZnAl4 base

• Color: Traffic black (RAL 9017) mattgloss top / Pearl light grey (RAL 9022) mattgloss base

• Certifications: CE, FCC, ICES-003, KCC, RCM, EAC, China RoHS, SASO

Ideal Applications

• Corporate Boardrooms and Executive Suites

• Municipal Council Chambers and Town Halls

• Institutional Conference and Convention Centers

• Government Auditoriums and Meeting Facilities

Conclusion

Ultimately, the Bosch CCSD-DL CCS 1000 D Discussion Device with a long microphone provides a flexible, high-performance solution for modern discussion environments. Therefore, combined with its plug-and-play daisy-chain architecture, dual-role configuration options, and mobile phone immunity, it ensures reliable communication for professional meetings.
