Product Name: Bosch Rexroth Tightening System Servo Amplifier Card LT-304 Price in Bangladesh

Manufacturer: Bosch Rexroth

Product Overview

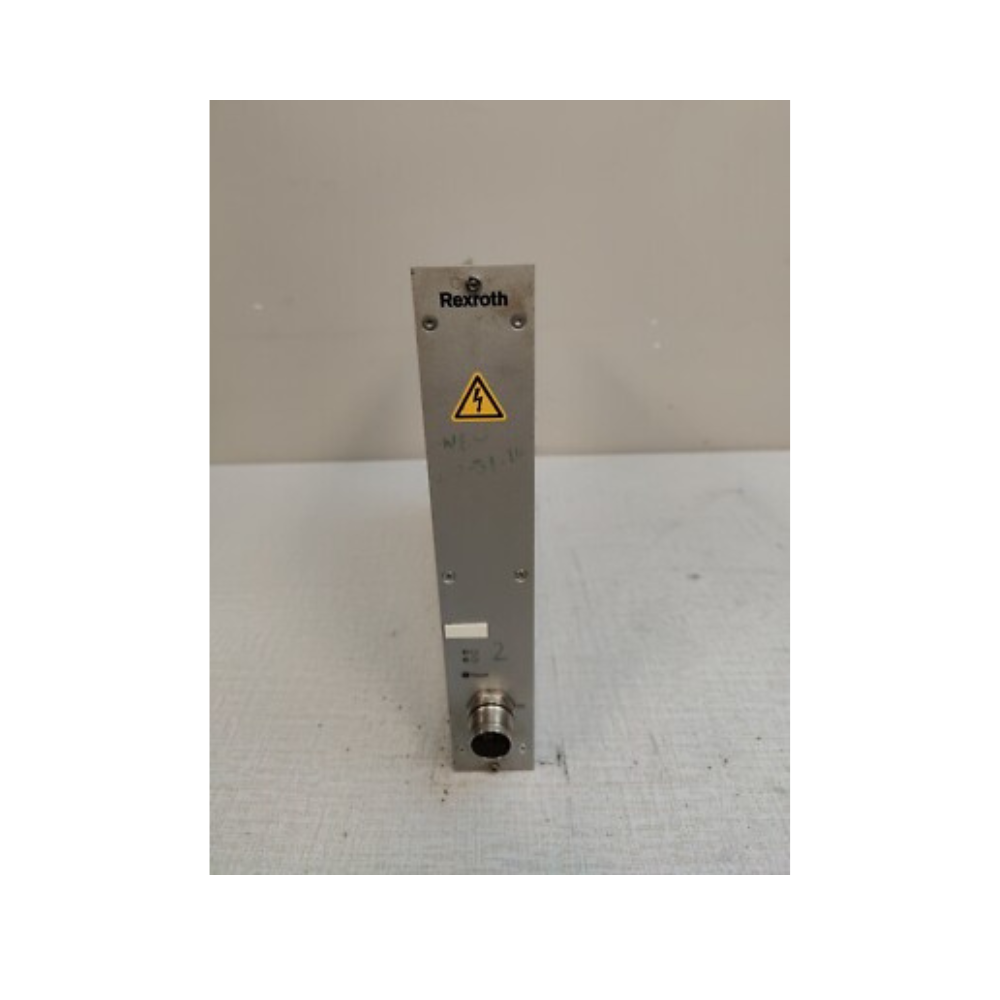

The Bosch Rexroth LT-304 (Order Number: 0 608 750 085) is a servo amplifier card designed for installation in the BT300 card-rack as part of industrial tightening systems. It supplies and controls EC-motors, handling internal speed and current regulations. Furthermore, it features an integrated BTB-LED function for real-time error display, selectable jumper settings for personnel safety (PS) or manual operation, and comprehensive protection classes. Additionally, it delivers a nominal output of 1,600 VA.

Key Features and Benefits

• BT300 Card-Rack Compatibility: Engineered for integration into standard BT300 card-racks for industrial assembly and tightening setups.

• EC-Motor Control & Regulation: Manages speed and current regulation internally for connected EC-motors up to a 20,000 min-1 rotation speed.

• Multi-State BTB-LED Diagnostics: Provides visual operational status and error diagnostics via a multi-color LED indicator.

• Flexible Jumper Settings: Supports configuration for centralized personnel safety (PS) via the VM300 power supply or manual operation modes.

• Robust Electrical Specifications: Operates with an intermediate circuit voltage of 280 VDC to 370 VDC, delivering a three-phase output voltage up to 230 VAC.

Technical Specifications

• Product Name: Bosch Rexroth Tightening System Servo Amplifier Card

• Model / Part Number: LT-304 (Order Number: 0 608 750 085)

• Input Voltages: Intermediate circuit voltage: 280 VDC up to 370 VDC | Driving voltage: +24 V | Processor voltage: +5 V

• Output Specifications: Three-phase output voltage: 0 up to 230 VAC | Output frequency: 0 Hz up to 667 Hz | Motor speed of rotation: 20,000 min-1

• Current & Power Ratings: Output current: 11 A | Nominal current: 7 A | Maximum current: 28 A | Nominal output: 1,600 VA

• Physical Dimensions: 46 mm (9 TE) x 271 mm (6 HE) x 285 mm

• Weight: 2.7 kg

• Environmental & Protection: Admissible ambient temperature: 0 up to 55 °C with ventilator | Relative humidity: 20% to 90% non-condensing | System of protection: IP 20 when installed

Ideal Applications

• Industrial Tightening Systems and Assembly Automation

• Bosch Rexroth BT300 Card-Rack Installations

• Automated Nutrunner and EC-Motor Control Setups

• Manufacturing Plant Quality-Critical Fastening Lines

Conclusion

The Bosch Rexroth LT-304 Servo Amplifier Card provides EC-motor control with integrated speed and current regulation for BT300 tightening systems. Its BTB-LED diagnostics, configurable jumper settings, and industrial electrical specifications make it suitable for automated tightening and assembly applications.
