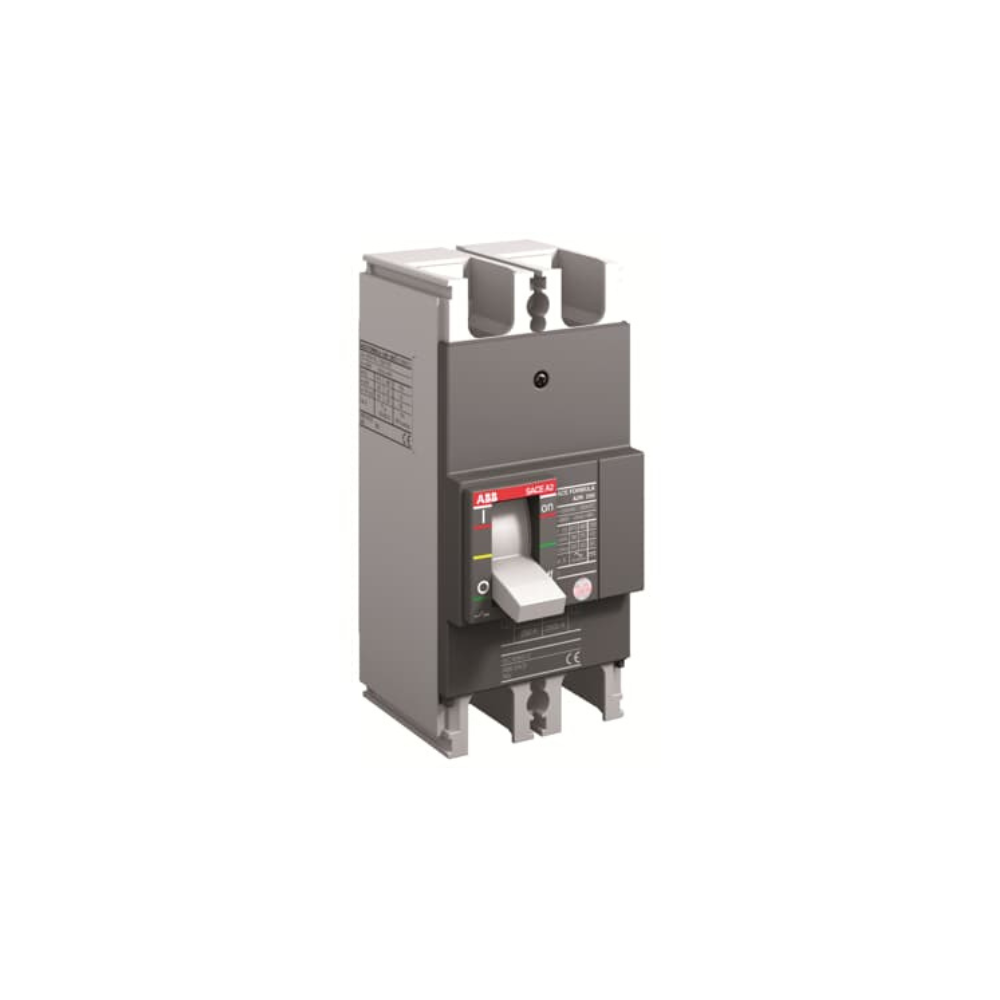

Buy ABB Formula A2A 250 TMF 200A 2 Pole MCCB in Bangladesh

Description

Product Name: Buy ABB Formula A2A 250 TMF 200A 2 Pole MCCB in Bangladesh

Manufacturer: ABB

Product Description

The ABB Formula A2A 250 TMF 200-2000 2p UL + 2 Lug T-B Moulded Case Circuit Breaker (MCCB) is an industrial power distribution and protection device designed for AC and DC networks under UL and CSA standards. Equipped with a thermomagnetic (TMF) release unit, this fixed two-pole circuit breaker features front terminals for copper-aluminium cables. It provides reliable protection for commercial and industrial electrical distribution systems across Bangladesh.

Key Features

• Thermomagnetic Release (TMF): Equipped with a TMF release unit for overload and short-circuit protection.

• 2-Pole Configuration: Designed for two-pole AC and DC power distribution systems.

• UL Standard Compliance: Built and certified according to UL standards.

• Cable Terminal Connection: Supplied with front terminals for copper-aluminium cables.

• SACE Formula Series: Member of ABB’s SACE Formula moulded case circuit breaker family.

Technical Specifications

• Brand: ABB

• Series: SACE FORMULA

• Model: A2A 250 TMF 200-2000 2p UL + 2 Lug T-B

• Product ID: 1SDA115145R1

• Order Code US and Canada: A2A200CTL-4

• Product Type: Moulded Case Circuit Breaker (MCCB)

• Rated Current (In): 200 A

• Rated Uninterrupted Current (Iu): 250 A

• Number of Poles: 2P

• Trip Unit Type: Thermomagnetic Release (TMF)

• Rated Operational Voltage: 240 V AC / 250 V DC

• Rated Insulation Voltage (Ui): 690 V

• Rated Impulse Withstand Voltage (Uimp): 6 kV

• Interrupting Rating (UL489): (240 V AC) 10 kA | (250 V DC, 2 Poles in Series) 10 kA

• Version: Fixed (F)

• Terminal Connection Type: Front for Copper-Aluminium Cables

• Standards: UL

• Dimensions (W x H x D): 70 mm x 60 mm x 60 mm

• Weight: 0.9 kg

Conclusion

The ABB Formula A2A 250 TMF 200A 2 Pole MCCB is designed for AC/DC power distribution systems requiring thermomagnetic protection under UL standards. Its TMF release, fixed two-pole configuration, and front terminal design make it suitable for commercial and industrial electrical installations in Bangladesh.
