Description

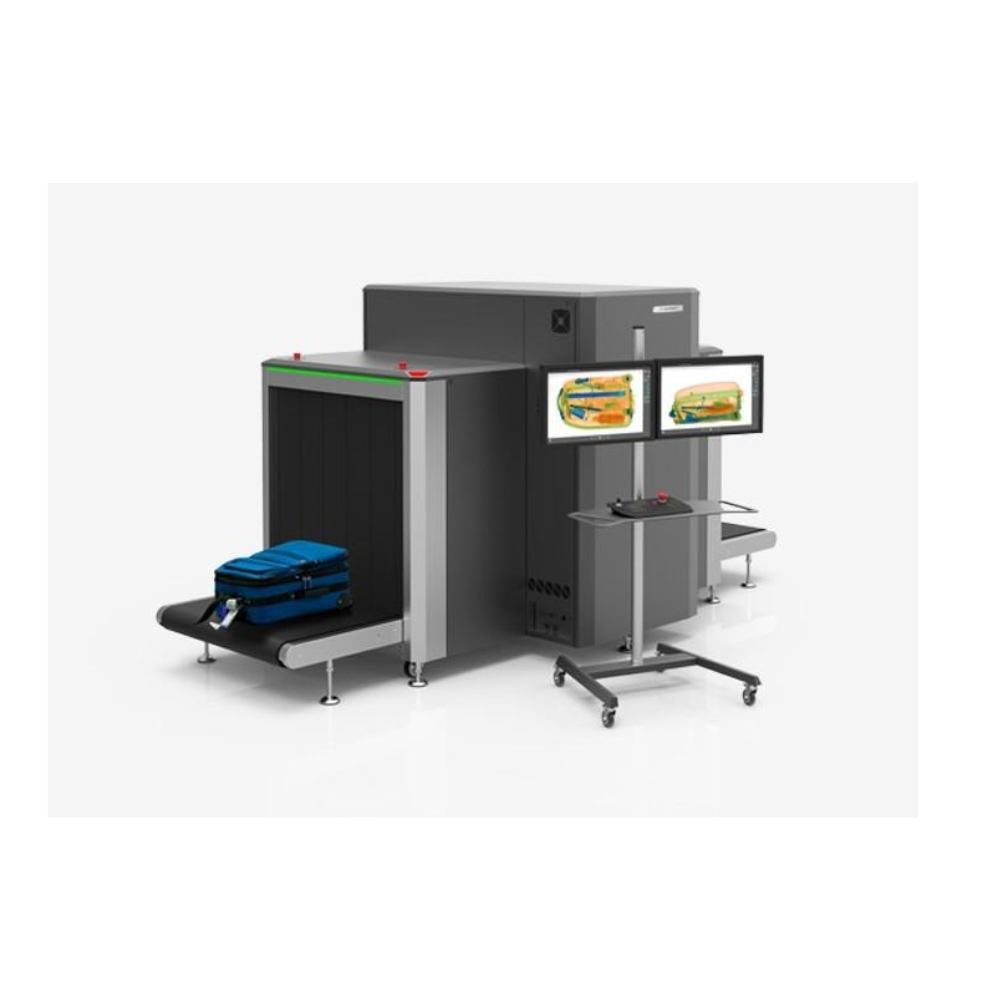

Product Name: BV 100100DV Dual-View X-Ray Baggage Scanner

Manufacturer: LINEV Systems

Country of Origin: Germany / Belarus

Product Description

The LINEV Systems BV 100100DV is an advanced, high-resolution dual-view X-ray baggage inspection system engineered for high-throughput screening environments. This robust system is specifically designed to meet the rigorous security demands of critical infrastructure facilities, customs checkpoints, mass transit hubs, and large-scale event arenas. Featuring a generous 1010 mm × 1010 mm tunnel dimension, it easily accommodates large baggage, oversized luggage, and small-to-medium air cargo. Consequently, it serves as an ideal solution for facilities requiring thorough security screening for bulky items without disrupting operational workflows.

Additionally, the scanner integrates a heavy-duty conveyor system designed to support a maximum distributed load capacity of 200 kg. Operating at a steady belt speed of 0.22 m/s, the system ensures consistent and rapid passenger or cargo throughput while adhering to strict international inspection protocols. The low conveyor height of 320 mm further assists operators in loading and unloading heavy items efficiently. Furthermore, the reliable mechanical architecture minimizes operational downtime during peak traffic periods, making it a highly dependable asset for high-volume public and private sectors.

Furthermore, the system utilizes a 160kV dual-view X-ray imaging configuration that captures simultaneous perpendicular perspectives of inspected items. This dual-view layout eliminates the need for repositioning and rescanning, significantly increasing the probability of threat detection. Enhanced by specialized multi-color palette imaging technology and native touch control operation functionality, the system offers an intuitive user interface. As a result, security personnel can perform precise material discrimination and rapid threat identification during continuous screening procedures.

Key Features

• Simultaneous Dual-View Imaging: Equipped with an advanced dual-view setup, the system generates two independent, perpendicular views of each scanned item simultaneously. This comprehensive imaging angle reduces blind spots, assists in uncovering hidden contraband, and eliminates the time-consuming process of rescanning bags.

• Automatic Prohibited Object Detection: The platform features the ability to automatically detect prohibited objects and threats. This automated capability assists operators in identifying potential threats and prohibited objects during screening operations, effectively lowering the risk of human oversight.

• High-Capacity Tunnel Design: The spacious 1010 mm × 1010 mm tunnel allows for the seamless inspection of bulky packages, standard cargo shipments, and oversized check-in luggage, making it versatile across different logistics and transport setups.

• Precision Wire Resolution & Penetration: Driven by a reliable 160kV generator, the system achieves a 38 AWG (0.1 mm) copper wire detectability and a guaranteed 34 mm steel penetration. This precise spatial resolution allows operators to distinguish fine electronic components and wires hidden inside dense materials.

• Intuitive Touch Control Interface: The system combines high-performance multi-color palettes with a responsive touch control interface, allowing operators to manipulate images, zoom, and toggle material separation features smoothly.

• Robust Operational Reliability: Engineered to function seamlessly under demanding environmental conditions, the machine operates reliably within a wide temperature range and up to 90% non-condensing humidity, ensuring uninterrupted performance during long shifts.

Technical Specifications

• Product Name: BV 100100DV

• Manufacturer: LINEV Systems

• Country of Origin: Germany / Belarus

• Tunnel Dimensions (W × H): 1010 mm × 1010 mm

• X-Ray Generator Voltage: 160 kV

• Beam Direction: Diagonally downward & diagonally sideward (Dual-View)

• Wire Detectability: 38 AWG (0.1 mm Copper Wire)

• Steel Penetration: 34 mm Steel Guaranteed (36 mm Typical)

• Spatial Resolution: 1.5 line pairs per mm (scanning direction) / 1.0 line pairs per mm (along detector)

• Conveyor Speed: 0.22 ± 0.03 m/s

• Conveyor Height: 320 mm

• Maximum Conveyor Capacity: 200 kg (Distributed Load)

• Overall Dimensions (L × W × H): 3700 mm × 1600 mm × 1825 mm

• System Weight: Max 1350 kg

• Power Consumption: Max 1.4 kVA

• Line Voltage: 230 VAC ± 10% / 120 VAC ± 5% (50/60 Hz)

• Operating Temperature / Humidity: 0°C to +40°C / Up to 90% (non-condensing)

• Application Areas: Airport checkpoints, cargo terminals, customs and border control, railway and metro stations, seaport terminals, law enforcement facilities, government buildings, and large sports and convention arenas.

Conclusion

For large transit networks, commercial logistics, and high-security venues in Bangladesh, managing large-volume baggage and cargo screening without causing logjams is a critical operational priority. Fortunately, the LINEV Systems BV 100100DV Dual-View X-Ray Baggage Scanner addresses these challenges directly through its simultaneous perpendicular imaging and automated threat detection capabilities.

Thus, its advanced dual-view imaging architecture and intelligent object identification capabilities assist operators in detecting weapons, narcotics, and dangerous contraband with high accuracy. This makes it an excellent choice for installation at Bangladeshi international airports, sea ports, customs warehouses, major rail terminals, and high-profile government centers.

In addition, its expansive tunnel dimensions and heavy-duty 200 kg conveyor capacity facilitate the efficient handling of oversized items and small cargo lots. These specialized imaging configurations successfully streamline security workflows and ensure high-throughput efficiency. Therefore, the LINEV Systems BV 100100DV stands out as a highly dependable, high-performance security asset for critical checkpoints across Bangladesh.

For pricing, availability, and technical consultation regarding the BV 100100DV Dual-View X-Ray Baggage Scanner in Bangladesh, please contact us.
