Description

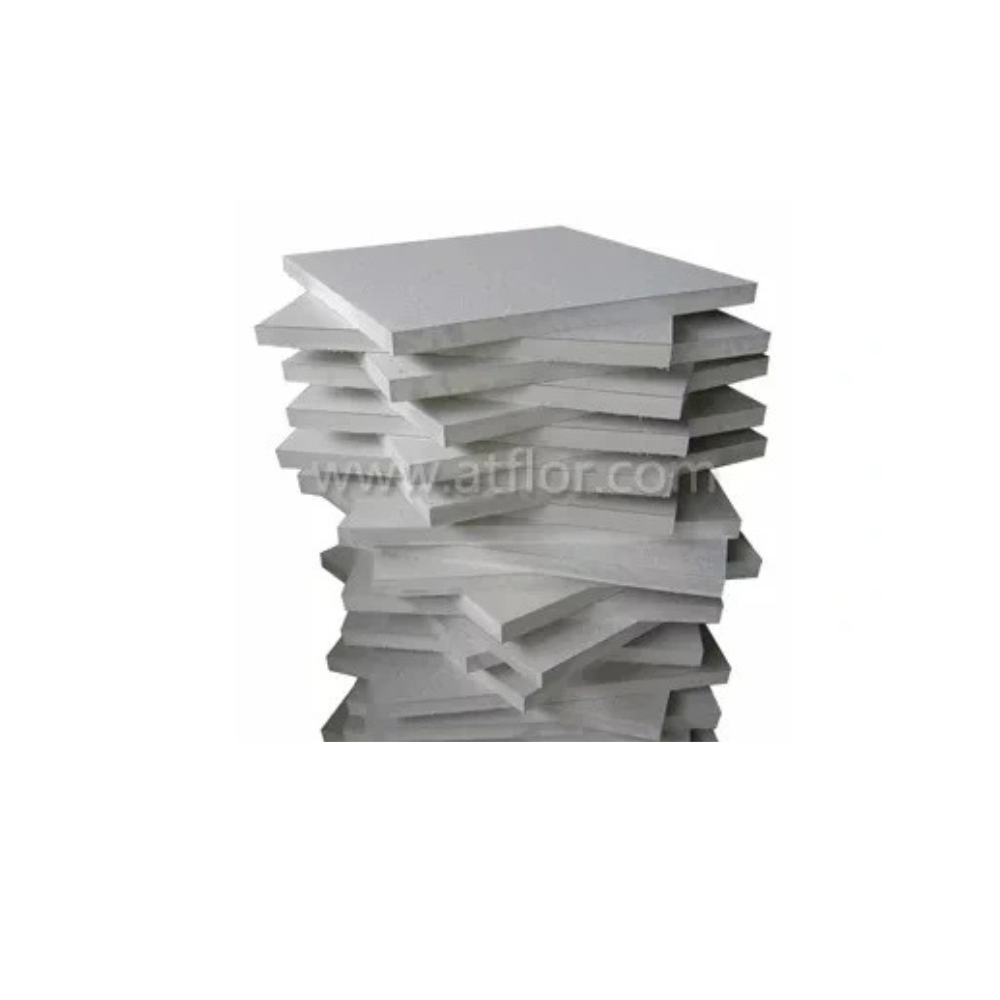

Product Name: Calcium Sulphate Board Raised Access Floor System in Bangladesh
Manufacturer: XL
Product Overview
The Calcium Sulphate Board Raised Access Floor System is manufactured using premium natural CaSO4 $1/2\text{H}_2\text{O}$ and original wood pulp without bleaching, designed for low-odor, clean material composition with long fibers and accurately proportioned raw materials. Composing a calcium sulphate purity of more than 85%, the panel integrates plant fibers as reinforcement material, solidified calcium sulphate crystals, and a pulse pressing process to deliver superior loading capacity, flatness, and environmental composition.
The product range is specified for the FS800 to FS1500 product types, utilizing $600 \times 600$ mm panels with a thickness available from 25 mm to 38 mm.
Key Features
-
Environmental & Raw Material Quality: Uses premium natural CaSO4 $1/2\text{H}_2\text{O}$ and unbleached original wood pulp with long fibers and low-odor, clean material composition, maintaining a calcium sulphate purity of more than 85%.
-
Protective & Mechanical Properties: Delivers anti-static capabilities, high dimensional precision, strong loading capability, shockproof performance, and Class A fire resistance.
-
Surface Versatility & Stability: Features an elegant appearance compatible with widespread brand top tiles, maintaining stable performance under varying humidity and temperature conditions.
-
Reinforcement & Flatness: Utilizes plant fibers as reinforcement material for calcium sulphate crystals consolidated via a pulse pressing process to ensure high flatness and structural integrity.
Characteristic Specifications
-
Panel Composition: Premium natural calcium sulphate board with a purity of more than 85%, reinforced with plant fibers and original wood pulp. Panel thickness ranges from 25 mm to 38 mm.
-
Panel Size: $600 \times 600$ mm standard dimensions across the FS800 to FS1500 range.
-
Application Scope: Engineered for specialized environments requiring high loading capacity, fireproof qualities, and robust raised flooring infrastructure based on manufacturer specifications.
Technical Specification
| Model | Size (mm) | Fire Performance | Manufacturer-Specified Load Values |
| FS800 | $600 \times 600$ | A | $\ge 800$; $\ge 3,350$ N; $\ge 363$; $\ge 536$ N; $\ge 11,250$ N; $\ge 16,100$ N/m²; 3,560; 2,670 |
| FS1000 | $600 \times 600$ | A | $\ge 1,000$; $\ge 4,550$ N; $\ge 450$; $\ge 670$ N; $\ge 13,350$ N; $\ge 23,000$ N/m²; 4,450; 3,560 |
| FS1250 | $600 \times 600$ | A | $\ge 1,250$; $\ge 5,560$ N; $\ge 567$; $\ge 780$ N; $\ge 16,680$ N; $\ge 33,000$ N/m²; 5,560; 4,450 |
| FS1500 | $600 \times 600$ | A | $\ge 1,500$; $\ge 6,675$ N; $\ge 670$; $\ge 1,005$ N; $\ge 19,892$ N; $\ge 34,500$ N/m²; 6,675; 5,340 |
Conclusion
The XL Calcium Sulphate Board Raised Access Floor System combines a calcium sulphate purity of more than 85%, plant-fiber reinforcement, pulse pressing, fire resistance, dimensional precision, and high load-bearing capability across the FS800 to FS1500 range.
