CTX 5800 CT Explosives Detection System (EDS)

Description

Product Name: CTX 5800 CT Explosives Detection System (EDS)

Manufacturer: Smiths Detection

Country of Origin: USA

Product Description

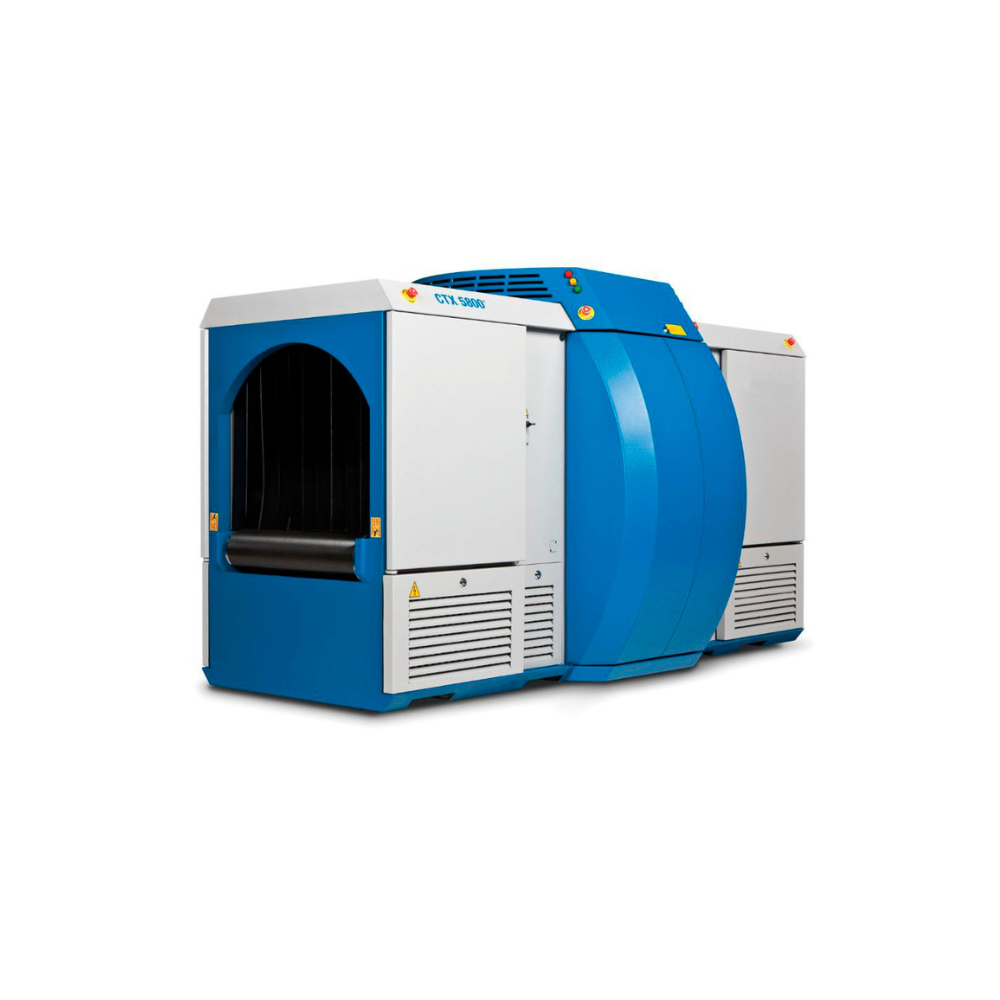

The CTX 5800 Checked Baggage Explosive Detection System (EDS) is an advanced, high-performance security screening solution. It is specifically designed to quickly identify threats in checked baggage within modern aviation and high-security environments. Furthermore, by utilizing advanced computed tomography (CT) technology, this compact system delivers exceptional screening accuracy without compromising space or operational efficiency.

The CTX 5800 represents the next generation of space-saving checkpoint security. Manufactured by a global leader in security technology, it is fully ECAC Standard 3 approved and TSA certified.

Most importantly, the unit features an innovative design powered by a single X-ray generator. This setup allows it to provide high-resolution 3D images for quick and accurate threat detection. Consequently, it serves as an ideal choice for space- or weight-restricted environments. Although it is highly compact, the system remains incredibly flexible. With simple extensions, it can easily process anything from large duffle bags to skis and golf bags. Therefore, it has become an indispensable asset and the ultimate screening solution for smaller airports.

Key Features

• Threat Detection in a Small Footprint By utilizing an efficient and compact design, the system provides top-tier security screening while occupying minimal floor space. Therefore, it helps facilities maximize their available operational area.

• High-Resolution 3D Imaging The system generates detailed, high-resolution 3D images from a single X-ray source. As a result, operators can analyze bag contents thoroughly and identify hidden threats with absolute precision.

• Flexible Cargo Accommodations With the help of simple curtain extensions, the unit can handle an unlimited bag length. For example, it effortlessly processes oversized items like large duffle bags, skis, and golf bags.

• Smart Workflow & Networking The unit offers customized networking solutions to link multiple scanners together. Additionally, it supports efficient image distribution and real-time system monitoring among operators.

• Versatile Integration Options The scanner can be deployed in both stand-alone and fully integrated in-line configurations. Thus, it seamlessly blends into existing baggage handling systems (BHS) without causing operational delays.

Technical Specifications

Product Name: CTX 5800

Device Type: Checked Baggage Explosive Detection System (EDS)

Technology: Computed Tomography (CT) with a Single X-Ray Source

Certifications: ECAC Standard 3 Approved, TSA Certified

System Dimensions (W x H x L): 1570 x 1550 x 2610 mm (59.0 x 57.8 x 102.8 in)

Tunnel Structure: Cylindrical

Tunnel Opening (Max. Width): 750 mm (29.5 in) at conveyor edge

Conveyor Height from Floor: 616 mm (24 in)

Conveyor Belt Speed: 0.14 m/s

Throughput Capacity: 400 – 450 Bags Per Hour (BPH)

Maximum Power Rating: 2.5 kVA

Application Areas: Small to medium-sized international airports, regional transit hubs, high-security checkpoints

Conclusion

For facility managers and aviation authorities in Bangladesh, deploying a modern screening infrastructure is vital. It is all about striking the right equilibrium between rapid throughput and rigorous security verification. Fortunately, the CTX 5800 system redefines this balance by delivering advanced CT-based threat detection within a highly compact footprint. For example, it allows smaller airports to achieve elite global safety standards without requiring massive spatial renovations.

By streamlining these workflows, the system significantly mitigates congestion during peak travel hours. Consequently, this directly elevates both operator efficiency and the passenger experience. Furthermore, with its customized networking capabilities and flexible configuration options, the CTX 5800 offers a future-proof, reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that aviation and security hubs across Bangladesh remain resilient, compliant, and optimized for the demands of modern, high-volume travel.

Get instant stock availability and the best price for the CTX 5800 CT Explosives Detection System (EDS)  in Bangladesh. Contact us today to get official product quotations, bulk pricing discounts, and dedicated technical support.
