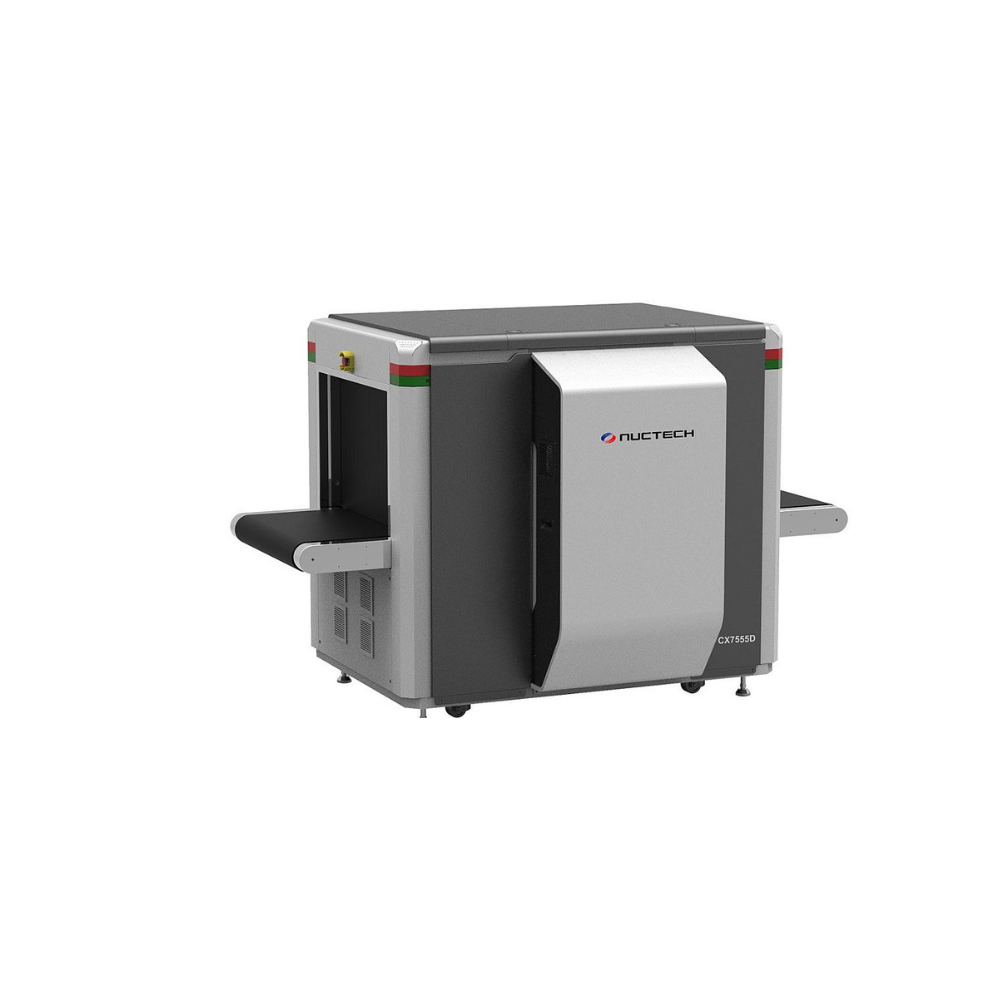

CX7555D Dual-View X-Ray Inspection System

Description

Product Name: CX7555D Dual-View X-Ray Inspection System

Manufacturer: Nuctech Company Limited

Country of Origin: China

Product Description

The CX7555D Dual-Energy Dual-View X-Ray Scanner is an advanced security screening solution designed for inspecting briefcases, carry-on baggage, and parcels. It employs an innovative dual-view design that displays scan images on dedicated monitors. Consequently, operators can efficiently detect dangerous items and contraband hidden beneath overlapping areas.

This high-performance system stands out with an intuitive interface architecture and advanced image processing capabilities. Manufactured by Nuctech, a global leader originating from Tsinghua University, this versatile product line delivers exceptional screening results for bulky baggage. Furthermore, its reliable design helps facility managers maintain strict safety standards without disrupting checkpoint throughput.

Most importantly, the system utilizes color-coded material classification (orange for organics, blue for metals, and green for mixed materials) to assist security personnel. Featuring an optimized 755 mm by 555 mm tunnel footprint, it efficiently handles a wide range of objects. Therefore, it serves as an ideal screening choice for airports, customs, transit stations, ports, government offices, and stadiums alike.

Key Features

• Advanced Dual-View Technology: Dual-view design with images displayed on dedicated monitors, enabling efficient detection of dangerous items and contraband hidden in overlapping areas.

• Optional Automated Threat Pinpointing: Features an optional automatic detection and alarm function for explosives and narcotics, allowing security personnel to perform focused threat evaluations.

• High-Performance Imaging & Zoom: Delivers high image quality with 40 AWG wire resolution and steel penetration up to 38 mm, combined with progressive, continuous local zoom up to 32× for detailed examination.

• Advanced Image Processing & TIP: Supports advanced processing functions like color/black & white, negative, high/low penetration, organic/inorganic discrimination, and suspect material highlighting, with an optional Threat Image Projection (TIP) system for operator training.

• Optimized Large Tunnel Dimensions: The 755 mm width and 555 mm height tunnel footprint is perfectly designed to screen larger, bulky items and hand-carried baggage.

• International Safety & Certification: X-ray leakage complies with international health and radiation safety standards, and the entire solution is ISO 9001:2000 and ISO 14001:2004 certified.

Technical Specifications

• Product Series: CX Series

• Manufacturer: Nuctech Company Limited

• Country of Origin: China

• Device Type: Dual-Energy Dual-View X-Ray Scanner

• Technology: Dual-View X-Ray Imaging with Advanced Material Classification (Orange: Organic, Blue: Metals, Green: Mixed)

• Tunnel Dimensions: 755 mm (Width) × 555 mm (Height)

• Wire Resolution: 40 AWG

• Steel Penetration: Up to 38 mm

• Zoom Capability: Up to 32× continuous local zoom

• Maximum Load: 160 kg

• Conveyor Speed: 0.20 m/s

• Conveyor Height: 750 mm

• Dimensions / Weight: 2397 mm (L) × 1412 mm (W) × 1531 mm (H) / 1100 kg

• Image Storage Capacity: Up to 50,000 images

• Display Resolution: 1280 × 1024 pixels

• Image Export Formats: BMP, JPG, PNG (via USB storage devices)

• Threat Detection Capabilities: Detection and localization of concealed items via dual-view imaging; optional automatic explosives and narcotics detection.

• Application Areas: Airports, customs, bus and railway stations, ports, major events, government offices, and stadiums.

Conclusion

For facility managers and security authorities in Bangladesh, deploying a modern screening infrastructure is vital. It is all about striking the right equilibrium between rapid throughput and rigorous security verification. Fortunately, the CX7555D redefines this balance by delivering superior threat detection within a large tunnel footprint. For example, it allows local transport networks, government buildings, and mega-event venues to achieve high safety standards without sacrificing spatial logistics.

By streamlining these checkpoint workflows, the system significantly mitigates congestion during peak entry hours. Consequently, this directly elevates both operator efficiency and the overall visitor experience. Furthermore, with its advanced automated detection capabilities and scalable configuration options, the CX7555D offers a future-proof, highly reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that commercial, diplomatic, and transport hubs across Bangladesh remain resilient, compliant, and optimized for modern security demands.
