Edwards SIGA-CT1 Single Input Module Price in Bangladesh

Description

Product Name: Edwards SIGA-CT1 Single Input Module Price in Bangladesh

Product Overview

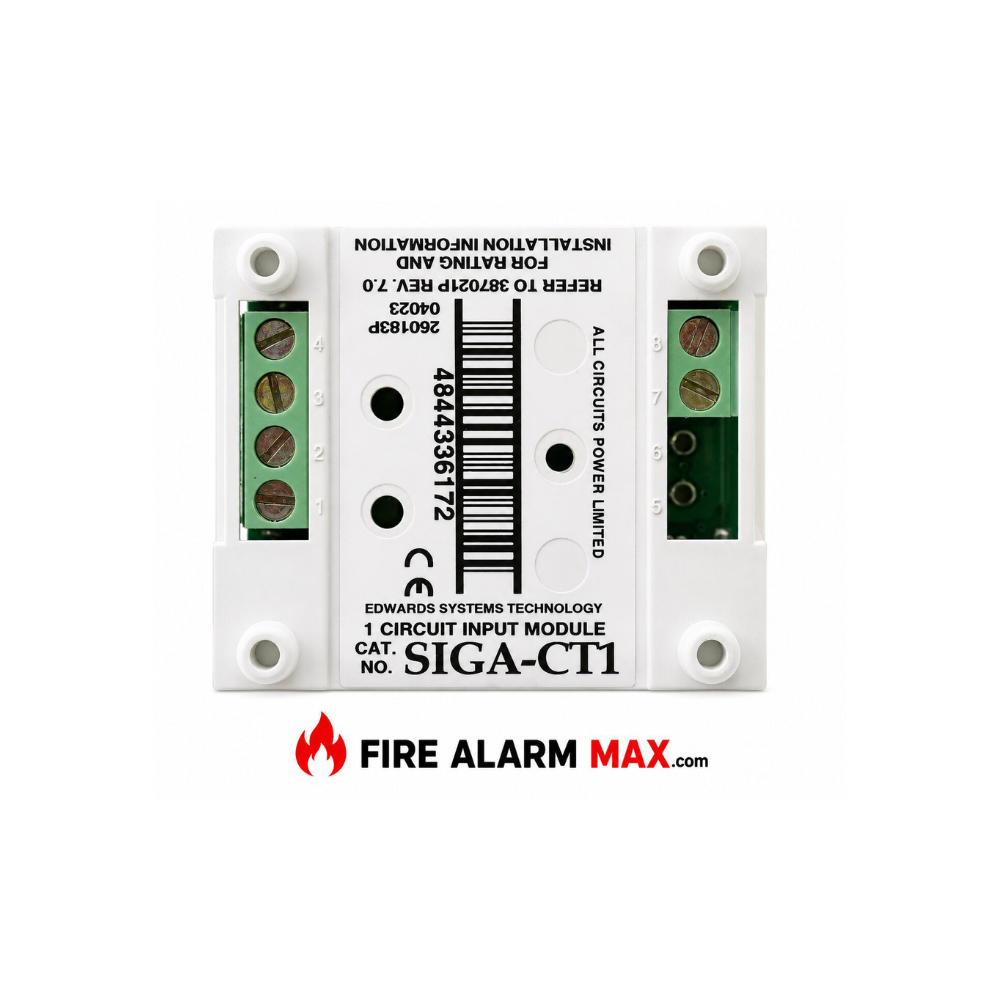

The Edwards SIGA-CT1 is a Signature Series single input module. It connects one Class B normally open dry-contact initiating device circuit to a Signature loop controller. In addition, an onboard microprocessor analyzes the input signal and decides whether to input an alarm. As a result, a conventional contact device becomes an individually identified point.

The installer chooses one of four personality codes, so the module can handle alarm, waterflow, monitor and supervisory duty. Moreover, the loop controller sets the address electronically, so you set no switches or dials.

Key Features

• One Class B normally open dry-contact input, supervised with a 47 kΩ end-of-line resistor
• Four personality codes: alarm latching, alarm delayed latching, active non-latching, active latching
• Electronic addressing with no switches or dials
• Automatic device mapping
• Stand-alone operation, depending on the control panel
• Ground fault detection by address
• Green and red status LEDs
• Mounts in a 1-gang box or a 4-inch square box
• UL/ULC listed

Technical Specifications

Brand: Edwards (EST)
Model: SIGA-CT1
Series: Signature
Type: Single input module, intelligent analog addressable
Input: One Class B normally open dry-contact initiating device circuit
Compatibility: Signature Loop Controller
Type code: 48 (factory set)
Address requirement: One module address
Listings: UL, ULC, MEA, CSFM

Code 1: Normally open alarm, latching. For pull stations and heat detectors.
Code 2: Normally open alarm, delayed latching. For waterflow alarm switches; alarm after about 16 seconds.
Code 3: Normally open active, non-latching. For fans, dampers and doors.
Code 4: Normally open active, latching. For supervisory and tamper switches.

Operating voltage: 15.2 to 19.95 Vdc (19 Vdc nominal)
EOL resistor: 47 kΩ
Circuit wire resistance: 50 ohms maximum (25 ohms per wire)
Circuit capacitance: 0.1 µF maximum
Terminal wire size: #12 to #18 AWG (#16 and #18 preferred)
LED operation: Green LED flashes when polled; red LED flashes in alarm or active

Construction: High impact engineering polymer
Mounting: 2-1/2 in (64 mm) deep 1-gang box, or 1-1/2 in (38 mm) deep 4 in square box with 1-gang cover and SIGA-MP mounting plates
Operating temperature: 32°F to 120°F (0°C to 49°C)
Storage temperature: Minus 4°F to 140°F (minus 20°C to 60°C)
Humidity: 0% to 93% RH
Ship weight: 0.4 lb (0.15 kg)

Applications

Use the SIGA-CT1 to monitor a normally open dry contact on a Signature loop. For example, it suits pull stations, heat detectors, waterflow switches, supervisory switches and tamper switches. It also monitors fans, dampers and doors. However, it does not support 2-wire smoke detectors, and it needs electrical power to operate. For hot areas such as attics, Edwards offers the SIGA-CT1HT.

Conclusion

The Edwards SIGA-CT1 turns a normally open contact device into an addressable point on a Signature loop. Its four personality codes and electronic addressing keep setup simple. Therefore, it suits systems that need one supervised contact input at a remote location.
