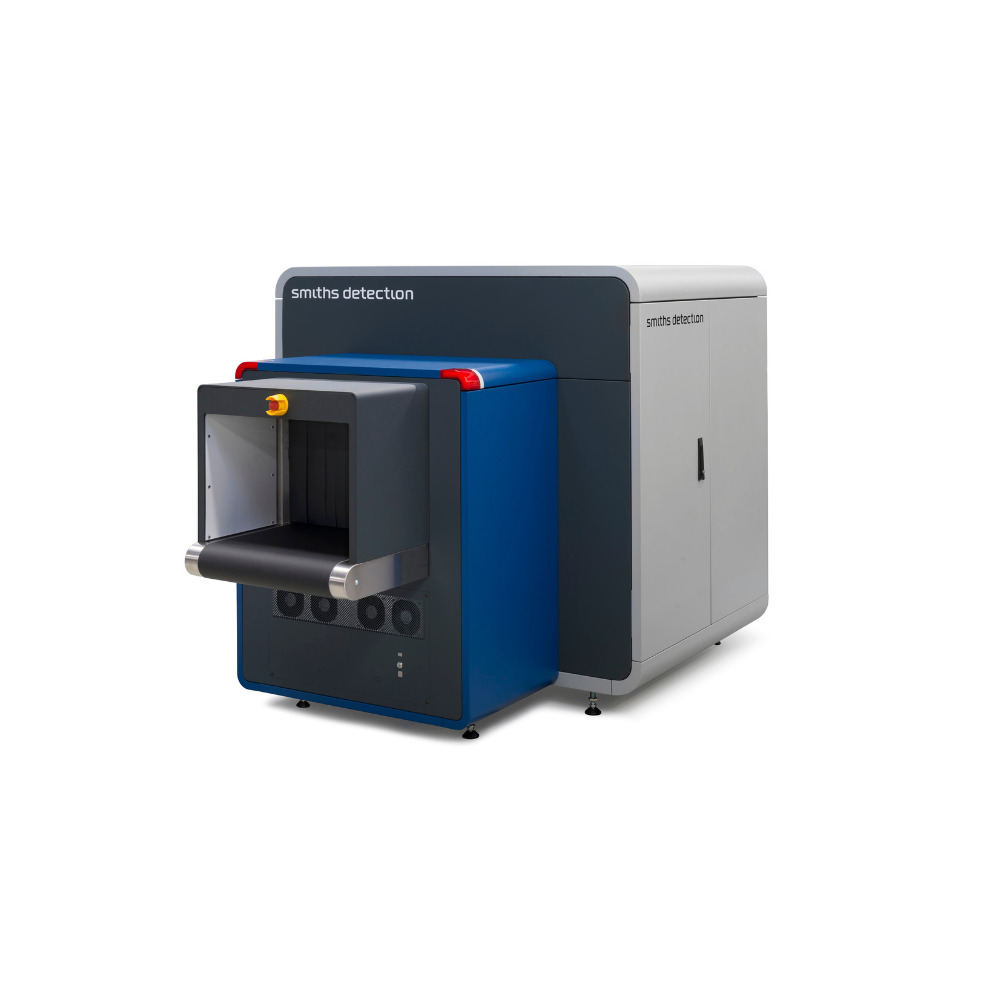

HI-SCAN 6040 CTiX Advanced CT Carry-On Baggage Scanner

Description

Product Name: HI-SCAN 6040 CTiX Advanced CT Carry-On Baggage Scanner

Manufacturer: Smiths Detection

Country of Origin: Germany

Product Description

The HI-SCAN 6040 CTiX is an advanced checkpoint screening system engineered by Smiths Detection. This high-performance scanner utilizes Computed Tomography (CT) technology for the screening of carry-on baggage. Both the standard system and the updated Model S feature automatic explosives detection algorithms. Therefore, they deliver exceptional threat assessment. Furthermore, the system is approved to ECAC EDS CB C3 standards. As a result, passengers no longer need to remove liquids or electronic devices from their hand luggage. This significantly accelerates the checkpoint process and makes screening far more convenient.

Key Features

• Advanced CT Imaging Technology: The gantry rotates at a constant speed as baggage moves through it on the conveyor belt. Consequently, hundreds of images are captured to create high-quality 3D images in real time. This capability allows for a more accurate assessment of bag contents. Moreover, the intuitive user interface received the 2020 Red Dot Award.

• Model S Space Optimization: The updated Model S features a reduced width of 20 cm and weighs 350 kg less. For this reason, it can be easily integrated into existing checkpoints with layout or size constraints.

• Highest Belt Speed in its Class: The conveyor operates at a very fast speed of 0.2 m/s. Therefore, it maintains remarkably high throughput levels. In addition, the system helps reduce operational delay.

• Eco-Friendly Energy Efficiency: The scanner features low power consumption. Specifically, it uses 5% to 20% less power compared to alternative screening systems. Furthermore, it operates with zero vibration and a low noise level of only 60 dB.

• Advanced Compliance & Certification: The system is certified by major global security frameworks including STAC, ENAC, and IPMO. Specifically, it is fully TSA APSS v6.2 Certified. It is also qualified on the TSA CPSS Qualified Products List for base, mid, and full-size configurations.

• Intelligent Software Integration: Both models support integration with the automated object recognition software iCMORE. When integrated with iCMORE, the system supports automated recognition of prohibited items such as weapons. In addition, iCMORE is certified to ECAC APIDS Standard 1 when combined with this scanner.

Technical Specifications

• Product Name: HI-SCAN 6040 CTiX

• Manufacturer: Smiths Detection

• Country of Origin: Germany

• Device Type: Computed Tomography (CT) Carry-On Baggage Scanner

• Conveyor Speed: 0.2 m/s (highest in its class)

• Tunnel Dimensions: 620 mm (W) × 420 mm (H) / 24.4 in (W) × 16.5 in (H)

• Standard System Dimensions: 3,300 (L) × 1,670 (W) × 1,670 (H) [mm] / 129.9 (L) × 65.7 (W) × 65.7 (H) [in]

• Model S Dimensions: 3,300 (L) × 1,470 (W) × 1,624 (H) [mm] / 129.9 (L) × 57.9 (W) × 63.9 (H) [in]

• Standard System Weight: Approx. 2,450 kg (5,401 lbs)

• Model S Weight: Approx. 2,099 kg (4,628 lbs)

• Noise Level & Vibration: 60 dB with zero vibration

• Global Certifications: ECAC EDS CB C3, TSA APSS v6.2 Certified, TSA CPSS QPL, STAC, ENAC, IPMO

• Application Areas: Airports, high-security checkpoints, transport terminals, critical infrastructure

Conclusion

Implementing a compliant screening infrastructure requires technology that balances speed with absolute security verification. By providing high-quality 3D CT imagery instantly, this system removes operational bottlenecks at security gates. For example, passengers no longer need to unpack their electronic devices or liquids. Consequently, this improves inspection efficiency, operator workflow, and overall facility throughput. Furthermore, the system combines advanced CT imaging with German engineering to ensure thorough baggage inspection. Thus, it supports comprehensive inspection of carry-on baggage across Bangladesh.

Get instant stock availability and the best price for the HI-SCAN 6040 CTiX Advanced CT Carry-On Baggage Scanner in Bangladesh for your project. Contact us today to get official product quotations, bulk pricing discounts, and dedicated technical support.
