HID pivCLASS RKCL40 Price in Bangladesh – Dual Interface Reader with LCD

Description

Product Name: HID pivCLASS RKCL40 Price in Bangladesh – Dual Interface Reader with LCD

Manufacturer: HID Global

Country of Origin: USA

Product Description

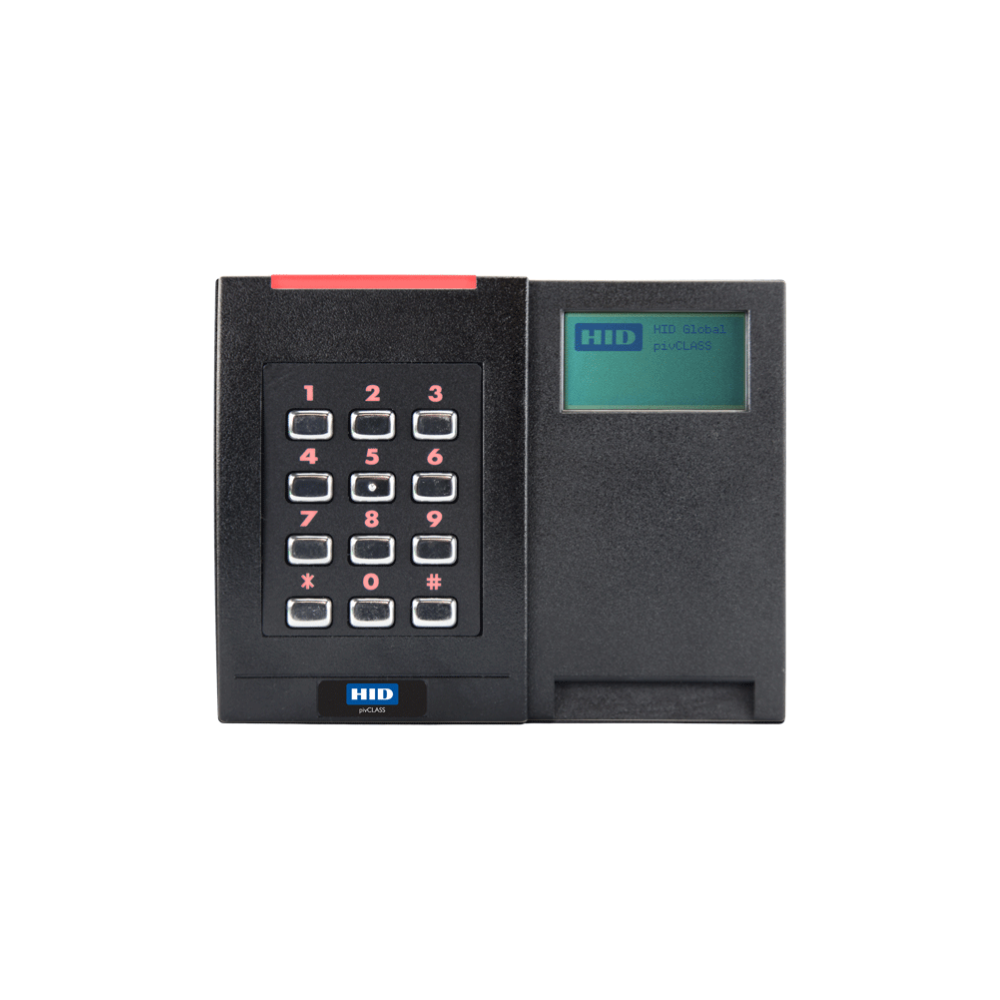

The HID pivCLASS RKCL40 is an enterprise-grade contact and contactless dual interface reader featuring an integrated LCD screen, specifically engineered by HID Global for high-security areas that demand strict compliance in zones meeting the FIPS-201 criteria for both “Controlled” and “Limited” access. When you deploy this reader in conjunction with HID Global’s pivCLASS Authentication Module (PAM) or an OSDP-compliant strong authentication controller, the system provides multi-layered validation by actively verifying that the presented card is authentic, ensuring the credential data has not been altered or manipulated, preventing security breaches from cloned cards, and confirming that the card has not been reported lost or stolen.

Smart Operating Modes

Normally, high-security facilities change authentication rules based on zones. This advanced reader adapts dynamically to your protocols through two primary deployment methods:

• CAK Mode: In Card Authentication Key (CAK) mode, the reader supports reading any PIV-based card via its contactless interface to validate the CAK certificate.

• PIV+PIN Mode: Alternatively, for higher security areas, this mode supports secure on-card matching of a user PIN. Simultaneously, it reads and validates the PIV Authentication Key certificate directly.

Key Features

• Dual Interface Reliability: First, the contact and contactless dual interfaces provide an essential hardware backup. If a card’s contactless antenna breaks, you can still read the CAK certificate through the contact slot.

• Flexible Architecture: Second, the reader easily configures into multiple data modes. It operates in standard Wiegand mode or switches to strong authentication mode using PAM or a third-party panel.

• Authentication Mode Switching: Third, when paired with a pivCLASS Authentication Module (PAM), the system supports configurable authentication mode switching via PAM integration.

• Comprehensive Legacy Support: Additionally, it maintains excellent backward compatibility with existing card populations. For example, it smoothly reads iCLASS, iCLASS SE, and standard Proximity credentials.

• Integrated User Display: Finally, the built-in LCD screen improves user interaction. It provides clear visual feedback and prompts directly at the door or gate.

Technical Specifications

• Product Name: HID pivCLASS RKCL40

• Manufacturer: HID Global

• Country of Origin: USA

• Device Type: Contact and Contactless Dual Interface Smart Card Reader with LCD

• Dimensions: 4.8” x 6.1” x 1.2” (12.2 x 15.6 x 3.0 cm)

• Typical Maximum Read Range: Up to 2” for ISO14443 A cards (depending upon environmental factors)

• 13.56 MHz Cards Supported: PIV, PIV-I, CIV, CAC, TWIC, FRAC, iCLASS SE, iCLASS SR, standard iCLASS, SE for MIFARE Classic, SE for MIFARE DESFire EV1

• Proximity Cards Supported (Legacy): HID Prox, AWID, and EM4102

• Supported Outputs (Wiegand Mode): 40 bits, 64 bits, 75 bit GSA, 128 bit UUIDs, 200 bits full FASCN

• Communication Protocols: Wiegand (Wiegand mode), HID pivCLASS protocol (PAM), or OSDP (Strong Authentication Mode)

• Compliance Framework: Engineered for FIPS-201 “Controlled” and “Limited” access criteria, supporting secure NIST SP 800-116 deployments.

• Warranty: Manufacturer warranty applies (region dependent)

Conclusion

In conclusion, the HID pivCLASS RKCL40 stands out as a premier choice for high-assurance door installations in Bangladesh. Its unique dual-interface design, clear LCD interface, and secure on-card PIN matching make multi-factor physical access authentication exceptionally reliable. Therefore, it provides the perfect balance of strict regulatory compliance and hardware redundancy for local organizations.

Moreover, this dual-interface reader aligns perfectly with international FIPS-201 security guidelines. As a result, critical government infrastructures, corporate data centers, and major financial institutions in Bangladesh prefer this model. Ultimately, it integrates smoothly into secure framework architectures requiring strict global standards.

Get instant stock availability and the best market price for the HID pivCLASS RKCL40 Dual Interface Reader with LCD in Bangladesh.
