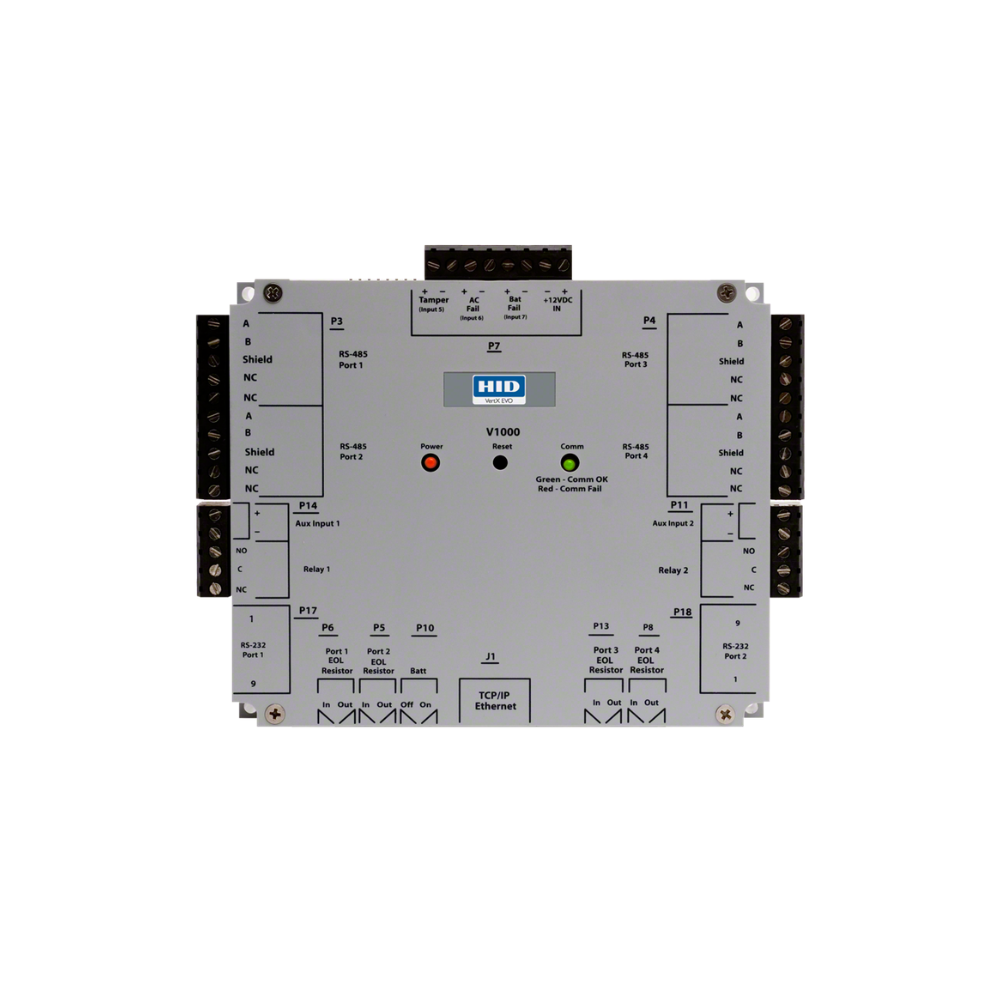

HID VertX EVO V1000 Networked Controller Price in Bangladesh

Description

Product Name: HID VertX EVO V1000 Networked Controller Price in Bangladesh

Manufacturer: HID Global

Country of Origin: USA

Product Description

The HID VertX EVO V1000 Networked Controller is a high-performance, enterprise-grade access control panel. This intelligent master controller is engineered for multi-door security management across commercial premises in Bangladesh. As a flagship component of the VertX EVO series, the V1000 delivers a highly stable infrastructure. Consequently, it allows central access control software to manage building security with extreme precision.

This advanced controller interfaces seamlessly with up to 32 remote sub-panels, including VertX V100 door interfaces, V200 input monitors, and V300 output modules. Traditionally, large installations saturate corporate networks with multiple device configurations. However, the V1000 drastically reduces this IT overhead by connecting these 32 sub-panels through a single, bandwidth-saving IP address. Furthermore, this high-performance platform increases overall uptime by managing local access decisions for up to 64 distinct card readers natively.

Additionally, the system provides exceptional offline functionality. When it is disconnected from the host software application, it continues to operate independently. In fact, it performs all real-time access decisions, prioritizes alarms, and maintains full event logging. As a result, your facility remains completely secure even during an unexpected network outage.

Key Features

• High-Density Device Capacity: Manages access control system interfaces with combinations of up to 32 distinct VertX sub-modules on a local loop.

• Massive Cardholder Database: Stores a complete access control and configuration database for up to 32 Reader Interfaces (supporting up to 64 doors) and up to 250,000 active cardholders.

• Cost-Reducing Software Independence: Enables the seamless replacement of head-end enterprise software without visiting the physical access control panels, drastically lowering system lifecycle costs.

• Intelligent Network Communication: Connects to the host and downstream peripheral devices on an industrial TCP/IP network to receive and process high-priority, real-time commands.

• Advanced Priority Alarm Reporting: Instantly reports all system activity back to the host software. Simultaneously, it categorizes supervised inputs and critical alarms across 255 priority levels.

• Ruggedized Offline Operation: Provides a fully functional offline mode when disconnected from the host application, ensuring uninterrupted credential verification and security tracking.

Technical Specifications

• Product Name: HID VertX EVO V1000

• Manufacturer: HID Global

• Country of Origin: USA

• Model and Part Number: EVO V1000 (71000BEP0N01A)

• Communication Ports: Ethernet (10/100 Mbps) and RS-485 (Half Duplex)

• Power Requirements: Powered by a local power supply (12 or 24 VDC)

• Maximum Operating Current: 210 mA @ 12-24 VDC

• Average Operating Current: 625 mA @ 12 VDC (With two connected iCLASS readers)

• Relay Contact Rating (Dry Output): 2A @ 30 VDC (UL Certified Maximum) or up to 5A @ 30 VDC maximum current capacity.

• Supervised Inputs Power: Maximum 0.025W (5mA sink, 5V nominal) 0 to +5 VDC reference.

• Enclosure and Mounting: Wall-mountable using four screws. For full UL compliance, it can be installed inside a locking customer-supplied enclosure.

• Weight: 12.4 oz (0.35 kg)

• Dimensions: 5.8″ W x 4.825″ H x 1.275″ D (147.32 mm x 122.55 mm x 32.38 mm)

• Operating Environment: 32° to 122° F (0° to 50° C) with 5% to 95% relative, non-condensing humidity.

• Manufacturer Warranty: Warrantied against defects in materials and workmanship for 18 months from factory dispatch.

Cable Distance Specifications

• Ethernet Port: Maximum 300 feet (100 m) to host using Cat-5 unshielded twisted pair cable (ALPHA 9504C or ALPHA 9405F).

• RS-485 Sub-Network: Maximum 4,000 feet (1,219 m) to downstream interface modules using Belden 3105A, 22 AWG twisted pair, shielded 100Ω cable.

• Input Circuits: Maximum 500 feet (150 m), 2-conductor, shielded using ALPHA 1292C (22 AWG) or Alpha 2421C (18 AWG).

• Output Circuits: Maximum 500 feet (150 m), 2-conductor, using ALPHA 1172C (22 AWG) or Alpha 1897C (18 AWG).

Conclusion

In conclusion, the HID VertX EVO V1000 stands out as an industrial-grade master controller for commercial entities in Bangladesh. It effectively bridges the operational gap between multi-door physical access management and single-IP network efficiency. For instance, system integrators can deploy it to control VertX V100 reader modules, V200 zone panels, and V300 automation relays through a single unified hub. In all deployment scenarios, the V1000 offers unparalleled database storage, clean network overhead mitigation, and massive system scalability.

Moreover, its native ability to process high-priority alarms with 255 priority ratings makes it a premier choice for modern security professionals. This is especially true for corporate security teams who require an uncompromised, decentralized building framework. By choosing genuine HID Global hardware, you ensure that your facility infrastructure is backed by HID Global’s proven access control architecture and enterprise-grade engineering.

Secure Your Facility Today: Contact us now to check genuine stock availability and get the competitive market price for the HID VertX EVO V1000 Networked Controller in Bangladesh.
