HID VertX EVO V2000 Networked Controller Price in Bangladesh

Description

Product Name: HID VertX EVO V2000 Networked Controller Price in Bangladesh

Manufacturer: HID Global

Country of Origin: USA

Product Description

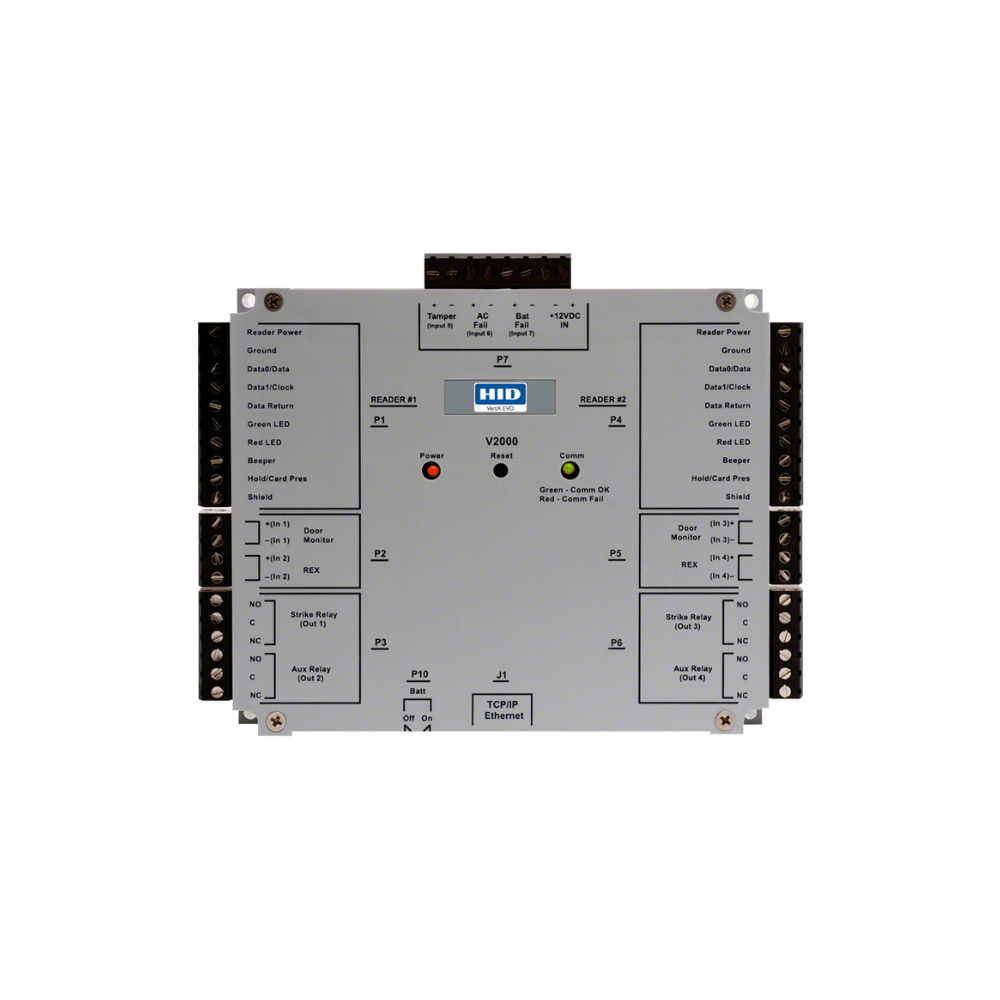

The HID VertX EVO V2000 Networked Controller is an enterprise-grade, edge-based IP access control panel. This intelligent two-reader controller delivers localized processing and host communication directly at the entryway. It is engineered specifically for modern, high-security infrastructures in Bangladesh. The V2000 provides independent management for up to two doors using single readers. Alternatively, it can manage a single door using an advanced in/out reader configuration.

As a single-board solution, the VertX EVO V2000 minimizes physical system footprint. It also significantly reduces field wiring costs. The panel connects directly to standard corporate IT networks over TCP/IP. This eliminates the need for separate upstream master controllers. Natively, the hardware features two monitored inputs per door for door status and Request-to-Exit (REX) switches. It also includes two dedicated outputs per door for locking hardware and auxiliary signaling. To maximize system integrity, the panel features built-in inputs to monitor AC power loss, low battery, and enclosure tamper detection.

Equipped with a powerful local database, the V2000 eliminates system latency and guarantees continuous facility safety. The device automatically triggers its offline operational mode if communication with the host software is lost. While offline, it continues to execute user access decisions and apply predefined schedules. It also retains transaction logs safely within its secure event buffer. Consequently, your security remains entirely unaffected by unexpected corporate network downtime.

Key Features

• Localized Edge Processing: Manages all real-time access decisions, complex inputs, and output lock controls for up to two doors natively.

• Massive Cardholder Database: Stores a complete, unalterable configuration database supporting up to 250,000 active cardholders.

• Flexible Reader Interface: Features built-in hardware interfaces to support up to two standard Wiegand or Clock-and-Data readers.

• Infrastructure Cost Savings: Enables seamless migration or complete replacement of central software without requiring manual, on-site hardware panel visits.

• Prioritized Alarm Streaming: Transmits real-time activity logs back to the central host. It easily classifies supervised inputs and alarms across 255 priority ratings.

• Comprehensive Diagnostics Input: Includes dedicated onboard circuitry to track critical system flags like AC power failure, battery status, and tamper alerts.

Technical Specifications

• Product Name: HID VertX EVO V2000

• Manufacturer: HID Global

• Country of Origin: USA

• Model and Part Number: EVO V2000 (72000BEP0N01A)

• Communication Ports: Ethernet (10/100)

• Reader Interfaces: Interface for two Wiegand or Clock-and-Data readers (12VDC, 250mA output per reader port)

• Power Requirements: Powered by a local power supply (12 or 24 VDC)

• Maximum Operating Current: 1000mA @ 12-24VDC

• Average Operating Current: 625mA @ 12VDC (With two connected iCLASS readers)

• Relay Outputs: Rated at 30VDC, 2Amp, resistive (Configurable for 2 door strikes and 2 auxiliary devices such as door held/forced alarm, alarm shunt, or host offline signaling)

• Supervised Inputs Power: Maximum 0.025W (5mA sink, 5V nominal) 0 to +5VCD Ref

• Input Infrastructure: 2 Door Monitors, 2 REX Switches, 1 AC Fail, 1 Battery Fail, and 1 Enclosure Tamper.

• Enclosure and Mounting: Wall-mountable using four screws. For UL compliance, one or more gateways can be mounted inside a locking, customer-supplied NEMA-4 rated enclosure.

• Weight: 12.4 oz (0.35 kg)

• Dimensions: 5.8″ W x 4.825″ H x 1.275″ D (147.32 mm x 122.55 mm x 32.38 mm)

• Operating Environment: 32° to 120° F (0° to 49° C) with an operating humidity of 5% to 85% relative, non-condensing.

• Manufacturer Warranty: Warrantied against defects in materials and workmanship for 18 months from factory dispatch.

Cable Distance Specifications

• Ethernet Port: Maximum 300 feet (100 m) to the network switch using standard Cat-5 unshielded twisted pair infrastructure (ALPHA 9504C or ALPHA 9405F).

• Wiegand / Clock-and-Data Interface: Maximum 500 feet (150 m) to readers using 9-conductor overall shielded 22 AWG cable (ALPHA 1299C).

• Input Circuits: Maximum 500 feet (150 m) using 2-conductor shielded cables, optioned in 22 AWG (ALPHA 1292C) or 18 AWG (Alpha 2421C).

• Output Circuits: Maximum 500 feet (150 m) using 2-conductor field wiring, optioned in 22 AWG (ALPHA 1172C) or 18 AWG (Alpha 1897C).

Conclusion

In conclusion, the HID VertX EVO V2000 stands out as a highly efficient, single-board IP edge access solution for modern commercial buildings in Bangladesh. By placing credential processing, input logic, and power monitoring directly at the door level, it eliminates structural central bottlenecks. It also offers rapid transaction speeds. Whether deployed for an executive corporate floor or a high-security banking facility, the V2000 ensures maximum hardware scalability. It also provides a streamlined IT footprint and a low total cost of ownership.

Moreover, its built-in infrastructure protections and native 250,000 user memory make it a gold standard among system integrators. Investing in genuine HID Global hardware guarantees excellent building protection. Your infrastructure will be backed by HID’s proven open access architecture and enterprise-grade hardware engineering.

Secure Your Facility Today: Contact us now to check genuine stock availability and get the competitive market price for the HID VertX EVO V2000 Networked Controller in Bangladesh.
