HID VertX V100 – Door/Reader Interface Price in Bangladesh

Description

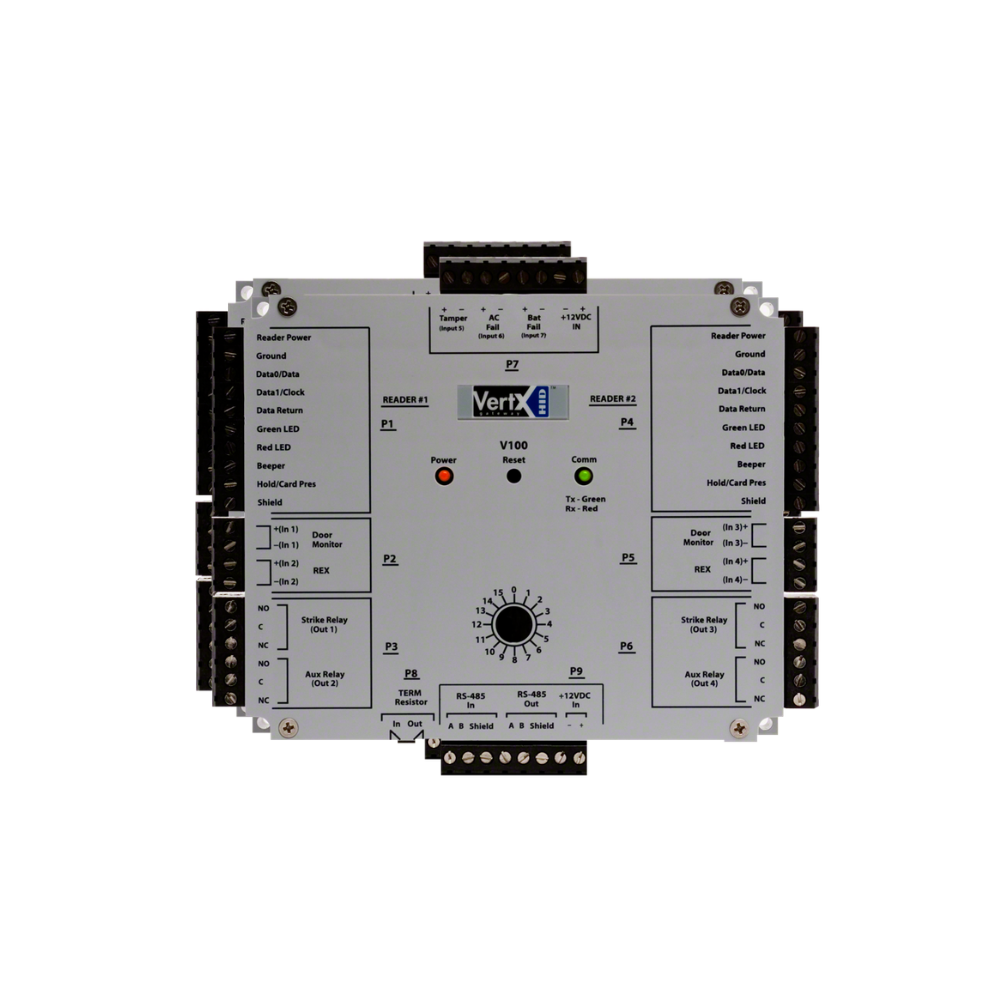

Product Name: HID VertX V100 – Door/Reader Interface Price in Bangladesh

Manufacturer: HID Global

Country of Origin: USA

Product Description

The HID VertX V100 Door/Reader Interface Price in Bangladesh is a key consideration for enterprise access control setups. It is ideal for enterprise security infrastructures requiring reliable monitoring and expansion capabilities. This advanced interface connects two access control card readers via Wiegand or Clock-and-Data interface to control either one or two doors. The module features on-board flash memory, allowing program updates to be downloaded easily via the network.

For full operations, the V100 connects to the V1000 intelligent controller through a high-speed RS-485 network. This architecture minimizes the impact on corporate LANs by using only one TCP/IP address for every 32 interfaces and by handling low-level transactions on the RS-485 network. Furthermore, the V100 provides a complete and fully featured hardware/firmware infrastructure for access control software host systems.

Key Features

• Intelligent Host Communication: Connects to the V1000 controller via high-speed RS-485 and receives and processes real-time commands smoothly.

• Supervised Input Monitoring: Actively reports supervised inputs and sends all operational activity logs back to the V1000 controller.

• Off-Line Decision Making: Efficiently processes off-line access control decisions based on the pre-configured facility code.

• Rugged Enclosure Design: An attractive polycarbonate enclosure protects internal components from physical damage.

• Clear Interface Labeling: All connections and LED indicators are fully identified by silk-screened nomenclature on the cover for easy maintenance.

Technical Specifications

• Product Name: HID VertX V100

• Manufacturer: HID Global

• Country of Origin: USA

• Device Type: Door / Reader Interface (Two Readers / Two Doors)

• Power Supply Requirements: 60 mA @ 9-18 VDC (with no readers connected). Requires 600 mA @ 9-18 VDC when supplying max 500 mA to two readers.

• Maximum Cable Distance (RS-485): 4000 feet (1220 m) to host using Belden 3105A, 22AWG twisted pair, shielded 100Ω cable.

• Maximum Cable Distance (Wiegand): 500 feet (150 m) to reader using ALPHA 1299C 22AWG, 9-conductor shielded cable.

• Input / Output Circuits Distance: 500 feet (150 m) using recommended ALPHA/Alpha 2-conductor cables.

• Certifications: UL 294 and UL 1076 Recognized Component (US), CSA 205 (Canada), FCC Class A, EMC (Canada, CE Mark, C-Tick), EN 50130-4.

• Weight: 12.4 oz (0.35 kg)

• Dimensions: 5.8″ W x 4.825″ H x 1.275″ D (147.32 mm x 122.55 mm x 32.38 mm)

Conclusion

In conclusion, the HID VertX V100 stands out as a premier choice for legacy and modern security infrastructure management in Bangladesh. Its outstanding scalability and hardware-level stability make physical access control deployment simple and convenient. For organizations seeking a reliable door interface module, it provides the perfect balance of network optimization and operational flexibility.

This interface module enhances system security through certified hardware compliance and real-time host reporting. Therefore, it is highly suitable for commercial buildings, corporate offices, educational institutions, healthcare facilities, and government organizations in Bangladesh. It is ideally suited for integration into any secure access control framework looking for robust dual-door monitoring and industry-standard Wiegand infrastructure.

Get instant stock availability and the best market price for the HID VertX V100 door/reader interface module in Bangladesh.
