HP-SE100100C X-Ray Inspection System

Description

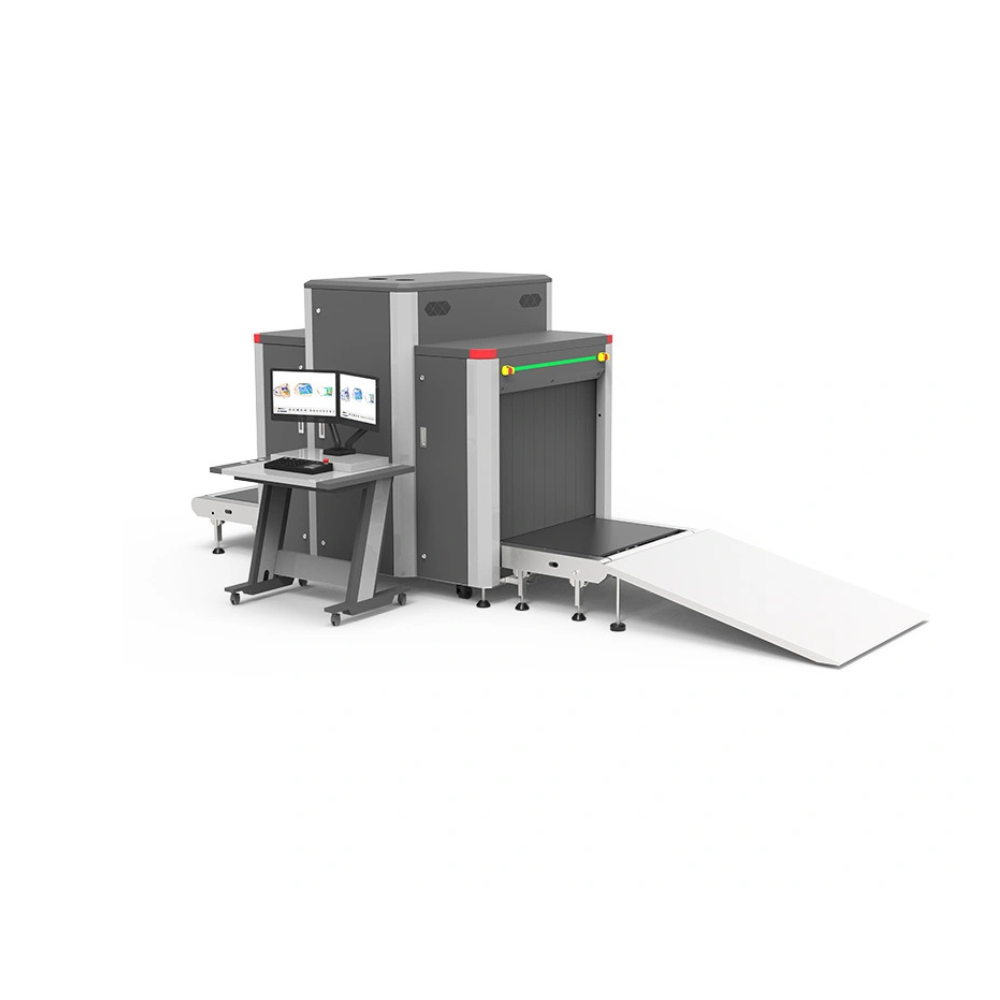

Product Name: HP-SE100100C X-Ray Inspection System

Manufacturer: Safeagle

Country of Origin: China

Product Description

The  HP-SE100100C is a state-of-the-art, large-scale X-Ray Inspection System. It is engineered for cargo, baggage, and parcel screening applications at transportation, logistics, and security facilities. Specifically, this high-performance scanner features a generous 1001 mm × 1001 mm tunnel size. Consequently, it serves as an ideal solution for cargo screening, heavy baggage, and large parcel inspection.

Additionally, this heavy-duty system is highly optimized for border crossings, railway stations, logistics companies, and military installations. It features a reliable conveyor system with a bidirectional belt speed of 0.23 m/s. It also safely supports a maximum conveyor load capacity of 250 kg. Therefore, it effectively balances rapid threat detection with smooth checkpoint traffic flow.

Furthermore, the HP-SE100100C integrates an L-shaped dual-energy detector array and a powerful 140kV generator. This allows the system to deliver real-time, high-quality imaging processing with excellent material clarity. Meanwhile, its switchable 4/7-colors imaging technology enables operators to view screened objects with high precision. As a result, it significantly enhances modern security screening workflows in high-traffic hubs.

Key Features

• Advanced 7-Colors Material Identification: The system offers advanced switchable 4 and 7-colors imaging technology. Therefore, it enables operators to achieve optimal material identification. Each color precisely corresponds to a specific range of an object’s atomic number.

• Intelligent Threat & Hazard Detection: It features a built-in Zeff-scan function to highlight potential threats in real time. For instance, it provides automated assistant detection for hazardous liquids (Zeff 6), explosives, and drugs (Zeff 7, 8, 9). Consequently, it assists operators in identifying suspicious contraband more effectively.

• Dual-Energy Material Discrimination: Powered by dual-energy technology, the scanner color-codes hidden objects based on their composition. For example, metallic items like guns or knives appear in blue. Conversely, organic materials like plastics, clothing, or currency are displayed in orange.

• Flexible Dual-Screen View Management: The machine supports multiple split-screen and full-screen options for optimal viewing. Moreover, operators can customize the color mode of the switchable main screen and auxiliary screen independently.

• Specialized Scanning Modes: Built for comprehensive inspection, the system includes innovative Thin Object Scanning and Splicing Scanning tools. These specialized software functions assist operators in examining complex or densely packed items more effectively.

• Reliable Generator with 100% Duty Cycle: Driven by a standard 140kV generator, it achieves a 40 AWG wire resolution and 36 mm steel penetration. Furthermore, it operates on a 100% duty cycle with no warm-up procedure required, which maximizes active security uptime.

Technical Specifications

• Product Name: HP-SE100100C

• Manufacturer / Origin: Safeagle / China

• Tunnel Dimensions (W × H): 1001 mm × 1001 mm (39.4” × 39.4”)

• Overall Dimensions (L × W × H): 3036 mm × 1420 mm × 2015 mm

• Wire Detectability: 40 AWG

• Steel Penetration: 36 mm Steel Typical

• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical

• X-Ray Generator (Voltage / Current): 140kV Standard (160kV Optional) / 0.7 mA

• Beam Direction: Diagonally Upward

• Detector Type: L-Shaped Array (Dual-energy)

• Cooling System: Sealed Oil Bath with Forced Air

• Duty Cycle: 100% (No Warm-Up Procedure Required)

• Conveyor Speed: 0.23 m/s Bidirectional

• Maximum Conveyor Capacity: 250 kg

• Operating Temperature: 0°C to 40°C (32ºF to 104°F)

• Storage Temperature: -20°C to 60°C (-4ºF to 140ºF)

• Operating Humidity: Up to 95% Non-Condensing

• Power Requirements: 220VAC ±10%, 50/60Hz, 10A Max

• Application Areas: Seaports, airports, customs cargo terminals, major railway hubs, large logistics centers, warehouse complexes, and military checkpoints.

Conclusion

For large cargo terminals and busy transit infrastructure in Bangladesh, managing heavy parcel volumes without sacrificing security is a constant challenge. Fortunately, the Safeagle HP-SE100100C Large X-Ray Screening System addresses these operational requirements through advanced dual-energy imaging and material discrimination technologies.

Thus, its intelligent Zeff-scan auto-highlighting assists operators in identifying suspicious or prohibited items easily. This makes it an ideal choice for Bangladeshi customs checkpoints, logistics centers, and high-risk government installations.

In addition, its 250 kg conveyor capacity and bidirectional scanning facilitate rapid freight screening. These specialized imaging tools streamline operator workflows and eliminate security bottlenecks. Therefore, the Safeagle HP-SE100100C stands out as a highly reliable, heavy-duty X-ray inspection asset for critical screening facilities in Bangladesh.

Get instant stock availability and the best price for the Safeagle HP-SE100100C Large X-Ray Screening System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
