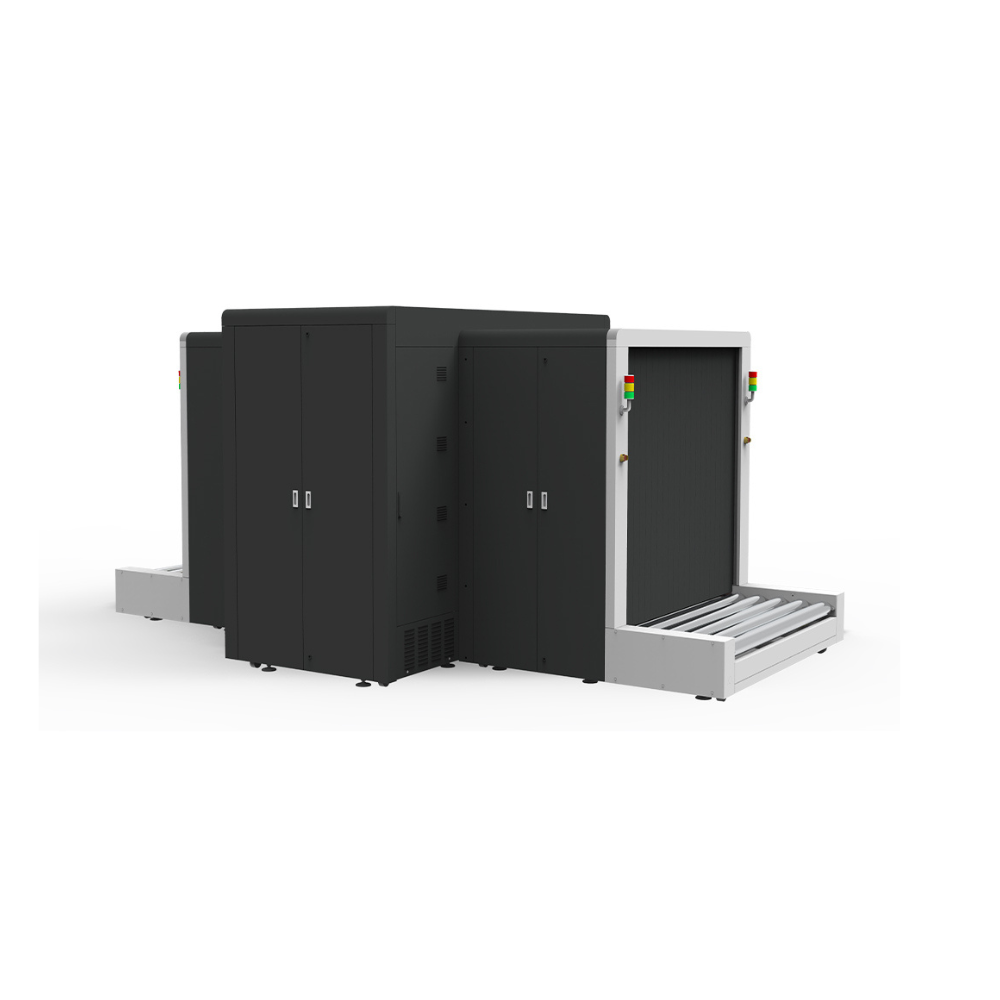

HP-SE180180C X-Ray Cargo Inspection System

Description

Product Name:  HP-SE180180C X-Ray Cargo Inspection System

Manufacturer: Safeagle

Country of Origin: China

Product Description

The HP-SE180180C is a high-penetration, large-scale X-Ray Inspection System. It is specifically engineered for high-efficiency security screening of large and palletized cargo in logistics hubs, customs, and industrial warehouses. With an expansive 1810 mm × 1814 mm tunnel size, it easily accommodates bulk cargo and oversized freight. Consequently, it serves as an ideal solution for heavy-duty freight inspection.

Additionally, this industrial scanner features a fully motorized conveyor system for automated cargo handling. It successfully supports a massive conveyor maximum load capacity of 2000 kg. Meanwhile, its 418 mm low conveyor height ensures smooth loading and unloading of heavy pallets. Therefore, it effectively improves operational workflows while reducing manual labor intensity.

Furthermore, the system integrates a superior 200kV generator and a dual-energy L-shaped detector array. This combination allows the scanner to deliver real-time, high-quality images with excellent material clarity. It also offers advanced switchable 4/7-colors imaging technology. As a result, it significantly enhances visibility and material discrimination during demanding security operations.

Key Features

• Advanced 7-Colors Material Identification: The system offers advanced switchable 4 and 7-colors imaging technology. Therefore, it enables operators to achieve optimal material identification. Each color precisely corresponds to a specific range of an object’s atomic number.

• Intelligent Threat & Hazard Detection: It features specialized software functions to highlight potential threats in real time. For instance, it provides automated assistant detection for hazardous liquids (Zeff 6), explosives, and drugs (Zeff 7, 8, 9). Consequently, it assists operators in identifying suspicious contraband more effectively.

• Dual-Energy Material Discrimination: Powered by dual-energy technology, the scanner color-codes hidden objects based on their composition. For example, metallic items appear in blue. Conversely, organic materials are displayed in orange, allowing instant discrimination among organic, inorganic, and mixed materials.

• High-Voltage Penetration Capabilities: Driven by a superior 200kV generator, it achieves a 36 AWG wire resolution and 38 mm steel penetration. Furthermore, this high penetration enables it to inspect dense or shielded bulk cargo without compromising image quality.

• Specialized Scanning Modes: Built for comprehensive freight inspection, the system includes innovative Thin Object Scanning and Splicing Scanning tools. These specialized software functions assist operators in examining complex or densely packed items more effectively.

• Continuous Operation with 100% Duty Cycle: The machine operates on a 100% duty cycle with no warm-up procedure required. Moreover, its bidirectional conveyor system operates at a steady belt speed of 0.23 m/s, maximizing active screening uptime.

Technical Specifications

• Product Name: HP-SE180180C

• Manufacturer / Origin: Safeagle / China

• Tunnel Dimensions (W × H): 1810 mm × 1814 mm

• Overall Dimensions (L × W × H): 5254 mm × 2930 mm × 2445 mm

• Wire Detectability: 36 AWG

• Steel Penetration: 38 mm Steel Typical

• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical

• X-Ray Generator Voltage: 200kV (Superior)

• Beam Direction: Diagonally Sideward

• Detector Type: L-Shaped Array (Dual-energy)

• Cooling System: Sealed Oil Bath with Forced Air

• Duty Cycle: 100% (No Warm-Up Procedure Required)

• Conveyor Speed: 0.23 m/s Bidirectional

• Maximum Conveyor Capacity: 2000 kg

• Low Conveyor Height: 418 mm

• Operating Temperature: 0°C to 40°C (32ºF to 104°F)

• Storage Temperature: -20°C to 60°C (-4ºF to 140ºF)

• Operating Humidity: Up to 95% Non-Condensing

• Power Requirements: 220VAC ±10%, 50/60Hz, 10A Max

• Application Areas: Seaports, international airports, customs cargo terminals, heavy logistics hubs, large air freight complexes, and industrial warehouses.

Conclusion

For large-scale logistics terminals and busy port infrastructure in Bangladesh, screening oversized freight without causing delays is a major challenge. Fortunately, the HP-SE180180C X-Ray Cargo Inspection System addresses these operational requirements through advanced dual-energy imaging and material discrimination technologies.

Thus, its powerful 200kV generator and intelligent threat auto-highlighting assist operators in identifying suspicious or prohibited items easily. This makes it an ideal choice for Bangladeshi customs checkpoints, seaport cargo zones, and high-volume distribution hubs.

In addition, its massive 2000 kg conveyor capacity and low-profile deck facilitate rapid palletized screening. These specialized imaging tools successfully streamline operator workflows and eliminate freight screening bottlenecks. Therefore, the Safeagle HP-SE180180C stands out as a highly reliable, heavy-duty X-ray inspection asset for critical cargo facilities in Bangladesh.

Get instant stock availability and the best price for the  HP-SE180180C X-Ray Cargo Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
