HP-SE6040C X-Ray Baggage Scanner

Description

Product Name:  HP-SE6040C X-Ray Baggage Scanner

Manufacturer: Safeagle

Country of Origin: China

Product Description

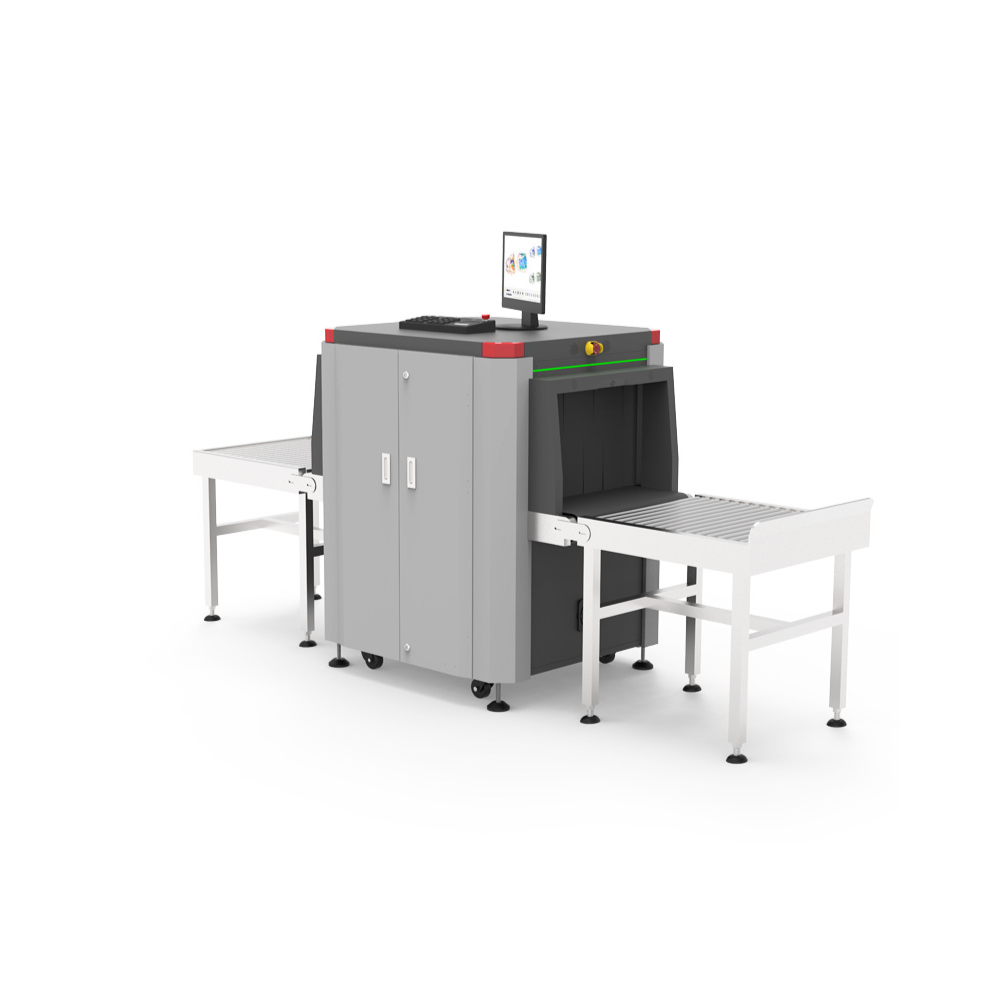

The HP-SE6040C is a compact yet powerful X-ray baggage scanner designed to deliver maximum performance in space-constrained environments. It is specifically engineered to ensure high-level site security at border crossings, railway stations, shopping malls, and luxury hotels. Boasting a versatile 624 mm × 429 mm tunnel size, this system easily accommodates standard hand luggage, backpacks, and medium-sized parcels. Consequently, it serves as an ideal solution for facilities requiring top-quality security equipment without a massive physical footprint.

Additionally, this high-performance scanner features an advanced bidirectional conveyor system capable of handling a maximum load capacity of 165 kg. Moving at a steady belt speed of 0.23 m/s, it accelerates passenger throughput while maintaining strict inspection standards. Furthermore, the conveyor’s reliable architecture minimizes downtime during peak hours. Therefore, it effectively improves operational workflows and security efficiency across busy public checkpoints.

Furthermore, the system integrates a 140kV X-ray generator alongside an L-shaped dual-energy detector array to output real-time, high-resolution images. This layout is enhanced by switchable 4/7-colors imaging technology and multiple split-screen or full-screen viewing options. Operators can fully customize the color modes of the switchable main and auxiliary screens. As a result, it significantly enhances threat visibility and material discrimination during demanding, continuous screening procedures.

Key Features of

• Advanced Switchable 7-Colors Imaging: The scanner offers innovative switchable 4 and 7-colors imaging technology. Therefore, it enables users to achieve optimal material identification. Each color precisely corrects to a specific range of an object’s atomic number, making complex bags easier to analyze.

• Intelligent Zeff-Scan Threat Highlights: Integrated with an intelligent Zeff-scan function, the software auto-highlights potential explosive and narcotic threats in real time. It screens both liquid and solid contraband based on atomic numbers (Zeff 7, 8, 9). Consequently, it assists operators in identifying suspicious materials more effectively.

• Dual-Energy Material Separation: Powered by dual-energy technology, the machine isolates hidden objects inside bags and color-codes them based on material composition. For instance, metallic threats like guns, bullets, and knives appear in blue. Conversely, organic materials like plastics, cloth, or currency display in orange.

• High-Precision Wire Resolution: Driven by a reliable 140kV generator, the system achieves an outstanding 40 AWG wire detectability and 36 mm steel penetration. Furthermore, this sharp spatial resolution allows security staff to detect thin or fine wires hidden deep within dense personal electronic items.

• Specialized Scanning and Splicing Tools: Built for comprehensive threat detection, the software includes advanced Thin Object Scanning and Splicing Scanning capabilities. These specialized tools prevent threats from being hidden in thin linings, ensuring that operators can inspect complex bag structures without missing anomalies.

• Continuous Operation with 100% Duty Cycle: The machine operates on a 100% duty cycle with no warm-up procedure required. Moreover, its diagonally upward beam direction and sealed oil bath cooling system keep the scanner running seamlessly without overheating during long shifts.

Technical Specifications

• Product Name: HP-SE6040C

• Manufacturer / Origin: Safeagle / China

• Tunnel Dimensions (W × H): 624 mm × 429 mm

• Overall Dimensions (L × W × H): 1499 mm × 947 mm × 1340 mm

• Wire Detectability: 40 AWG

• Steel Penetration: 36 mm Steel Typical

• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical

• X-Ray Generator Voltage / Current: 140kV / 0.7 mA

• Beam Direction: Diagonally Upward

• Detector Type: L-Shaped Array (Dual-energy)

• Cooling System: Sealed Oil Bath with Forced Air

• Duty Cycle: 100% (No Warm-Up Procedure Required)

• Conveyor Speed: 0.23 m/s Bidirectional

• Maximum Conveyor Capacity: 165 kg

• Operating Temperature: 0°C to 40°C (32ºF to 104°F)

• Storage Temperature: -20°C to 60°C (-4ºF to 140ºF)

• Operating Humidity: Up to 95% Non-Condensing

• Power Requirements: 220VAC ±10%, 50/60Hz, 10A Max

• Application Areas: Airport checkpoints, railway and metro stations, government buildings, border crossings, commercial shopping malls, corporate offices, and hotels.

Conclusion

For public venues, commercial spaces, and transit infrastructure in Bangladesh, maintaining high security without creating massive queues is a daily operational challenge. Fortunately, the Safeagle HP-SE6040C X-Ray Baggage Scanner addresses these demanding requirements through advanced dual-energy imaging and real-time Zeff-scan material identification.

Thus, its precise 140kV generator and intelligent threat auto-highlighting assist operators in identifying dangerous contraband or hidden metallic weapons instantly. This makes it an ideal choice for Bangladeshi shopping malls, metro stations, corporate headquarters, and high-end hotel lobbies.

In addition, its compact dimensions and robust 165 kg conveyor capacity facilitate rapid hand-baggage screening in limited spaces. These specialized imaging configurations successfully streamline security workflows and eliminate passenger congestion bottlenecks. Therefore, the Safeagle HP-SE6040C stands out as a highly reliable, high-performance X-ray screening asset for critical checkpoints in Bangladesh.

Get instant stock availability and the best price for the Safeagle HP-SE6040C X-Ray Baggage Scanner in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
