Description

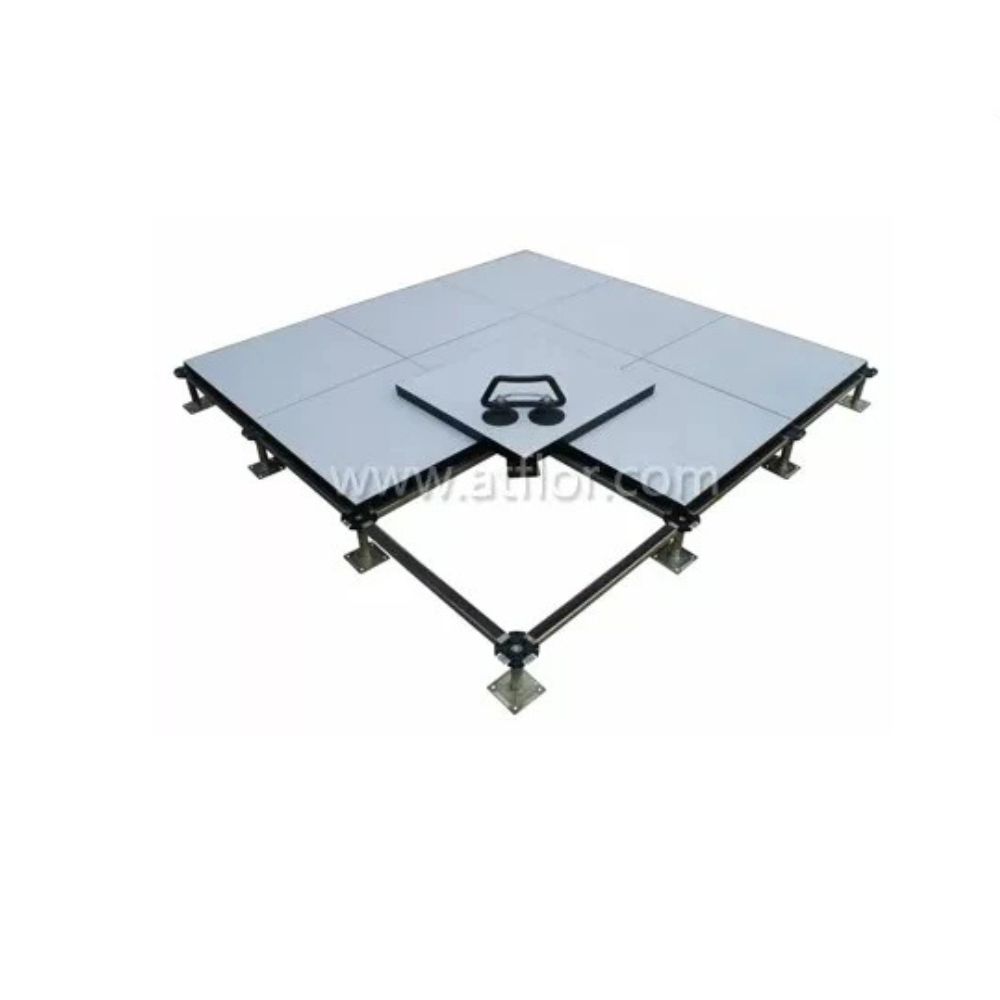

Product Name: HPL Coated Wood Core Raised Access Floor System in Bangladesh
Manufacturer: Atflor
Product Overview
The HPL Coated Wood Core Raised Access Floor System (Product Types: FS440, FS662, FS800, and FS1000) features a particle board core with PVC/ABS edge trim, sound-proof properties, and customizable HPL top surface finishes available in various colors. Built to deliver high dimensional precision, strong structural loading ability, and shockproof performance, it provides an adaptable raised-floor solution for computer rooms, control rooms, and modern professional environments.
Key Features
-
Particle Board Core Construction: Features a 30mm or 38mm thick particle board core with PVC/ABS covered four edges, steel or aluminum bottom plates, and flexible HPL surface finish compatibility.
-
Versatile Surface Finish Compatibility: Designed with outlet mating and an elegant appearance tailored for paving ceramic, granite, or various HPL tile color options.
-
Adjustable Pedestal System: Utilizes a die-casting steel structure pedestal with a top plastic gasket and adjustable height configurations ranging from 70mm to 1500mm, with or without square tube stringers for system stability.
-
Fire & Structural Performance: Features B1 fire performance, along with specified concentrated load, impact load, and mechanical performance across various model tiers.
-
Access & Wiring Utility: Designed for assembly agility, providing ample space for large wire and cable management underneath the raised floor infrastructure.
Characteristic Specifications
-
Panel Composition: Particle board core, PVC/ABS edge trim, steel/aluminium bottom plate, and customizable HPL top tiles (available in multiple color choices).
-
Accessory Setup: Die-casting steel pedestal structure with plastic gasket and square tube stringer options (535 × 20 × 30 mm).
-
Pedestal Height Options: Configurable for finished floor heights (FFH) up to 600mm, 700mm to 900mm, and 1000mm to 1500mm with custom height capabilities.
-
Application Scope: Suited for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade office spaces requiring reliable underfloor cable management and raised-floor infrastructure.
Technical Specification
| Component / Parameter | FS440 | FS662 | FS800 | FS1000 |
| Panel Size | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ |
| Fire Performance | B1 | B1 | B1 | B1 |
| Concentrated Load (lb) | $\ge 440$ | $\ge 662$ | $\ge 800$ | $\ge 1000$ |
| Impact Load (N) | $\ge 1960 N$ | $\ge 2950 N$ | $\ge 3560 N$ | $\ge 4450 N$ |
Note: Specifications follow the manufacturer’s supplied information. Users should verify specific load ratings, dimensional configurations, and applicable standards with the original manufacturer datasheet.
Conclusion
The HPL Coated Wood Core Raised Access Floor System combines particle board construction with customizable HPL tile color options, B1 fire performance, and specified load parameters across the FS440 to FS1000 series. Featuring an adjustable steel pedestal structure and extensive wire management capacity, it provides a reliable raised-floor solution for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade office spaces.
