Industrial Medium Enterprise Environment Monitoring System — E-5D-IND

Description

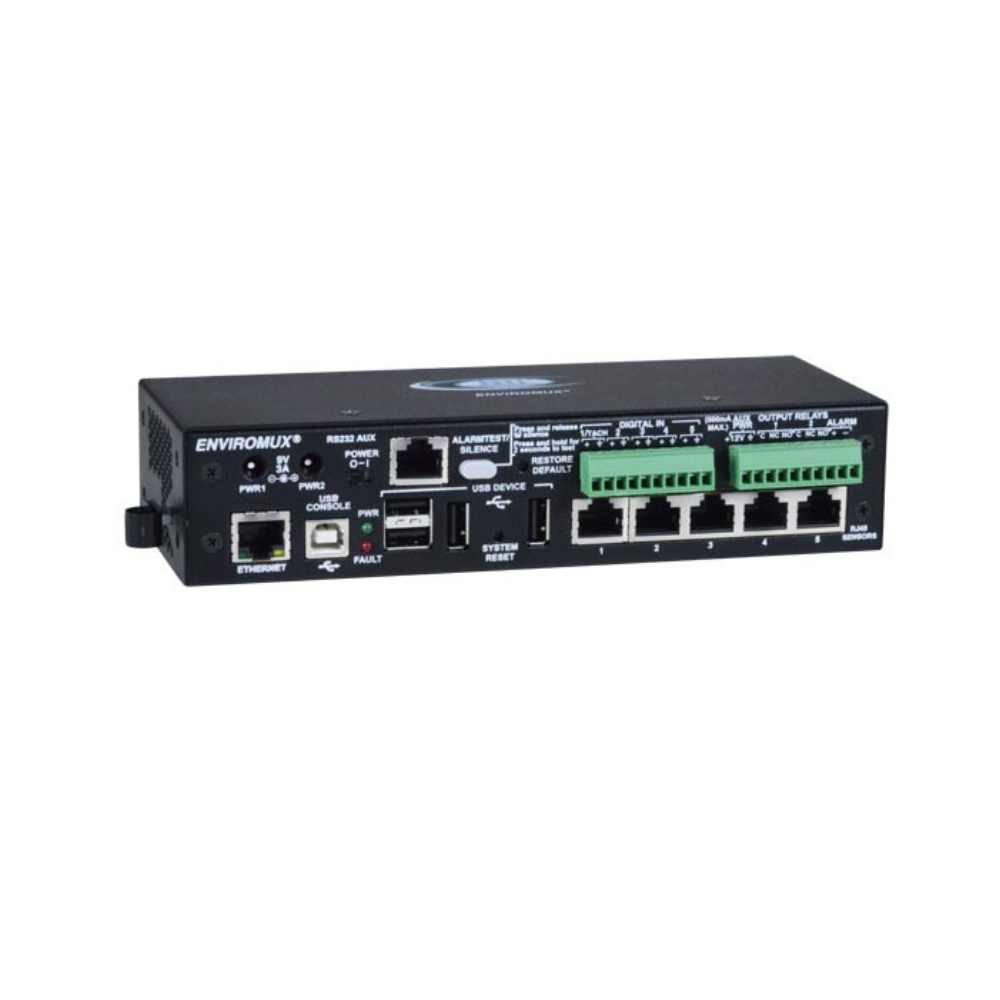

Product Name: Industrial Medium Enterprise Environment Monitoring System — E-5D-IND

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The ENVIROMUX® E-5D-IND is an enterprise-grade environment monitoring system (EMS) specifically designed for industrial applications requiring operation in higher temperature ranges. It provides continuous monitoring of critical conditions including temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor reading deviates from a configurable threshold, the system triggers immediate alerts via email, LEDs, alarm beacon, siren, web page, SNMP, voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).

Key Features

• Industrial-Grade Thermal Range: Engineered for harsh environments, this model supports an extended operating temperature range of 32 to 176°F (0 to 80°C).

• Integrated & Scalable Sensing: The system includes two internal sensors (temperature and humidity) and supports five external configurable sensors, five digital input sensors, and two output relays for control of external devices.

• Smart Alerting & Logic: Configure up to 50 events and 20 “Smart Alerts” using complex event combinations. The system allows for the execution of SSH commands upon event triggers to perform soft shutdowns or reboots of machines.

• Cascading Capability: Supports cascading of up to five compatible ENVIROMUX systems (one master and four slave units) via Ethernet for centralized monitoring through a single web interface.

• Advanced Security: The system supports high-security protocols including HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, and AES 256-bit encryption. Access is managed via 16-character username/password authentication with restricted account rights.

• IP Camera Integration: Integrates with NTI’s IP network cameras to provide live views alongside environmental data, with the capability to trigger snapshots based on programmed events.

Technical Specifications

• Power Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. Power consumption is 15W.

• Internal Sensors:

  • Temperature: 32 to 176°F (0 to 80°C) with an accuracy of ±0.72°F (±0.40°C).

  • Humidity: 20% to 80% relative humidity at 32 to 176°F (0 to 80°C) with ±3% accuracy.

• Digital I/O: 5 screw terminal pairs for potential-free dry contact devices and 2 potential-free output relays.

• Connectivity: 5 RJ45 sensor ports, 1 × 10/100Base-T Ethernet port, 4 × USB Type-A ports, 1 × USB Type-B console port, 1 × RS232 AUX port, and 1 Alarm port (supports alarm beacon or siren).

• Dimensions: 7.88″ x 3″ x 1.75″ (200x76x44 mm).

• Operating Environment: Temperature 32 to 176°F (0 to 80°C). Operating relative humidity is 15% to 90% non-condensing.

• Reliability: MTBF of 170,250 hours. CE and RoHS compliant with a 2-year warranty.

Conclusion

Dream Technologies BD is a premier provider of NTI environmental monitoring solutions in Bangladesh. We offer professional guidance and technical support to help you deploy the E-5D-IND in your industrial sites or mission-critical facilities. Protect your assets with our expert integration services.
